Turn Signal and Hazard Warning Light: Notes

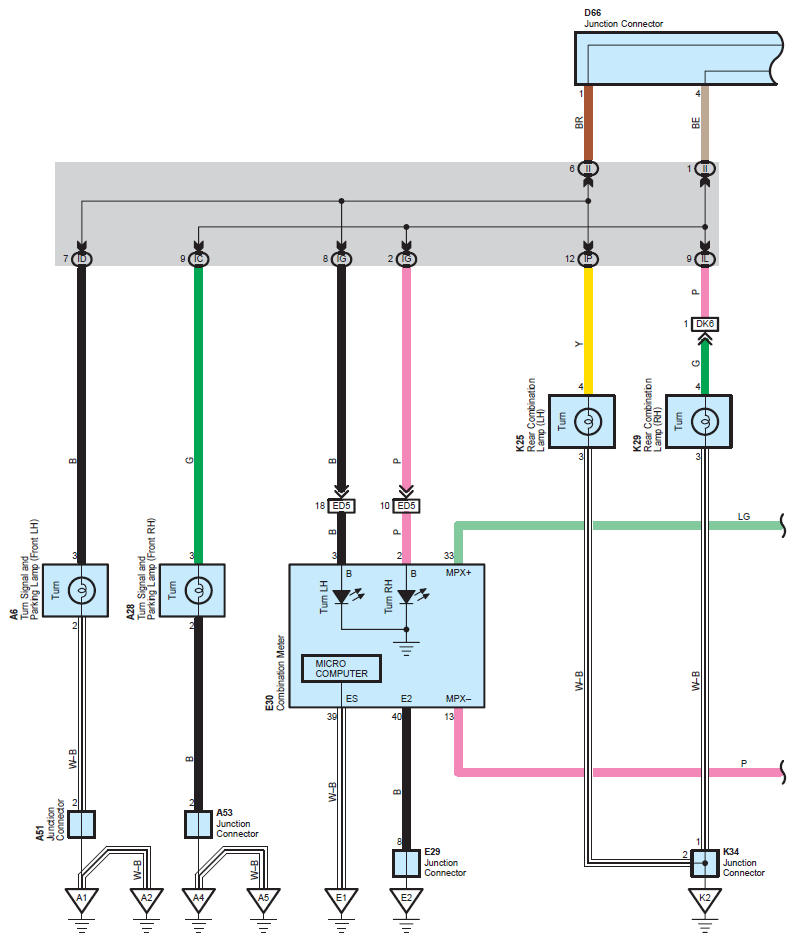

Fig 1: Turn Signal And Hazard Warning Light System Wiring Diagram (1 Of 4)
G07111937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

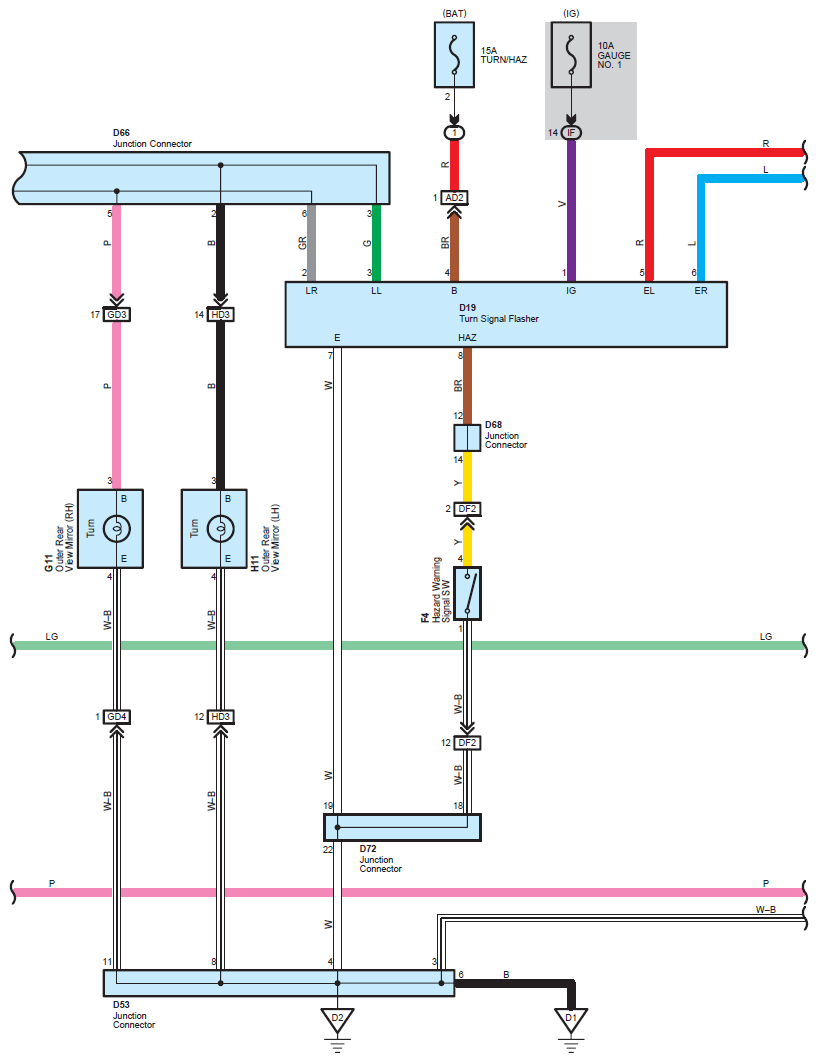

Fig 2: Turn Signal And Hazard Warning Light System Wiring Diagram (2 Of 4)
G07111938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

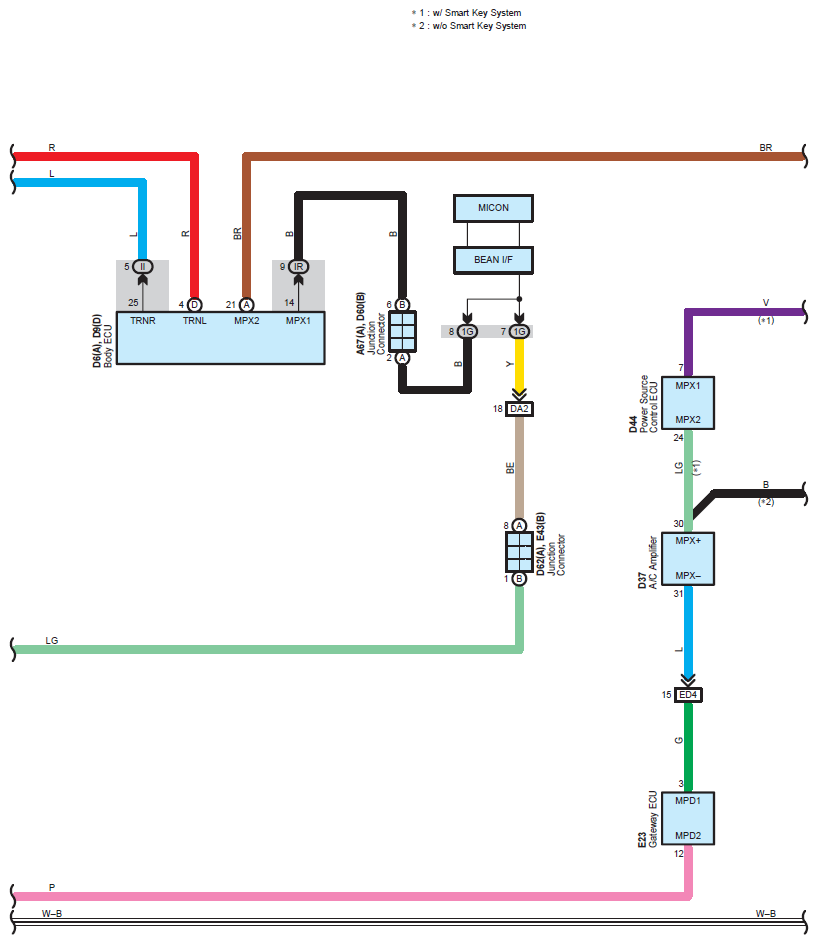

Fig 3: Turn Signal And Hazard Warning Light System Wiring Diagram (3 Of 4)
G07111939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

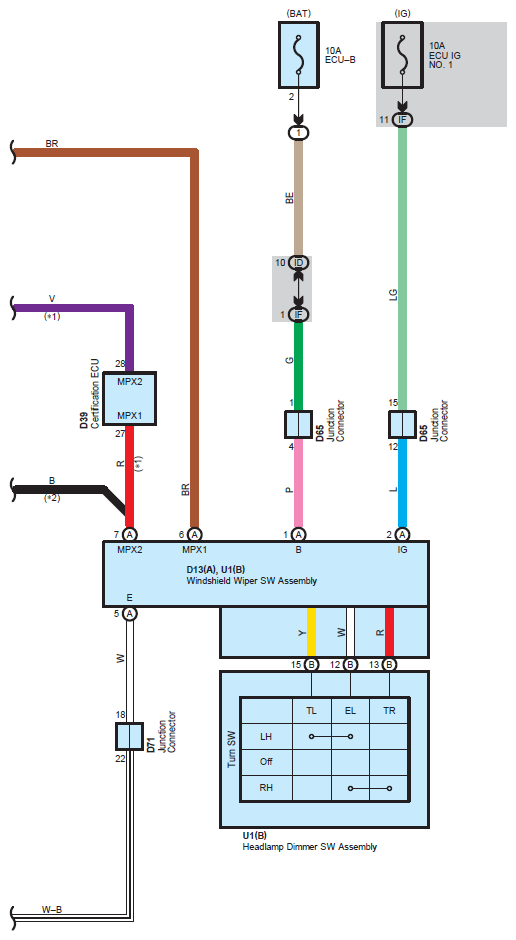

Fig 4: Turn Signal And Hazard Warning Light System Wiring Diagram (4 Of 4)
G07111940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
