Tire Pressure Warning ECU: Notes

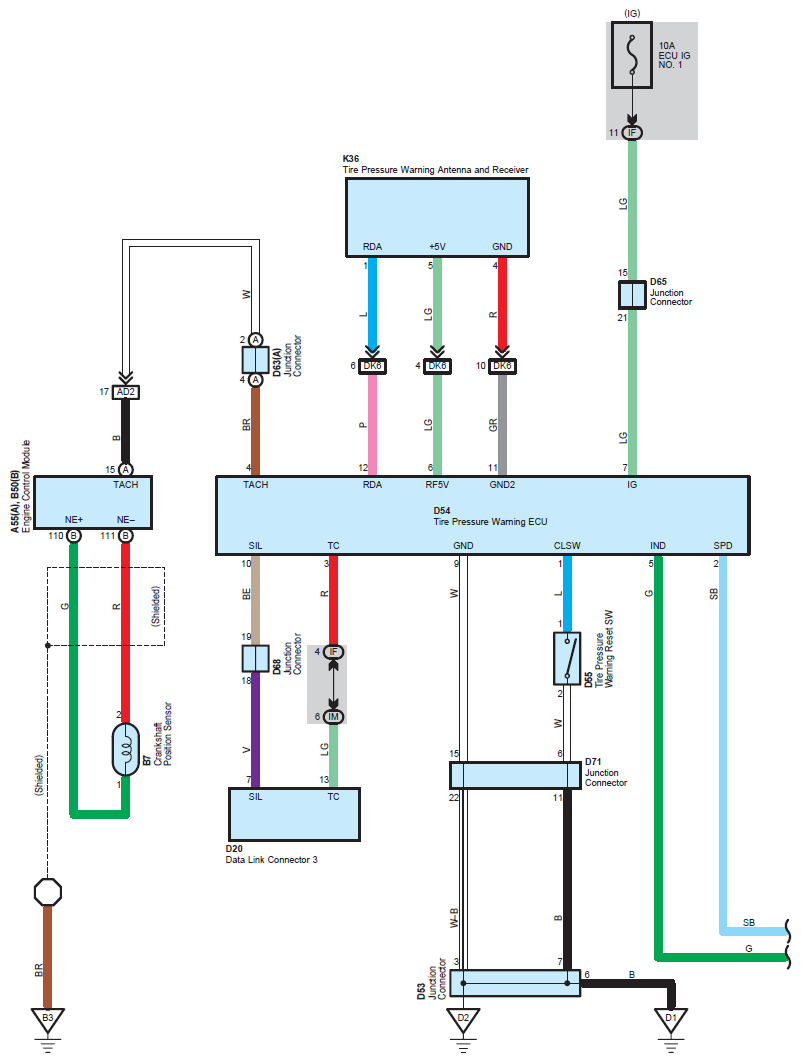

Fig 1: Tire Pressure Warning System Wiring Diagram (1 Of 2)
G07112015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

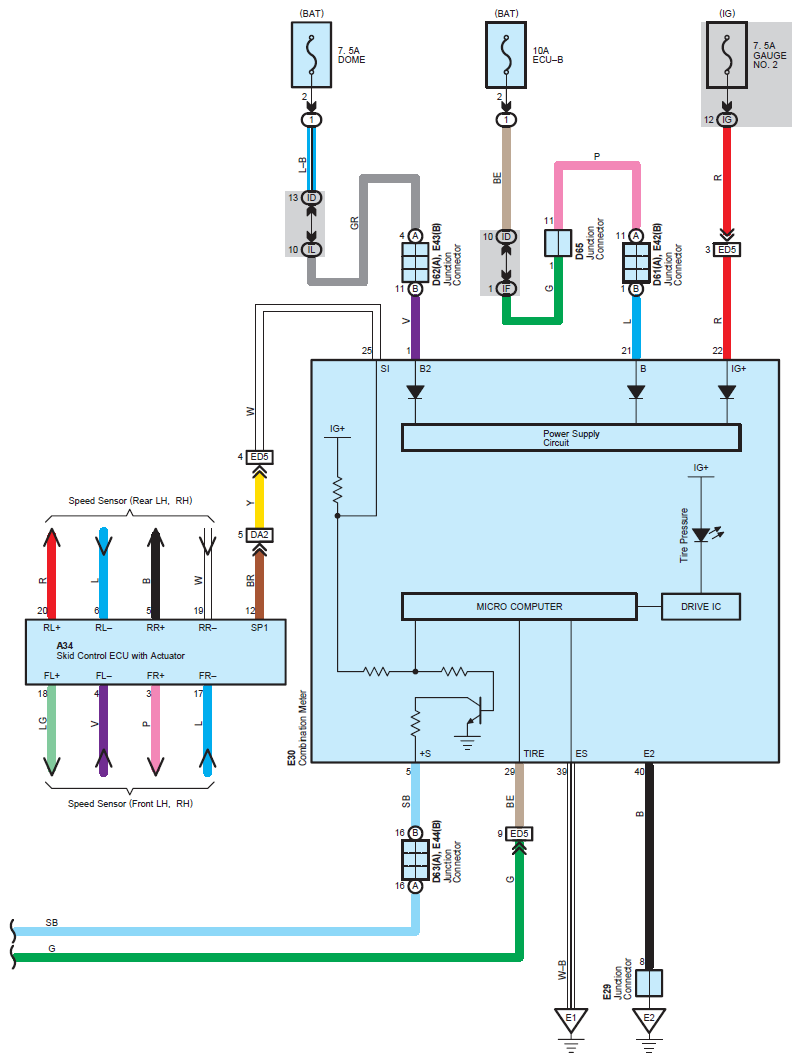

Fig 2: Tire Pressure Warning System Wiring Diagram (2 Of 2)
G07112016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
