Parking Assist (Rear View Monitor w/o Navigation System): Notes

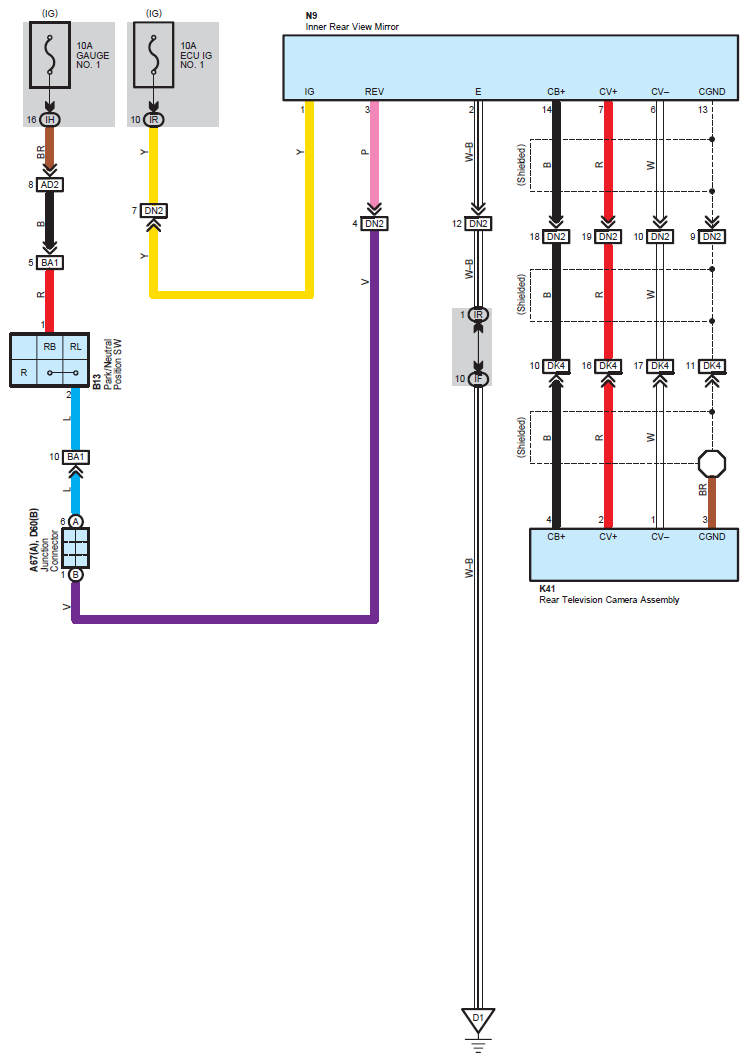

Fig 1: Parking Assist (Rear View Monitor w/o Navigation System) Wiring Diagram

G07112077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
