DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) (FROM 12/2010): Wiring Diagram

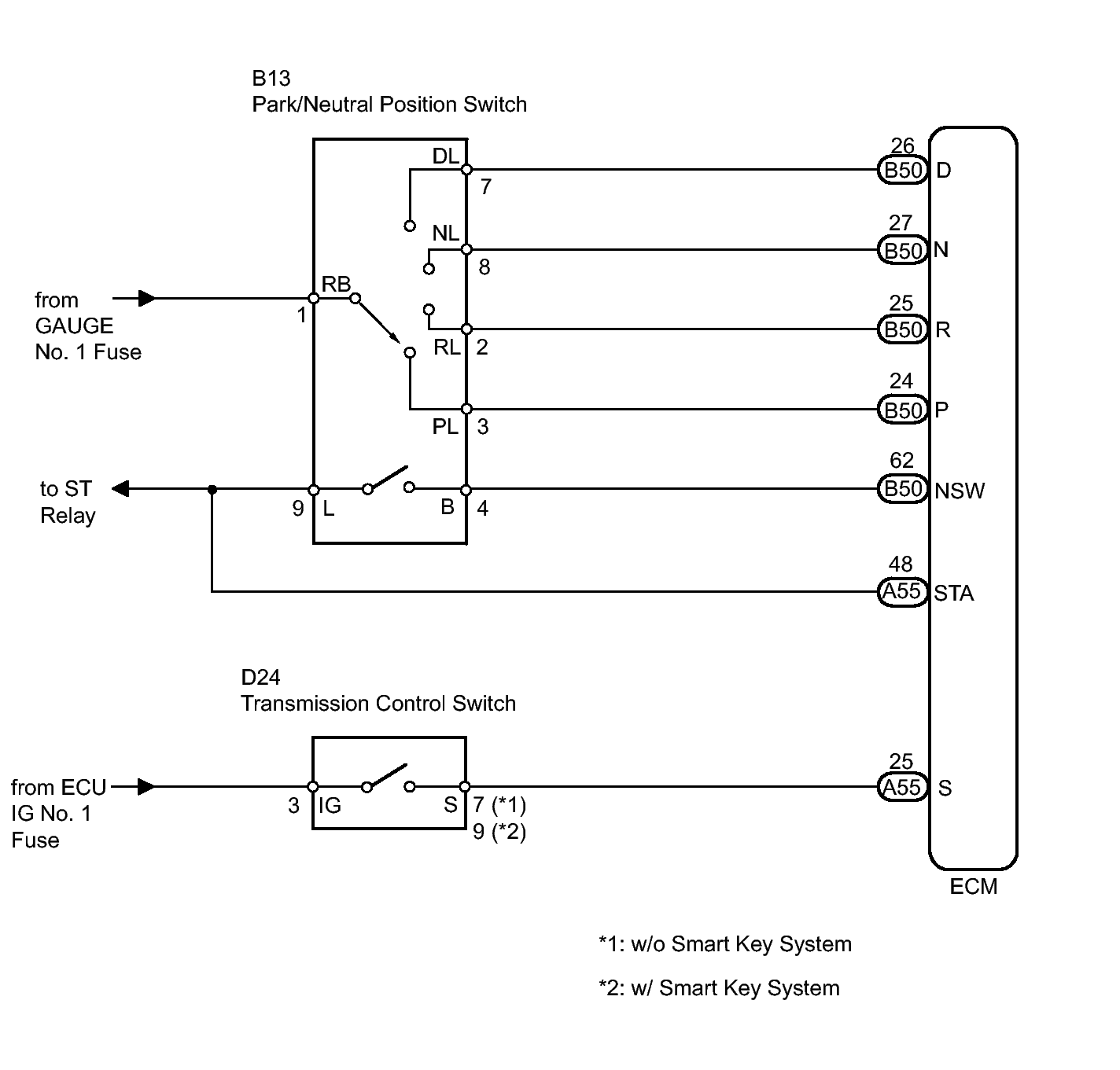

Fig 1: Park/Neutral Position Switch Circuit - Wiring Diagram
GTY296548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
