Navigation Receiver Assembly Power Source Circuit (TO 12/2010): Wiring Diagram

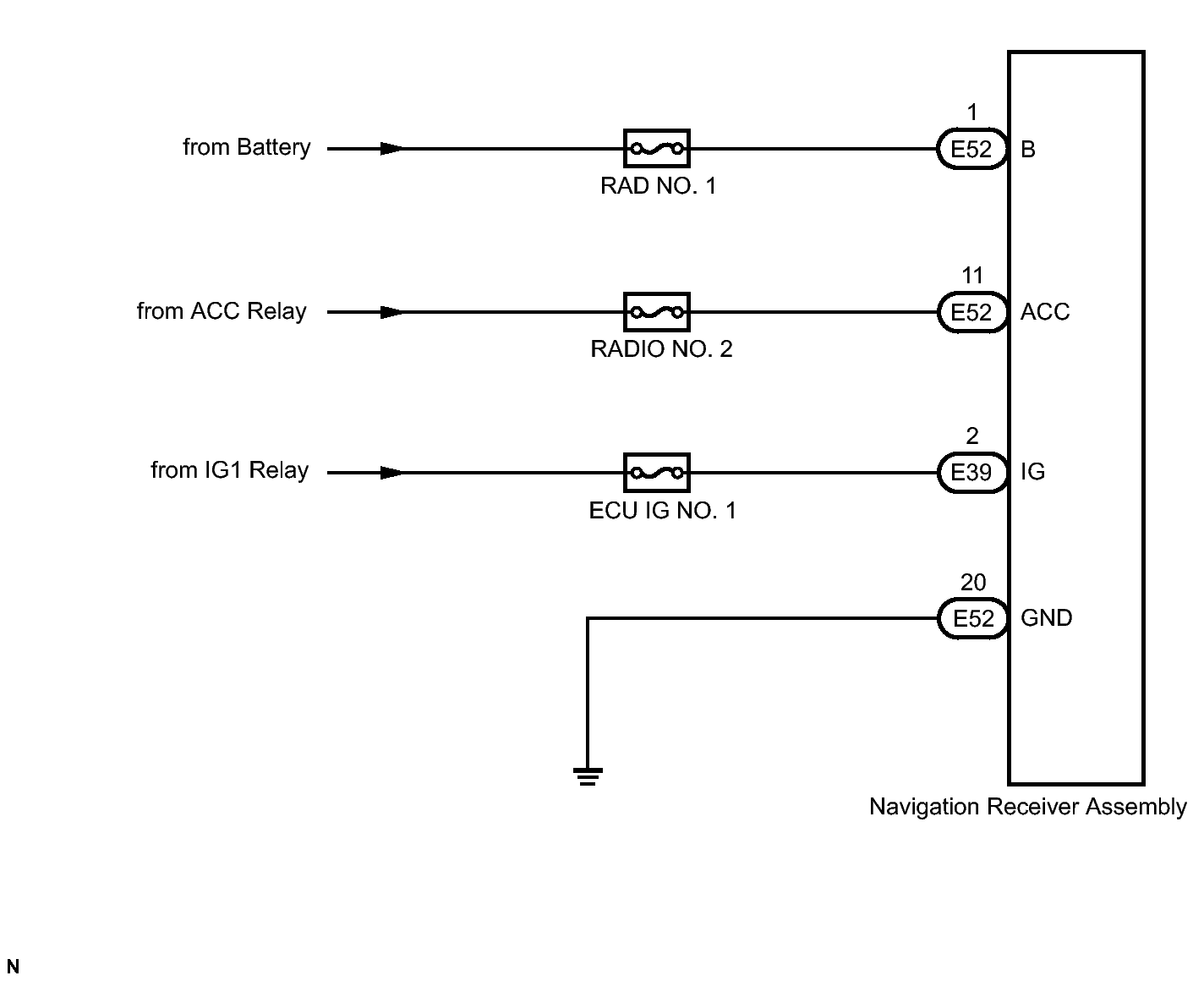

Fig 1: Navigation Receiver Assembly Power Source Circuit - Wiring Diagram

GTY306482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
