Rear Window Defogger and Mirror Heater: Notes

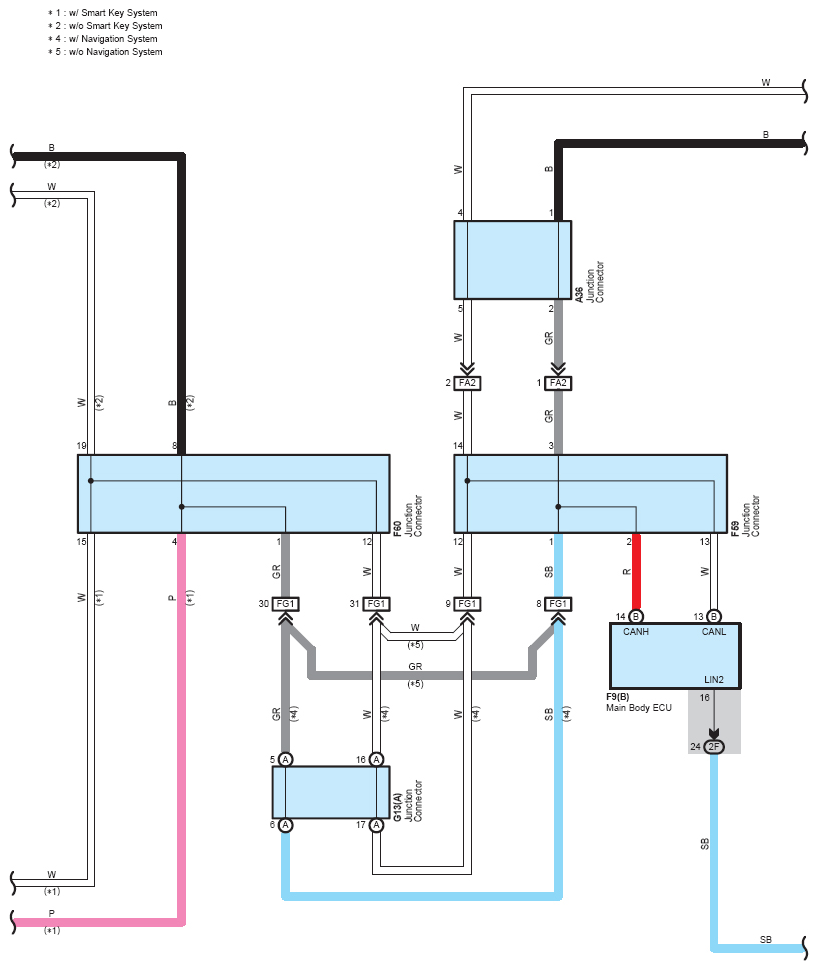

Fig 1: Rear Window Defogger And Mirror Heater (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

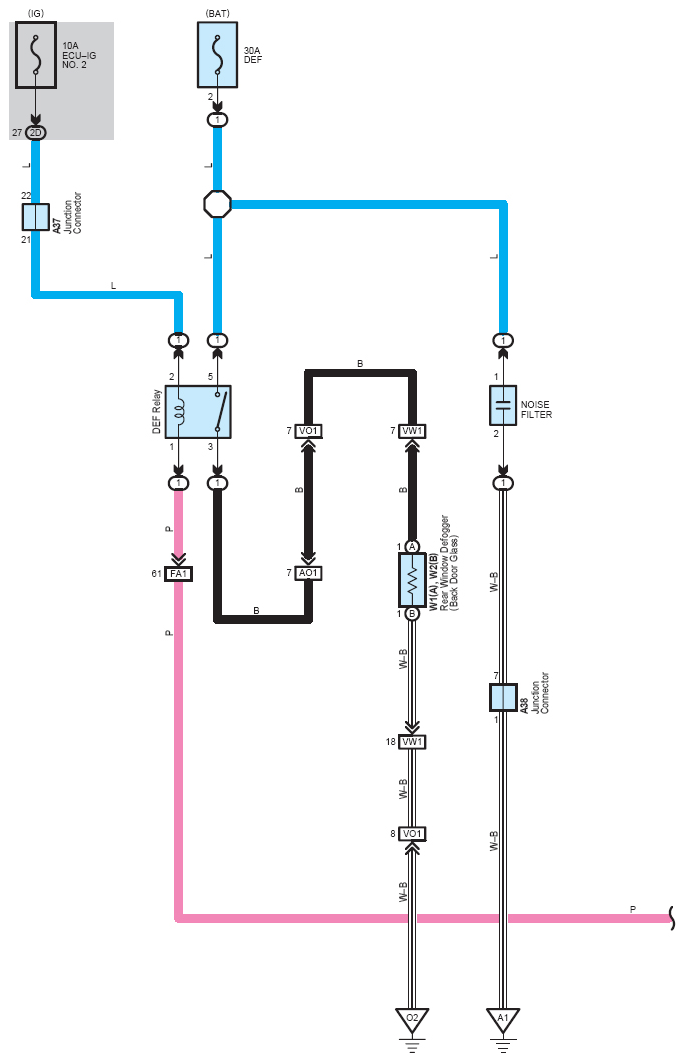

Fig 2: Rear Window Defogger And Mirror Heater (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

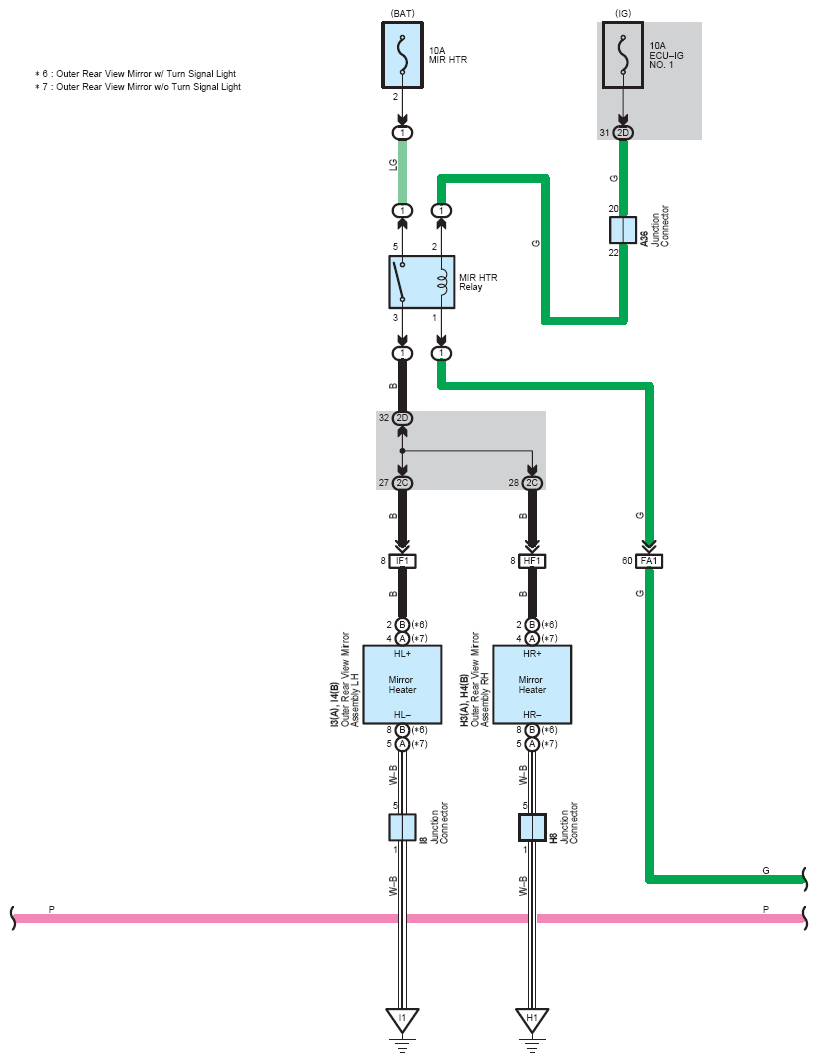

Fig 3: Rear Window Defogger And Mirror Heater (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Rear Window Defogger And Mirror Heater (4 Of 5)

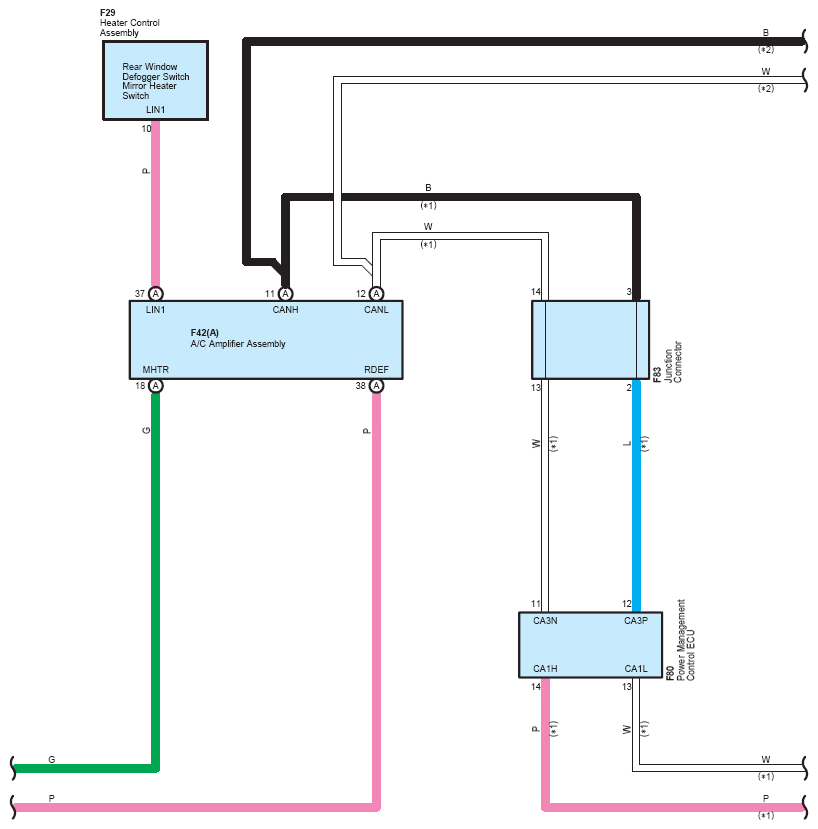

Fig 5: Rear Window Defogger And Mirror Heater (5 Of 5)
