Rear Speed Sensor: Removal: Removal

1. Disconnect the speed sensor connector.

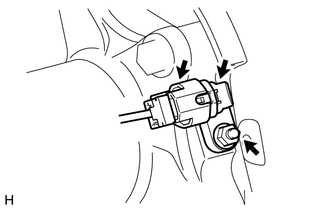

   Fig 1: Identifying Rear Speed Sensor And Nut LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut and speed sensor.
   NOTE:

   Pull out the sensor while trying as much as possible not to rotate it.

HINT:

Use the same procedure described for the LH side.

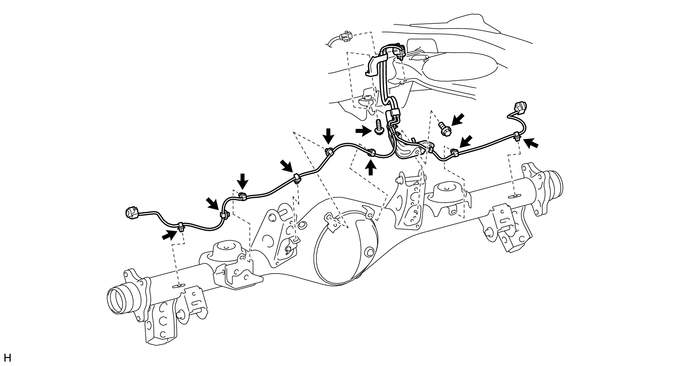

Fig 2: Identifying Skid Control Sensor Wire Fasteners

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Detach the connector.
3. Detach the 8 clamps.
4. Remove the 2 bolts and 2 sensor clamps.
