Shift Lock (1GR-FE): Notes

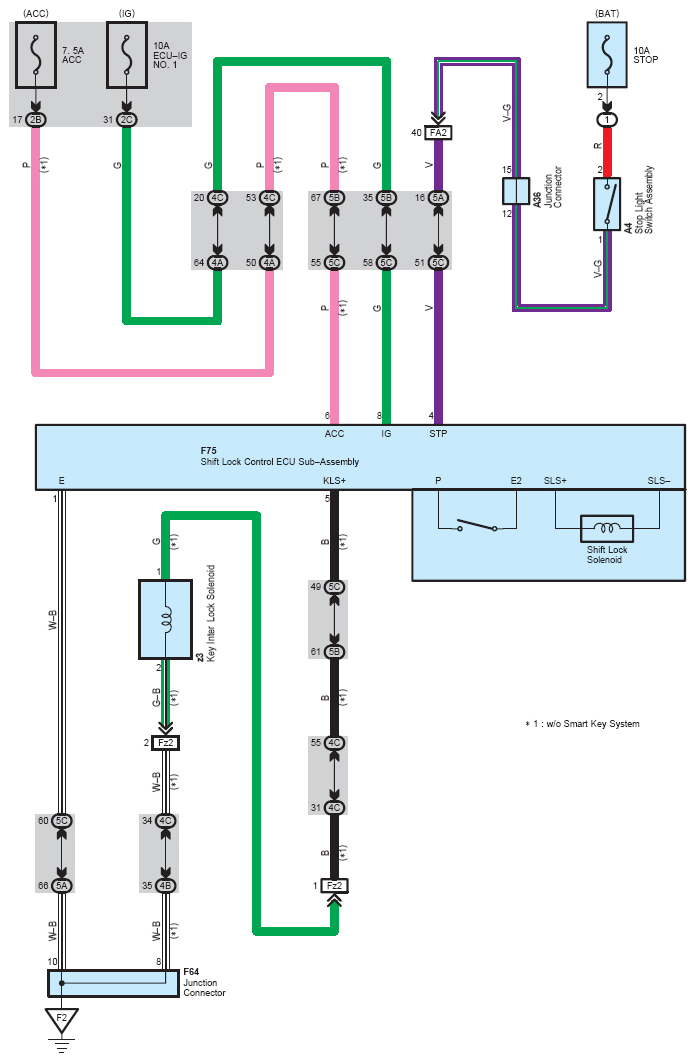

Fig 1: Shift Lock (1GR-FE) Wiring Diagram
G07111559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
