Front Speed Sensor: Removal: Removal

HINT:

• The procedure listed below is for the LH side.
• Other than areas where instructions are provided, use the same procedures for the RH and LH sides.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT SKID CONTROL SENSOR WIRE
   1. Disconnect the connector from the front speed sensor.

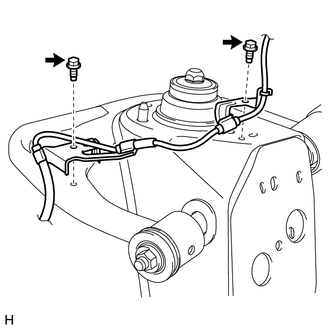

      Fig 1: Identifying Front Skid Control Sensor Wire

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 bolts and 2 harness clamps.
   3. Detach the clip.
   4. Remove the 2 bolts and 2 harness clamps.

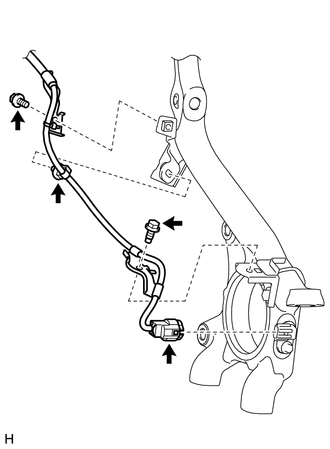

      Fig 2: Identifying Front Skid Control Sensor Wire Bolts And Harness Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Disconnect the connector as follows.

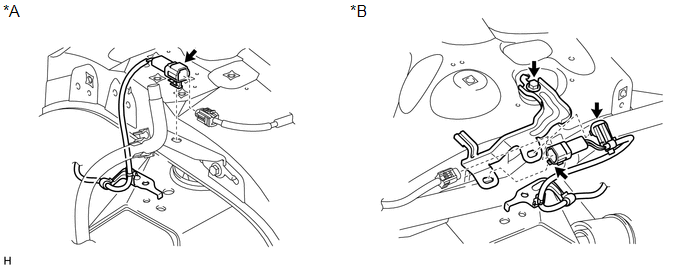

      Fig 3: Identifying Front Skid Control Sensor Wire Connectors LH And RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *A

      for LH

      *B

      for RH

      1. for LH:
         1. Disconnect the connector.
         2. Detach the connector.
      2. for RH:
         1. Disconnect the connector.
         2. Detach the connector from the skid control sensor clamp.
         3. Detach the clip.
         4. Remove the bolt and skid control sensor clamp.
3. REMOVE SKID CONTROL SENSOR CLAMP
   1. Remove the bolt and skid control sensor clamp from the knuckle.

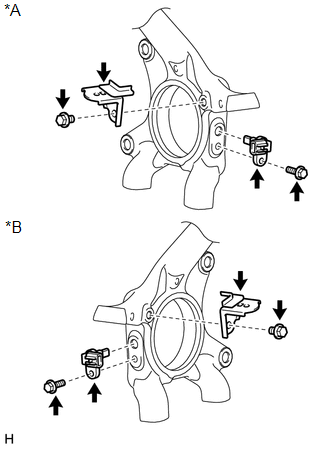

      Fig 4: Identifying Skid Control Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *A	for LH
      *B	for RH

4. REMOVE FRONT SPEED SENSOR
   1. Remove the bolt and speed sensor from the knuckle.
      NOTE:

      Pull out the sensor while trying as much as possible not to rotate it.
