Terminals Of Ecu
- CHECK POWER STEERING ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

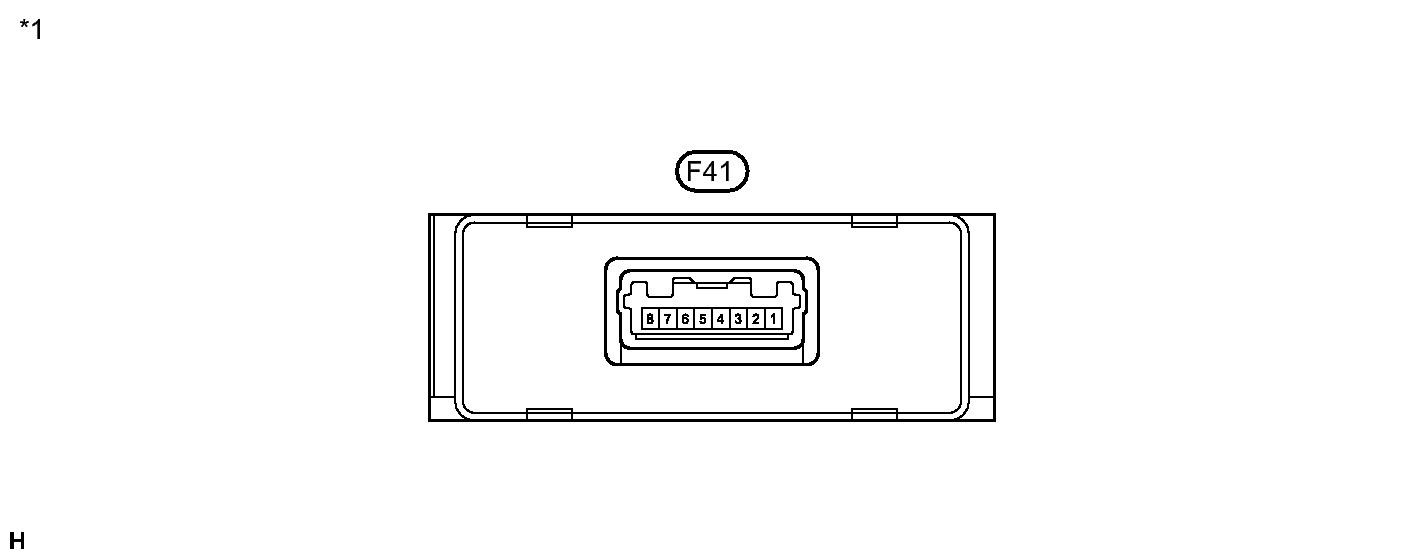

TEXT IN ILLUSTRATION*1 Power Steering ECU - - - Measure the voltage and resistance according to the value(s) in the table below.
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition F41-3 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω F41-2 (CANL) - F41-1 (CANH) W - L CAN communication Ignition switch off 54 to 69 Ω F41-5 (IG) - F41-3 (GND) G - W-B IG power supply Ignition switch ON 11 to 14 V F41-7 (SOF+) - F41-8 (SOF-) V - LG Power steering solenoid valve signal - Engine idling
- Steering wheel turned to right or left
Pulse generation If the result is not as specified, the ECU may have a malfunction.
- Measure the voltage and resistance according to the value(s) in the table below.
