Parts Location: Illustration

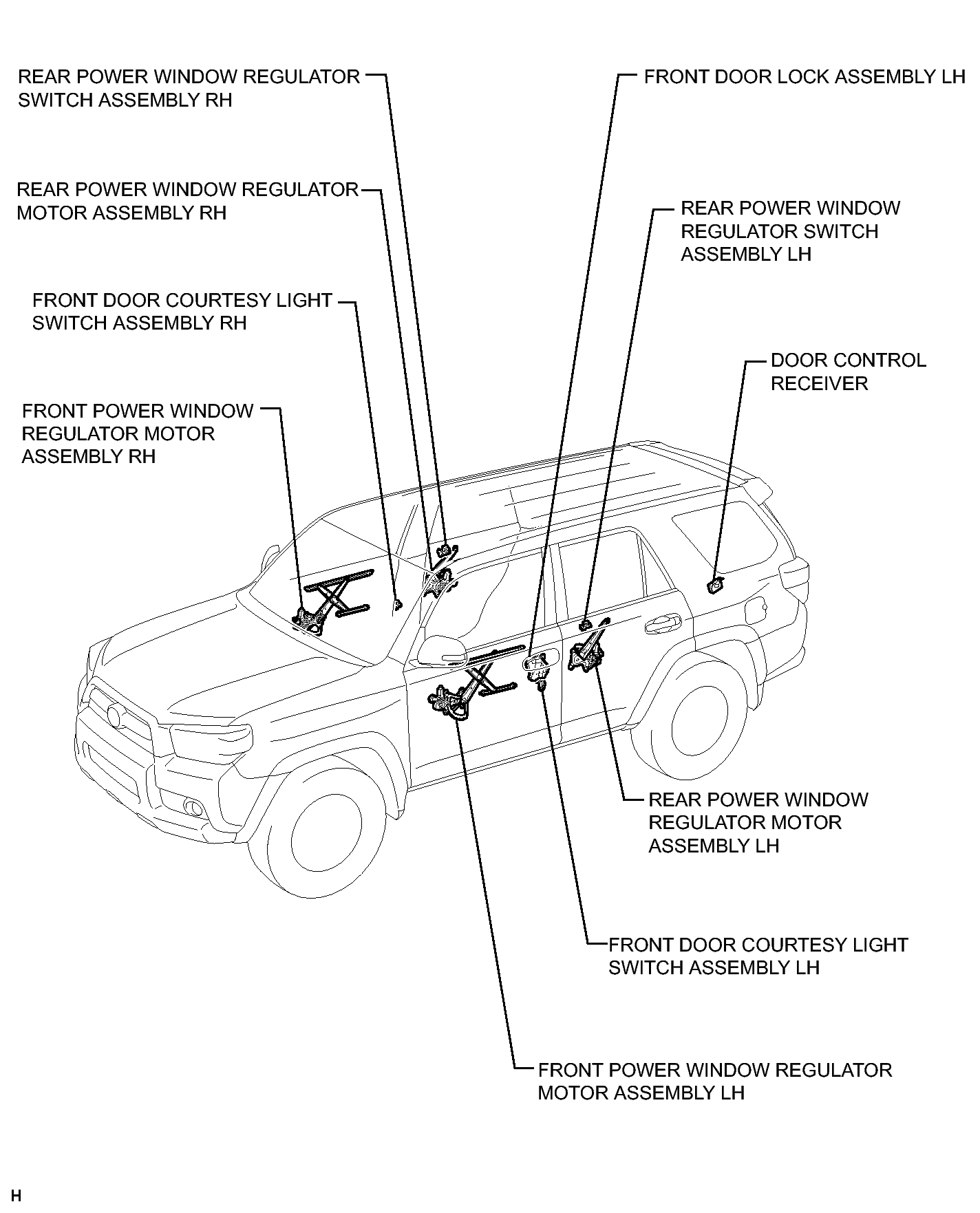

Fig 1: Identifying Power Window Control System Replacement Components Location (1 Of 3)
GTY232230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

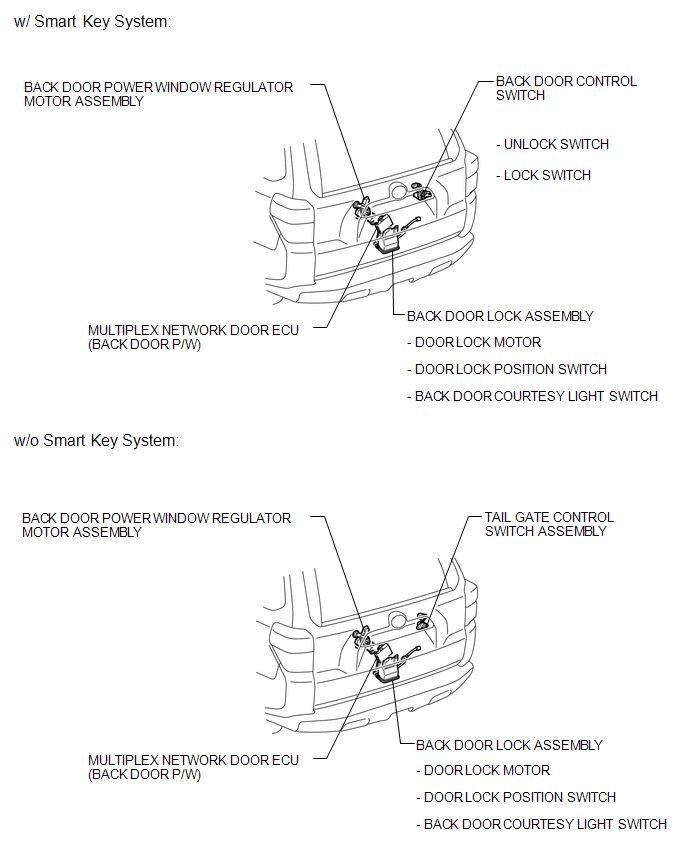

Fig 1: Identifying Power Window Control System Replacement Components Location (2 Of 3)
GTY236687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

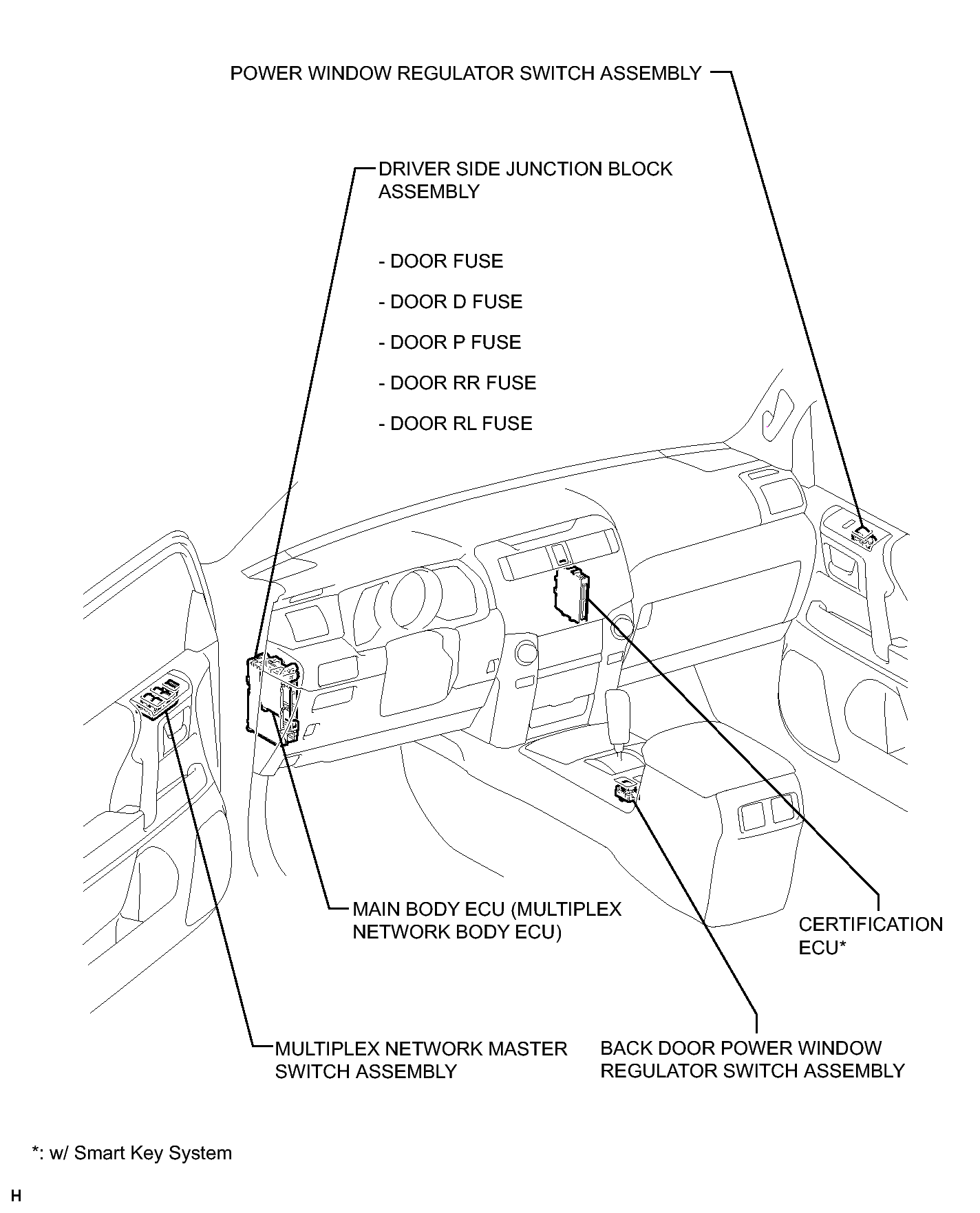

Fig 1: Identifying Power Window Control System Replacement Components Location (3 Of 3)
GTY221834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
