Fuel Pump: Disassembly: Disassembly

REMOVE FUEL SENDER GAUGE ASSEMBLY See step 2
REMOVE FUEL PUMP
1. Disconnect the connector of the fuel pump harness.

  Fig 1: Locating Connector Of Fuel Pump Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

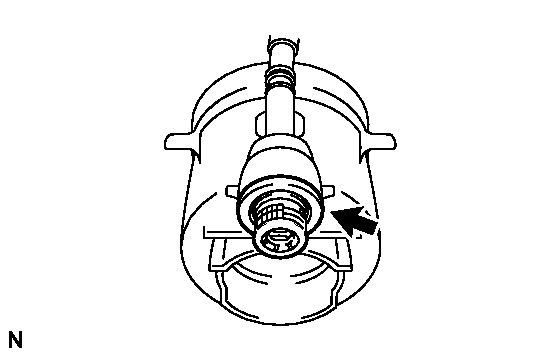

2. Disconnect the fuel tube.

  Fig 2: Locating Fuel Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

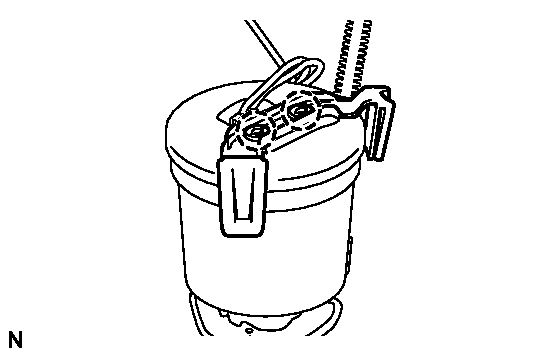

3. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the fuel filter and fuel pump from the fuel sub-tank.

  Fig 3: Identifying Fuel Filter & Fuel Pump Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

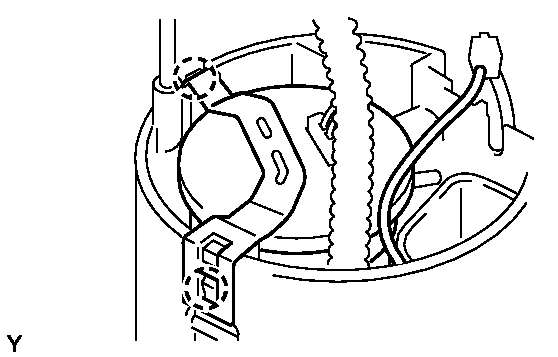

4. Disengage the 2 claws and remove the fuel suction support from the fuel filter.

  Fig 4: Identifying Fuel Suction Support Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

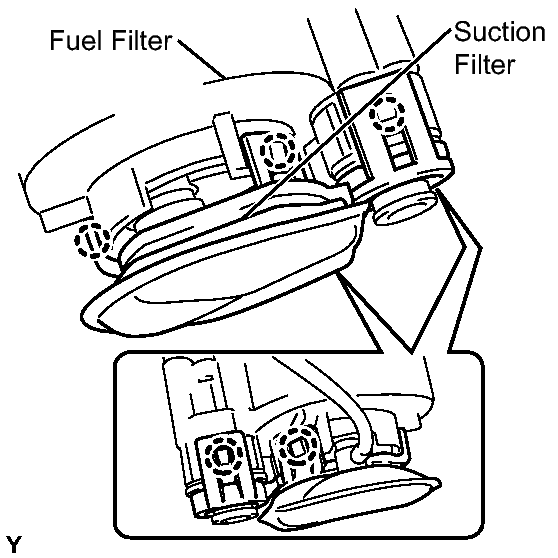

5. Using a screwdriver with its tip wrapped in protective tape, disengage the 5 claws, and remove the suction filter with fuel pump from the fuel filter.

  Fig 5: Locating Fuel Suction Filter Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not damage the fuel filter and suction filter.
  - Do not remove the suction filter from the fuel pump.
  - Do not use either the fuel pump or the suction filter if the suction filter is removed from the fuel pump.
6. Disconnect the fuel pump harness.

  Fig 6: Locating Fuel Pump Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

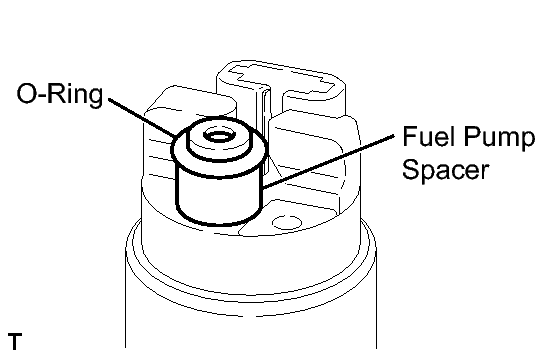

7. Remove the O-ring and fuel pump spacer.

  Fig 7: Locating O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Using a screwdriver with its tip wrapped in protective tape, remove the pressure regulator assembly.

  Fig 8: Locating Fuel Pressure Regulator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the fuel filter.
2. Remove the 2 O-rings.

  Fig 9: Locating Fuel Pressure Regulator Assembly O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
