Wireless Door Lock Control: Notes

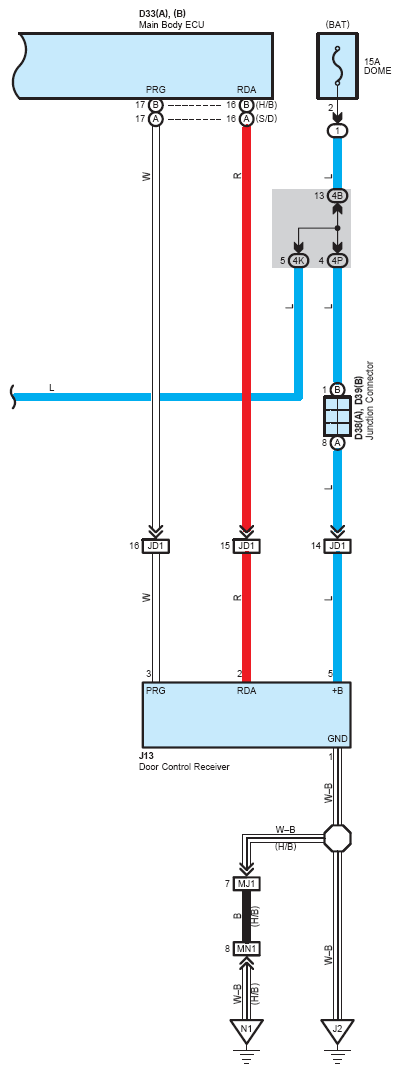

Fig 1: Wireless Door Lock Control - Circuit Diagram

G07557496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
