Engine Control: Notes

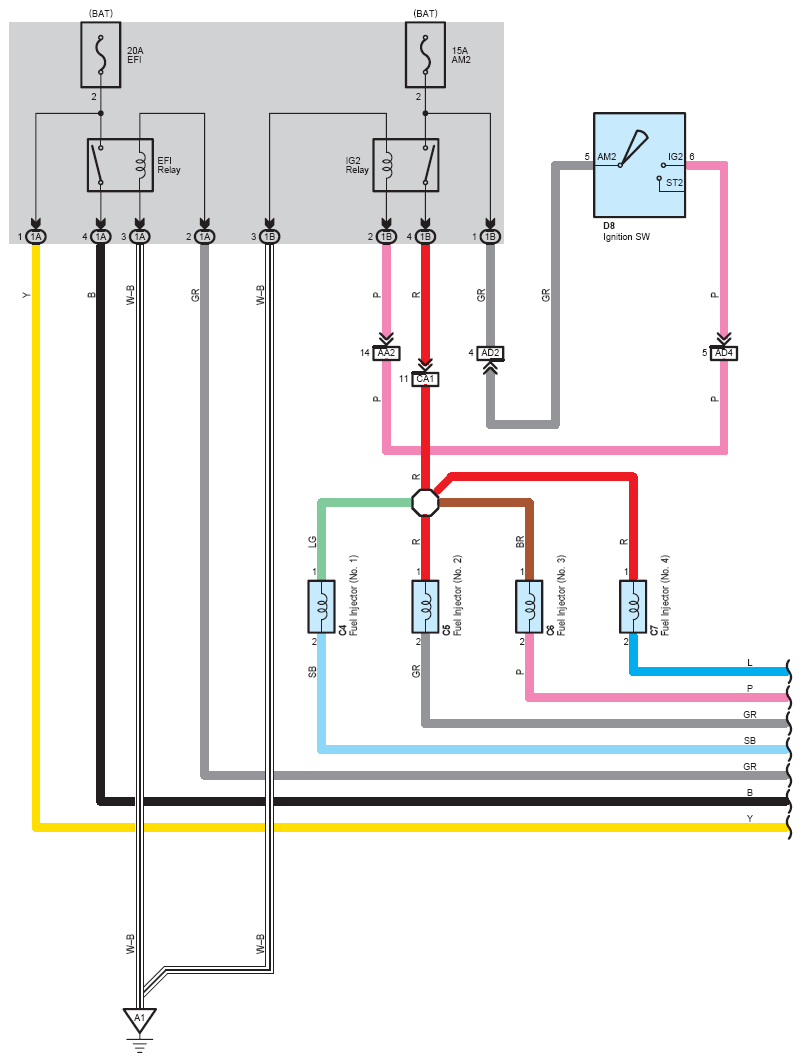

Fig 1: Engine Control - Circuit Diagram (1 Of 10)

G07557412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

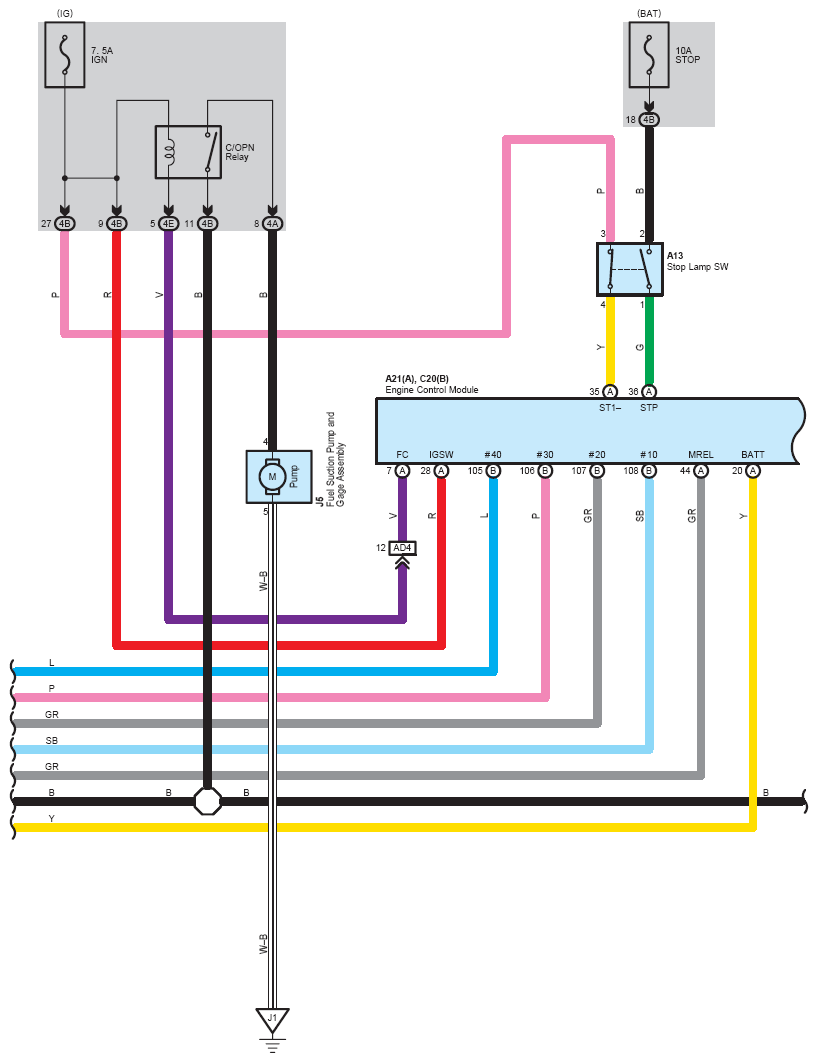

Fig 2: Engine Control - Circuit Diagram (2 Of 10)

G07557413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

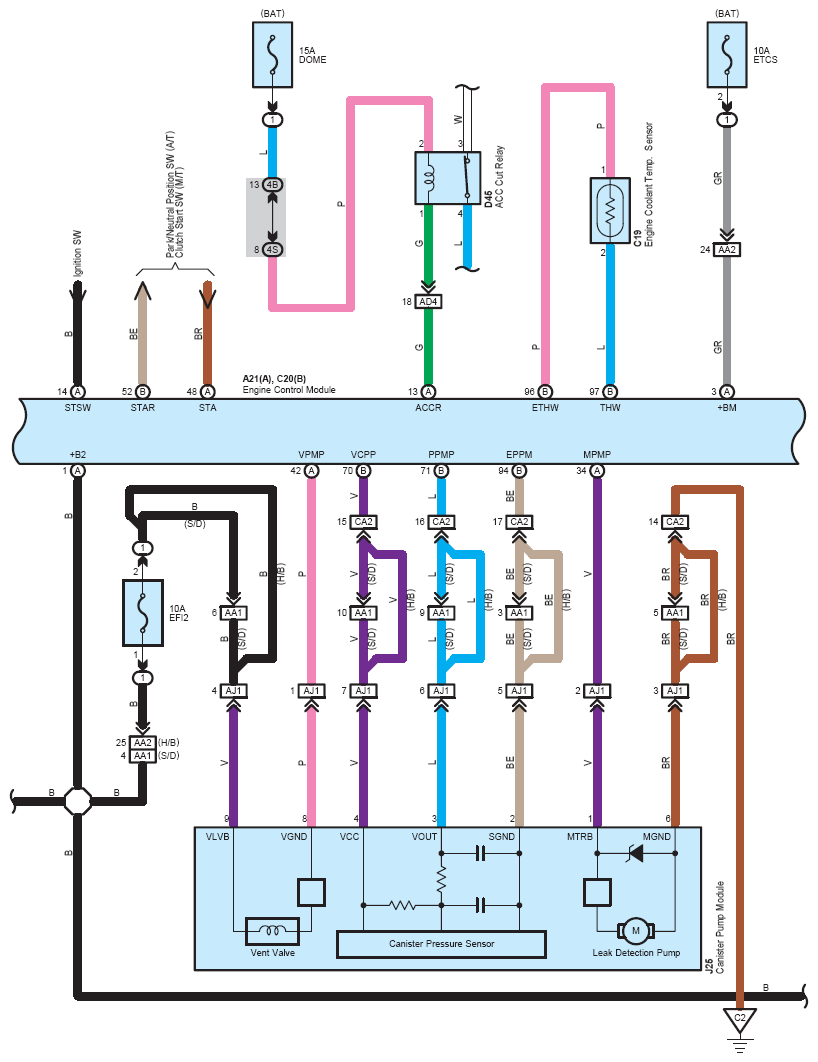

Fig 3: Engine Control - Circuit Diagram (3 Of 10)

G07557414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

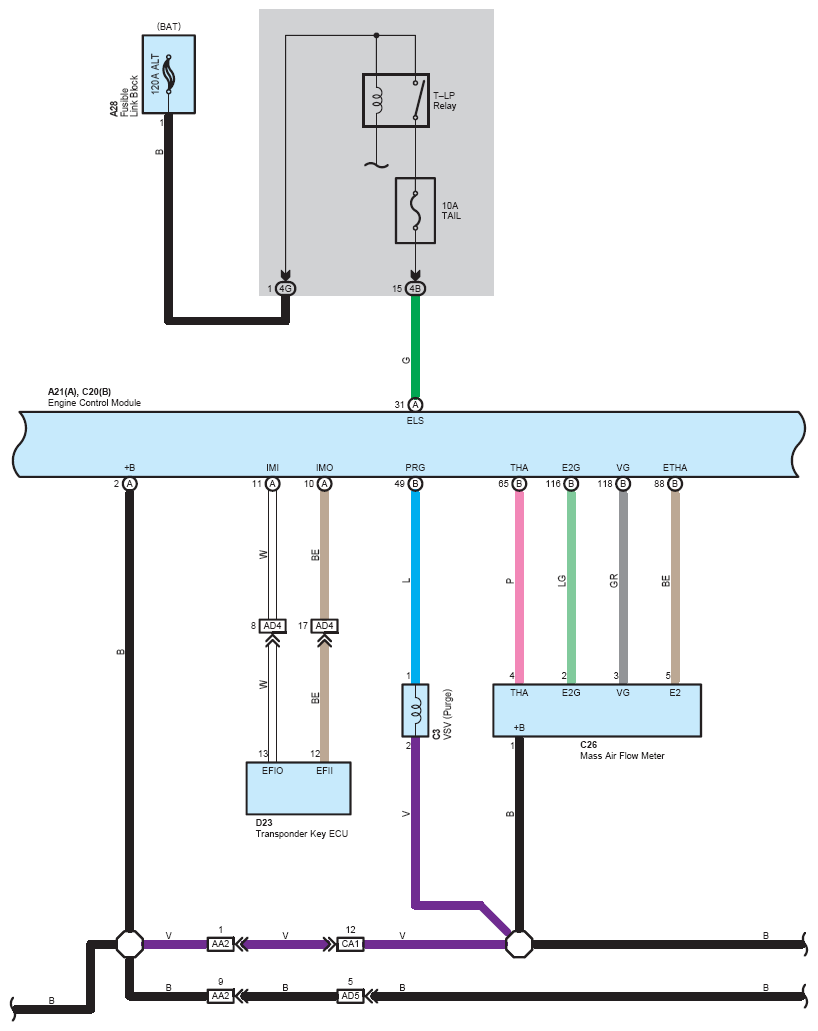

Fig 4: Engine Control - Circuit Diagram (4 Of 10)

G07557415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

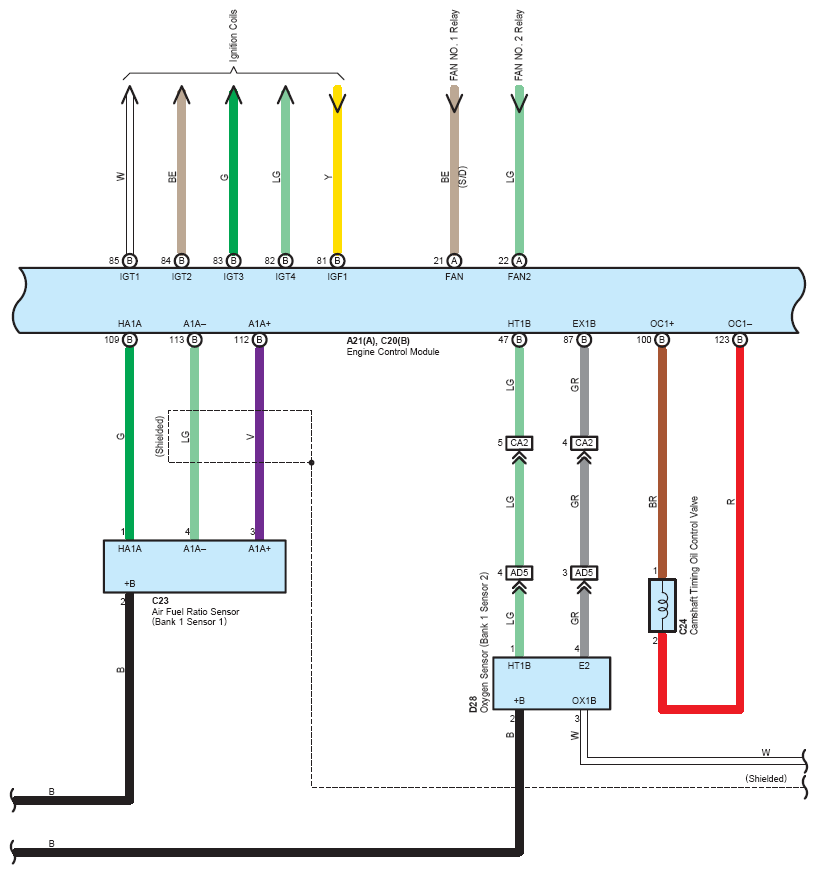

Fig 5: Engine Control - Circuit Diagram (5 Of 10)

G07557416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

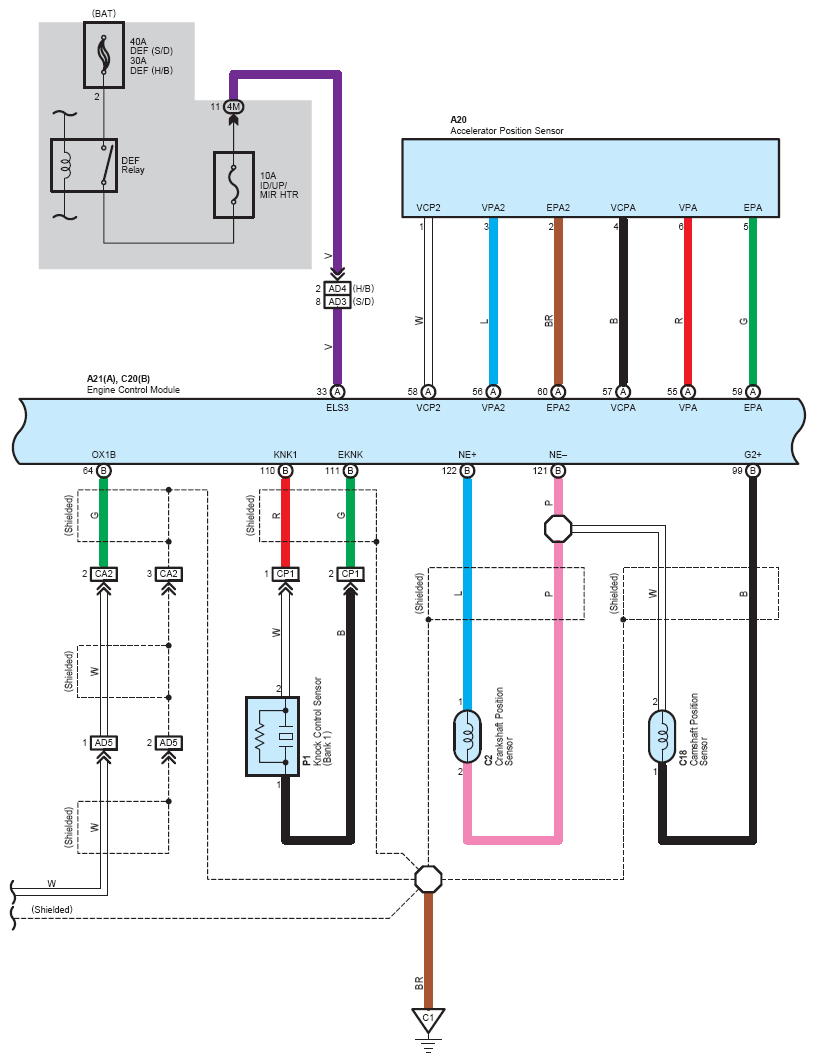

Fig 6: Engine Control - Circuit Diagram (6 Of 10)

G07557417

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

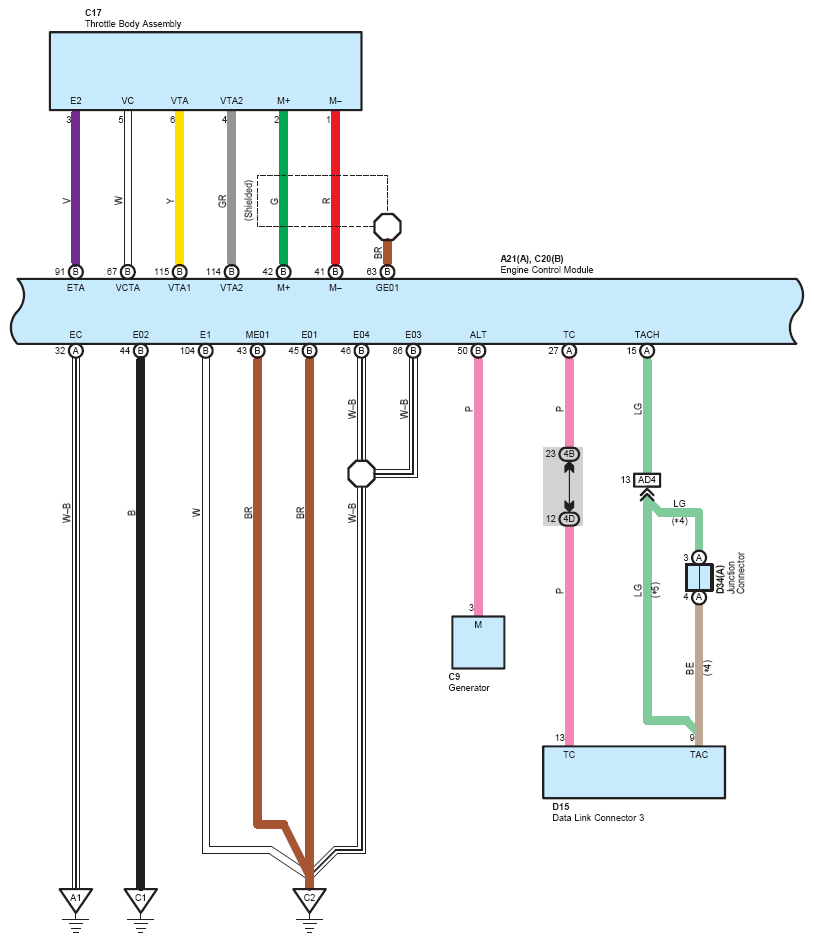

Fig 7: Engine Control - Circuit Diagram (7 Of 10)

G07557418

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Control - Circuit Diagram (8 Of 10)

G07557419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

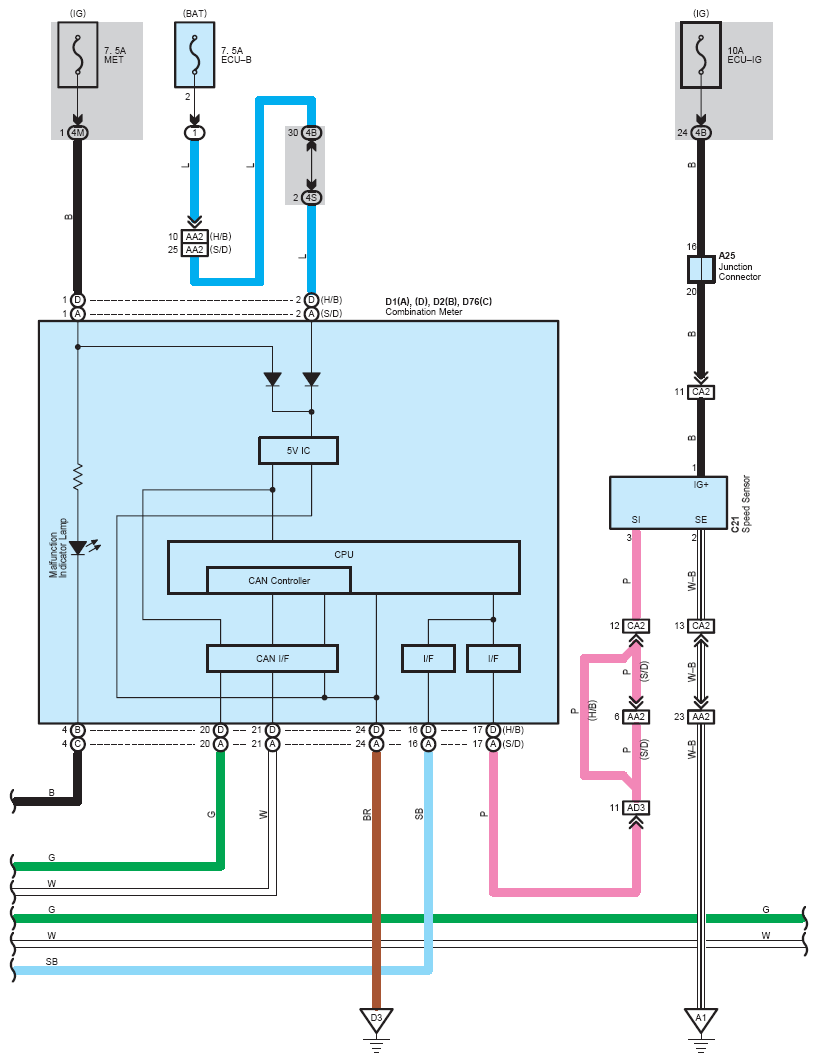

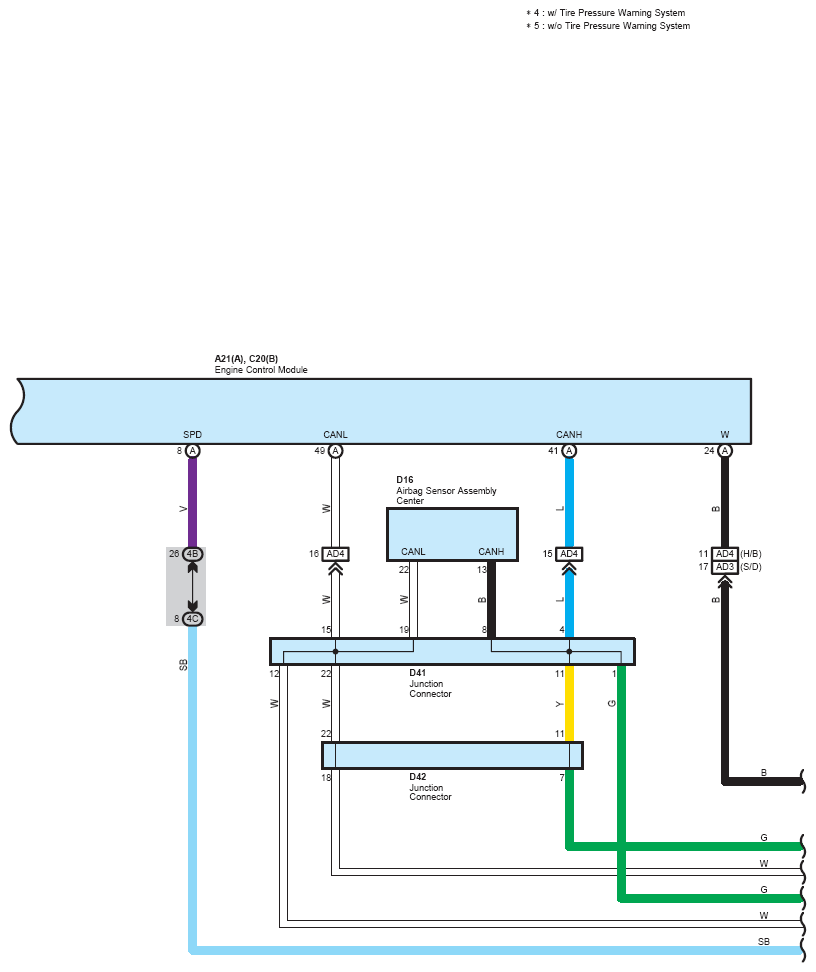

Fig 9: Engine Control - Circuit Diagram (9 Of 10)

G07557420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

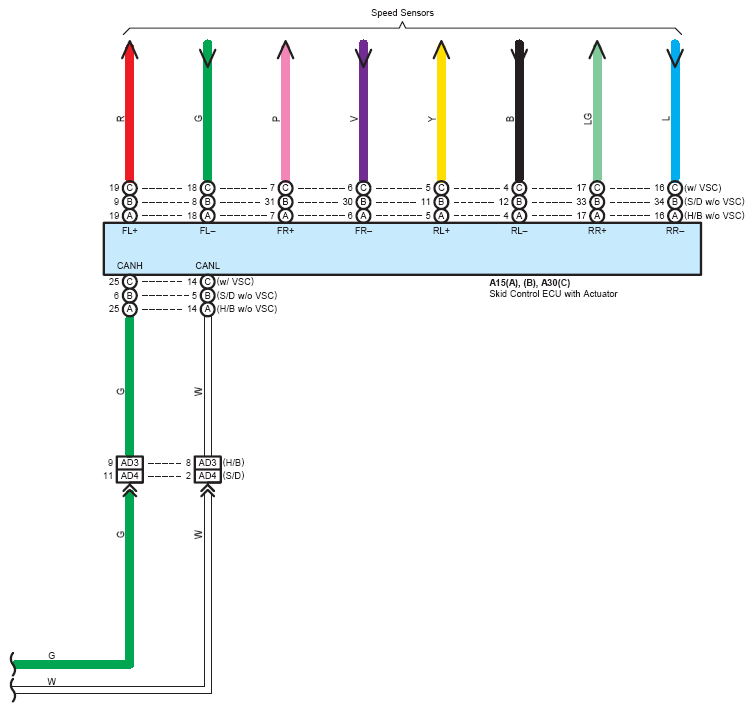

Fig 10: Engine Control - Circuit Diagram (10 Of 10)

G07557421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
