Data Link Connector 3: Notes

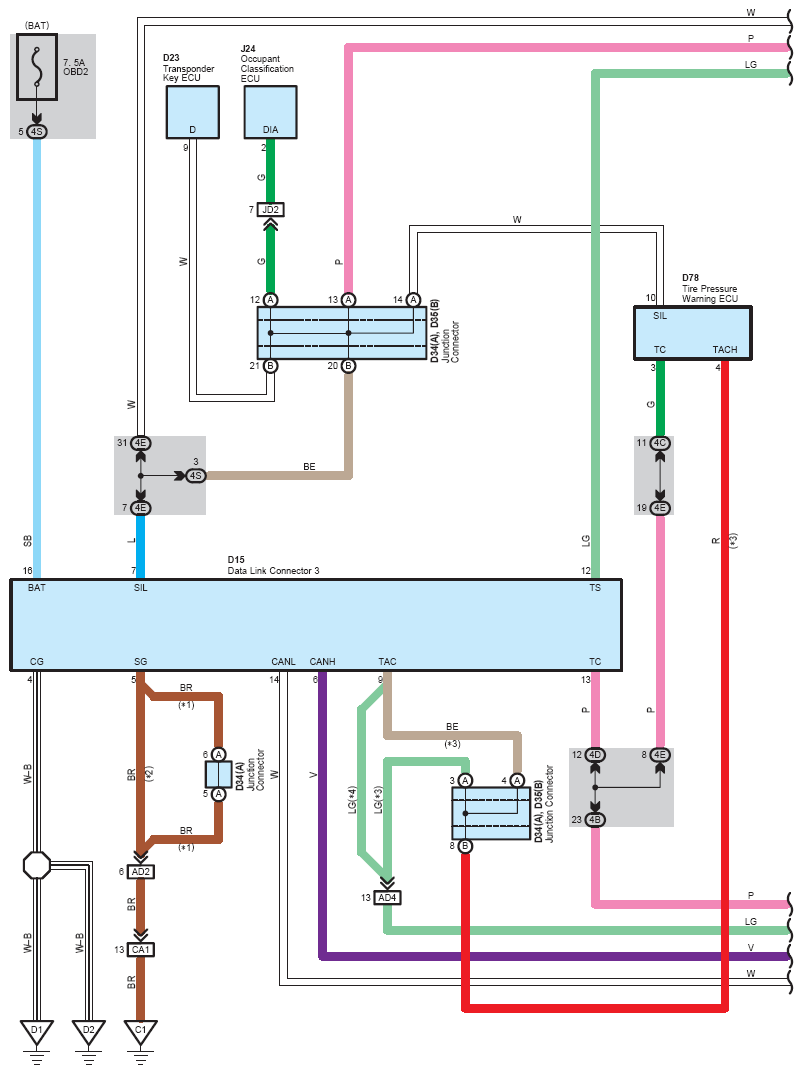

Fig 1: Data Link Connector 3 - Circuit Diagram (1 Of 3)
G07557435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

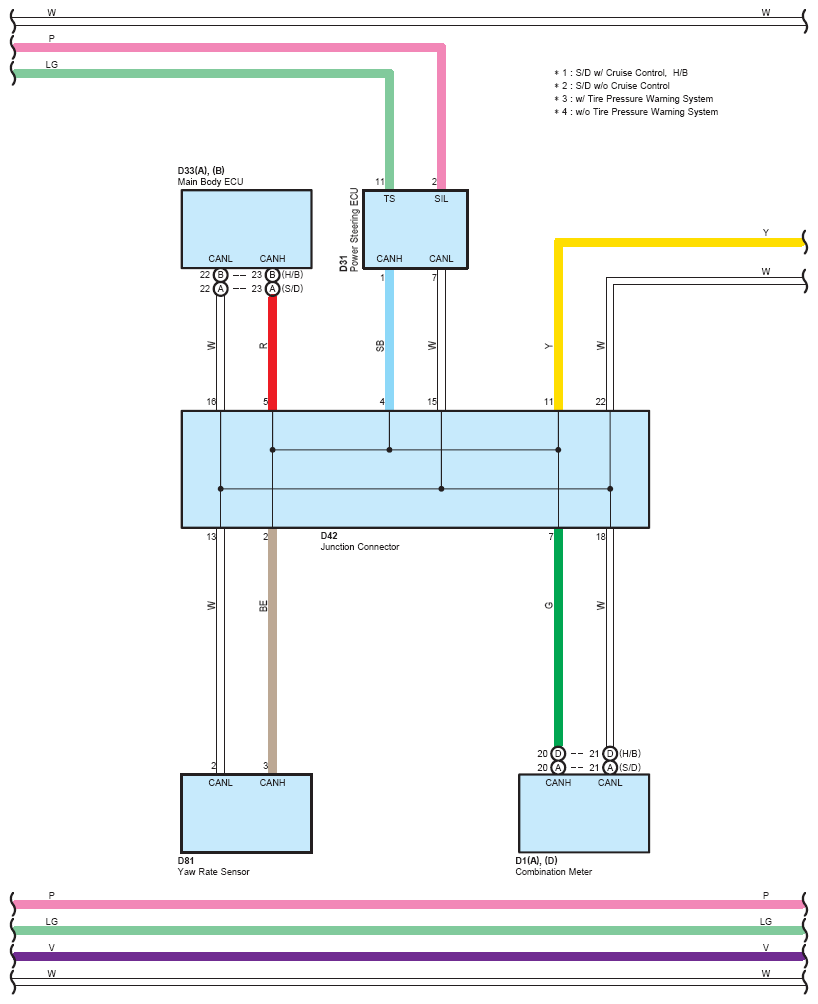

Fig 2: Data Link Connector 3 - Circuit Diagram (2 Of 3)
G07557436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

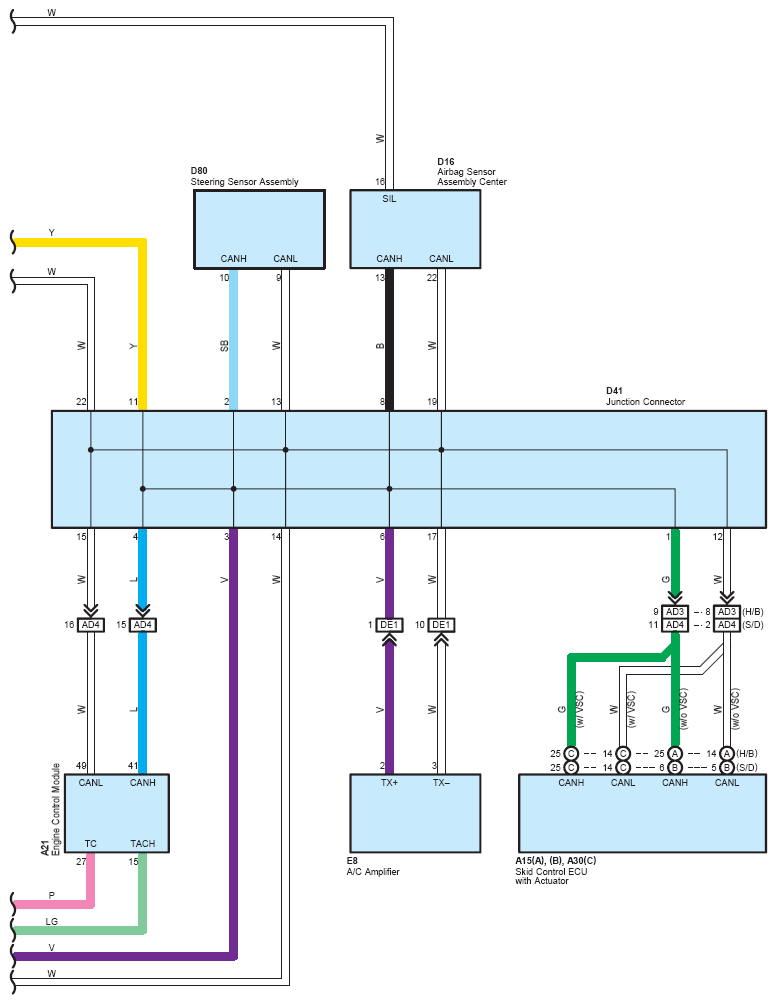

Fig 3: Data Link Connector 3 - Circuit Diagram (3 Of 3)
G07557437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
