Throttle Body: Components: Illustration

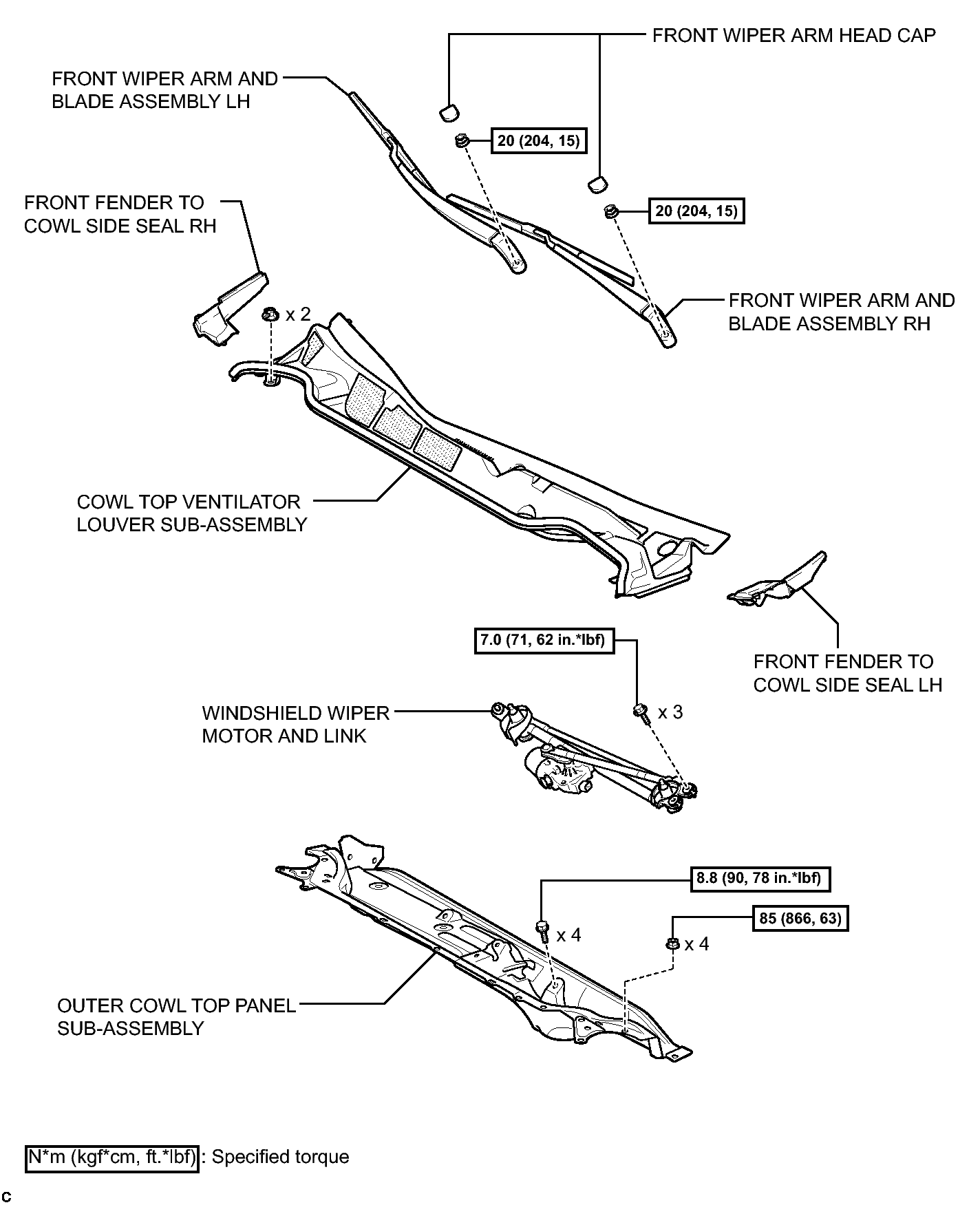

Fig 1: Identifying Throttle Body Replacement Components And Torque Specifications (1 Of 3)
GTY252868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

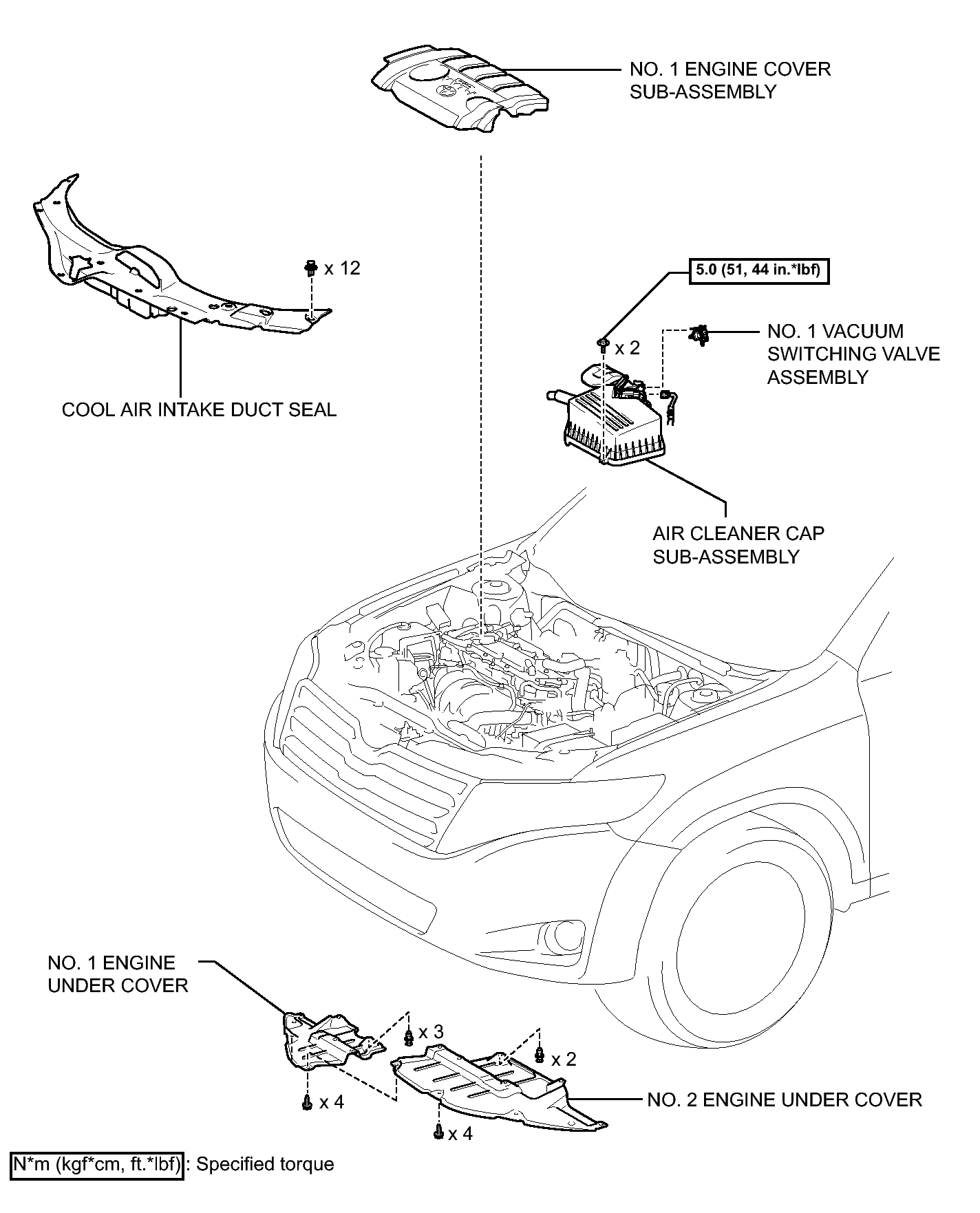

Fig 1: Identifying Throttle Body Replacement Components And Torque Specifications (2 Of 3)
GTY249870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

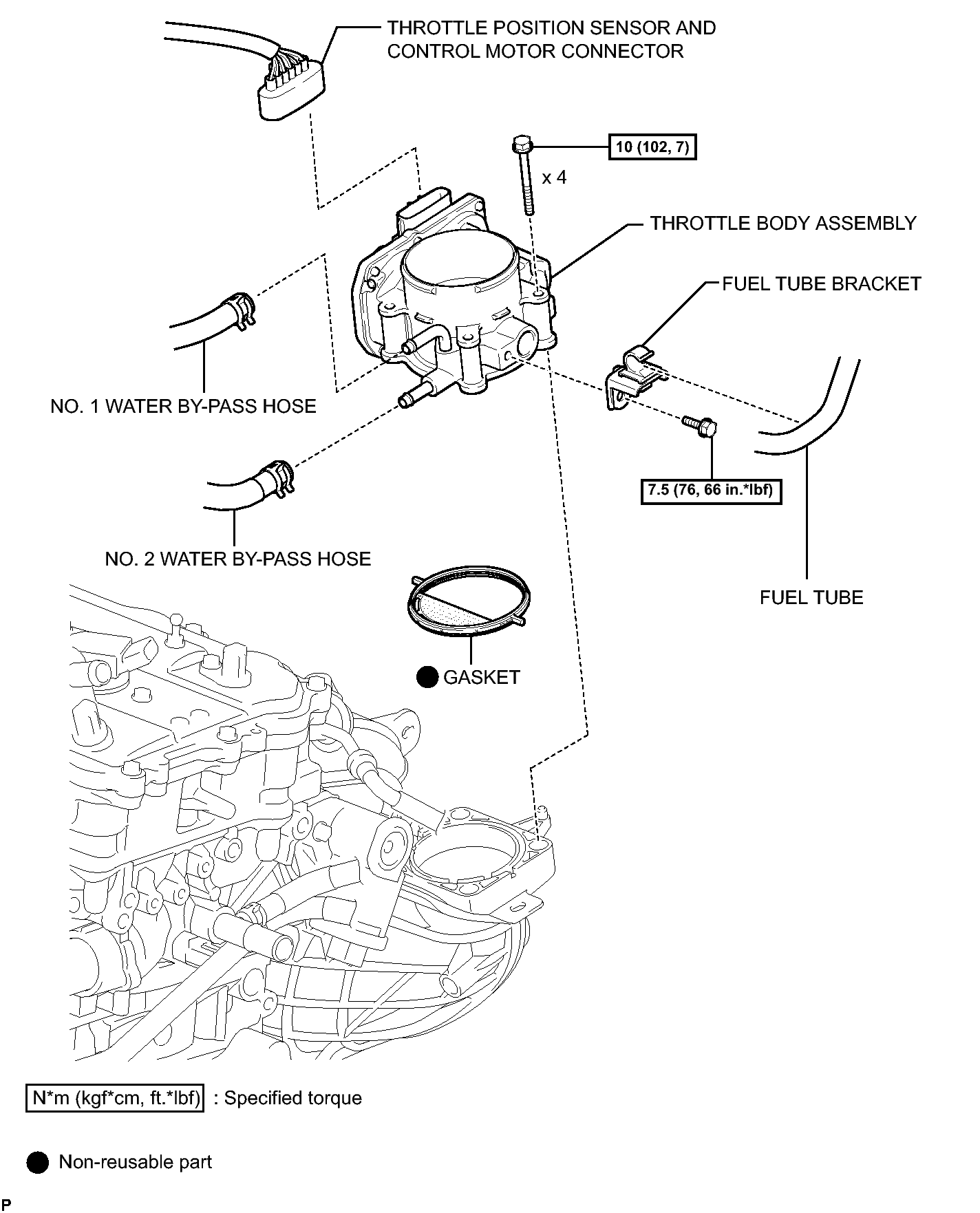

Fig 1: Identifying Throttle Body Replacement Components And Torque Specifications (3 Of 3)
GTY251242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
