Crankshaft Position Sensor: Components: Illustration

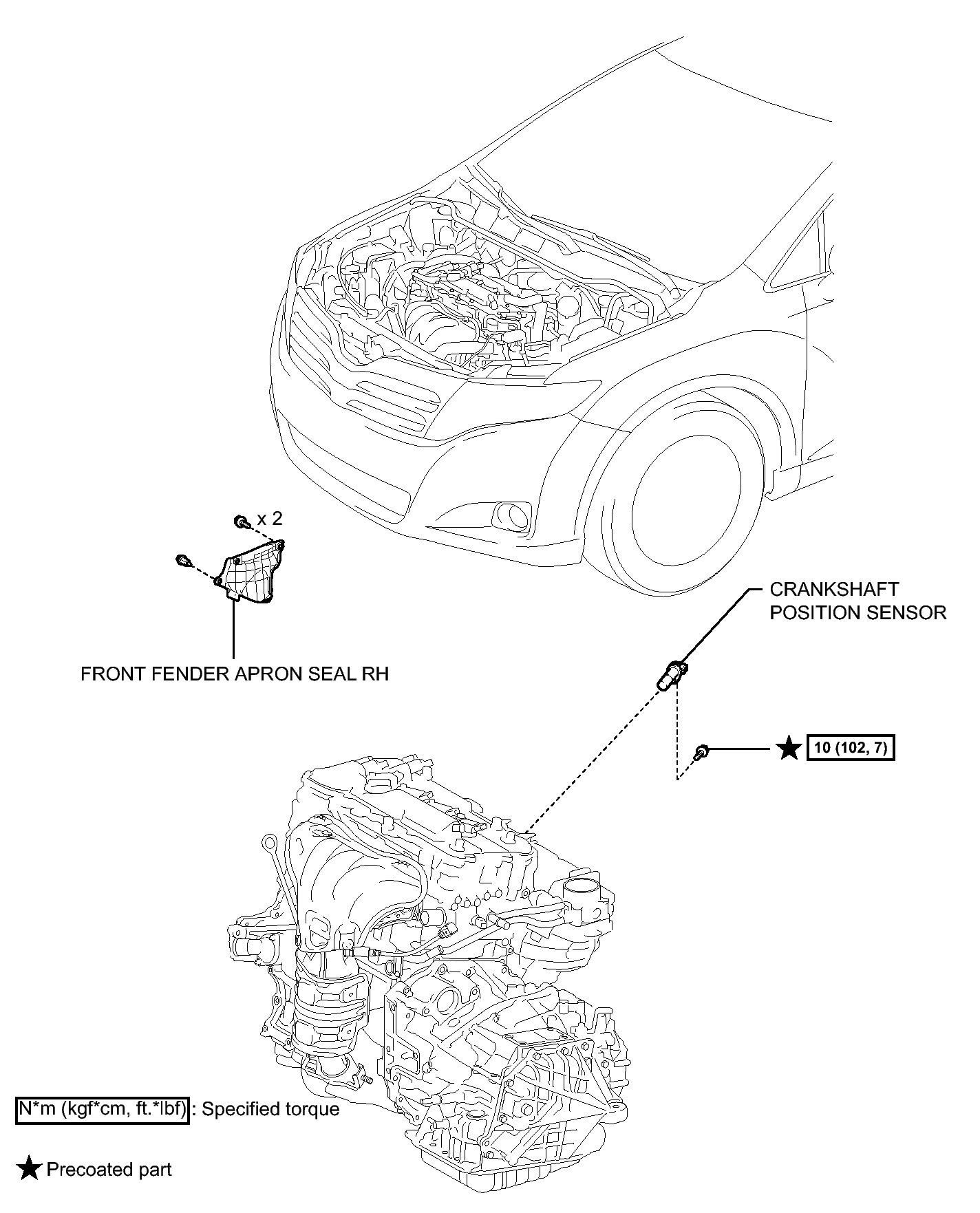

Fig 1: Identifying Crankshaft Position Sensor Replacement Components And Torque Specifications

GTY251471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
