Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| A/C Blower Assembly (Floor Shift) | Right side of dash. See Figure. |
| ADD Actuator (4.6L) | Front of engine. See Figure. |
| ADD Actuator (5.7L) (G1) | Front of engine. See Figure. |
| Air Pump (Bank 1) (4.0L) | Front of engine compartment. See Figure. |
| Air Pump (Bank 1) (4.6L) | Top of engine. See Figure. |
| Air Pump (Bank 1) (5.7L) | Front of engine compartment. See Figure. |
| Air Pump (Bank 2) (4.0L) | Right front of engine compartment. See Figure. |
| Air Pump (Bank 2) (4.6L) | Right front of engine compartment. See Figure. |
| Air Pump (Bank 2) (5.7L) | Right front of engine compartment. See Figure. |
| Back Door Window Regulator Motor (Q10) | Right rear of cab. See Figure. |
| Blower Motor (Column Shift) | Right side of dash. See Figure. |
| Blower Motor (Floor Shift) | Right side of dash. See Figure. |
| Front Door Lock Motor LH (CrewMax) (N4) | Driver's door. See Figure. |
| Front Door Lock Motor LH (Double Cab) | Driver's door. See Figure. |
| Front Door Lock Motor LH (Regular Cab) | Driver's door. See Figure. |
| Front Door Lock Motor RH (CrewMax) (M4) | Front passenger's door. See Figure. |
| Front Door Lock Motor RH (Double Cab) | Front passenger's door. See Figure. |
| Front Door Lock Motor RH (Regular Cab) | Front passenger's door. See Figure. |
| Front Lumbar Support Motor LH (Separate Seat) | Driver's seat. See Figure. |
| Front Lumbar Support Motor RH (Separate Seat) | Front passenger's seat. See Figure. |
| Front Power Seat Control ECU & Switch LH (Separate Seat) | Driver's seat. See Figure. |
| Front Power Seat Cushion Control Motor LH (Separate Seat) | Driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Lift Position) (Separate Seat) | Driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Reclining Position) (Separate Seat) | Driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Slide Position) (Separate Seat) | Driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Vertical Position) (Separate Seat) | Driver's seat. See Figure. |
| Front Power Seat Position Motor RH (Reclining Position) (Separate Seat) | Front passenger's seat. See Figure. |
| Front Power Seat Position Motor RH (Slide Position) (Separate Seat) | Front passenger's seat. See Figure. |
| Front Power Window Regulator Motor LH (CrewMax) (N3) | Driver's door. See Figure. |
| Front Power Window Regulator Motor LH (Double Cab) | Driver's door. See Figure. |
| Front Power Window Regulator Motor LH (Regular Cab) | Driver's door. See Figure. |
| Front Power Window Regulator Motor RH (CrewMax) (M3) | Front passenger's door. See Figure. |
| Front Power Window Regulator Motor RH (Double Cab) | Front passenger's door. See Figure. |
| Front Power Window Regulator Motor RH (Regular Cab) | Front passenger's door. See Figure. |
| Front Window Regulator Motor (4.0L) | Left rear of engine compartment. See Figure. |
| Front Window Regulator Motor (5.7L) | Left rear of engine compartment. See Figure. |

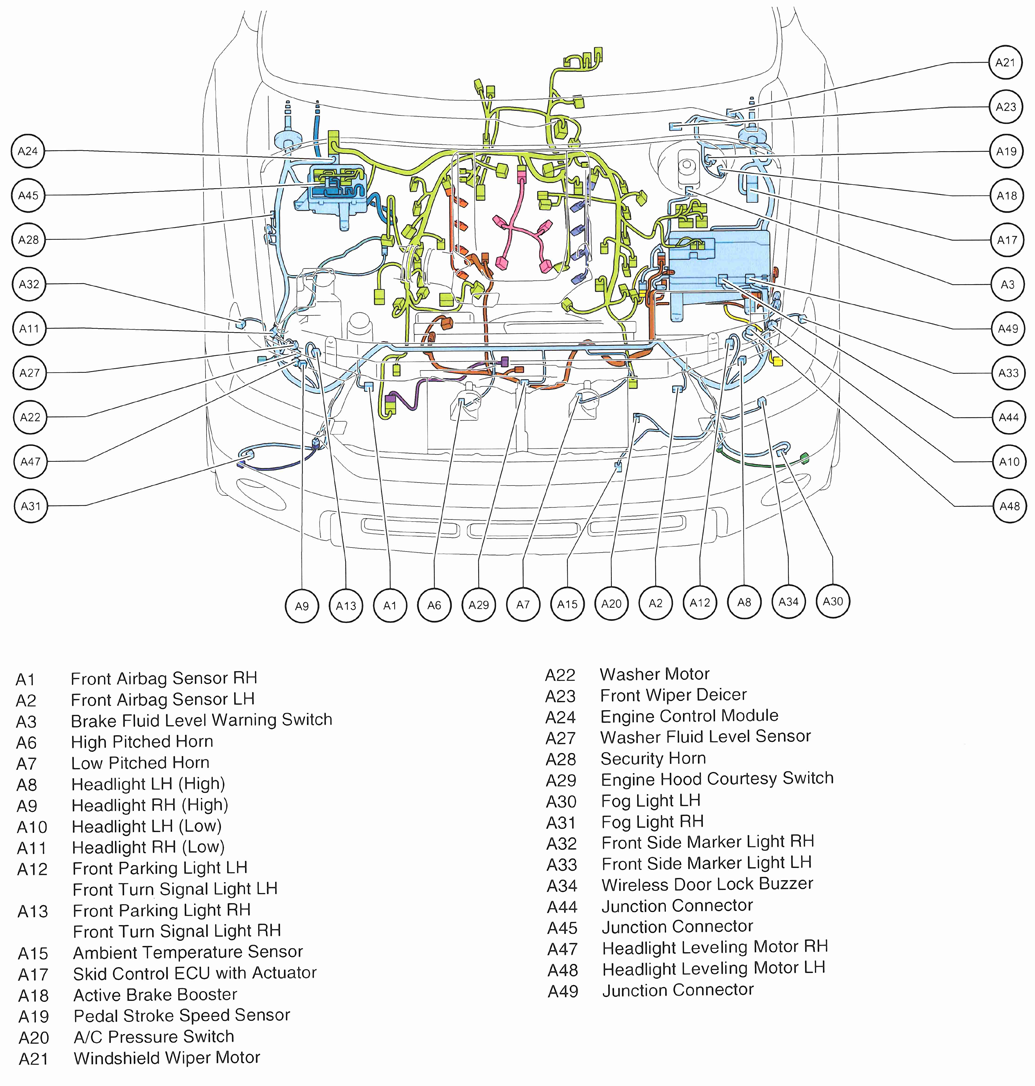

| Headlight Leveling Motor (Left Side) (4.6L) | Left side of engine compartment. See Figure. |
| Headlight Leveling Motor (Left Side) (5.7L) | Left side of engine compartment. See Figure. |
| Headlight Leveling Motor (Right Side) (4.6L) | Right side of engine compartment. See Figure. |
| Headlight Leveling Motor (Right Side) (5.7L) | Right front of engine compartment. See Figure. |
| Power Tilt Motor (Floor Shift) | Left side of dash. See Figure. |
| Rear Door Lock Motor LH (CrewMax) (O10) | Left rear door. See Figure. |
| Rear Door Lock Motor LH (Double Cab) | Left rear door. See Figure. |
| Rear Door Lock Motor RH (CrewMax) (O4) | Right rear door. See Figure. |
| Rear Door Lock Motor RH (Double Cab) | Right rear door. See Figure. |
| Rear Power Window Regulator Motor LH (CrewMax) (O9) | Left rear door. See Figure. |
| Rear Power Window Regulator Motor LH (Double Cab) | Left rear door. See Figure. |
| Rear Power Window Regulator Motor RH (CrewMax) (O3) | Right rear door. See Figure. |
| Rear Power Window Regulator Motor RH (Double Cab) | Right rear door. See Figure. |
| Seat Back Climate Control Blower (Left Side) | Driver seat. See Figure. |
| Seat Back Climate Control Blower (Right Side) | Passenger seat. See Figure. |
| Seat Cushion Climate Control Blower (Left Side) | Driver seat. See Figure. |
| Seat Cushion Climate Control Blower (Right Side) | Front passenger seat. See Figure. |
| Starter (4.0L) | Left side of engine. See Figure. |
| Secondary Air Injection Pump (5.7L) | In front of radiator. See Figure. |
| Starter (4.6L) | Left side of engine. See Figure. |
| Starter (5.7L) | Right side of engine. See Figure. |
| Transfer Shift Actuator (4.6L) | Transfer case assembly. See Figure. |
| Transfer Shift Actuator (5.7L) | Transfer case assembly. See Figure. |
| Washer Motor (4.0L) | Right front of engine compartment. See Figure. |
| Washer Motor (4.6L) | Right front of engine compartment. See Figure. |
| Washer Motor (5.7L) | Right front of engine compartment. See Figure. |
