Camshaft Oil Control Valve: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 9
  2. REMOVE AIR CLEANER HOSE ASSEMBLY  . Refer to REMOVAL - Step 10
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)

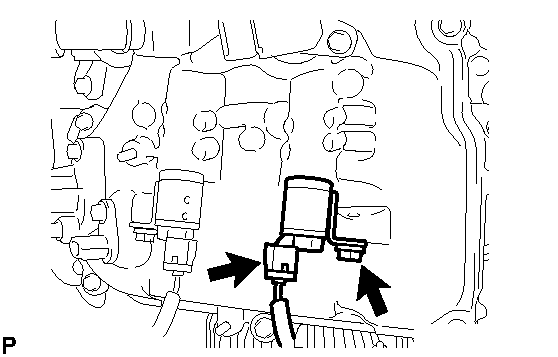

    Fig 1: Locating Bolt & Oil Control Valve (Exhaust Side Of Bank 1)
    GTY147856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
  4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)

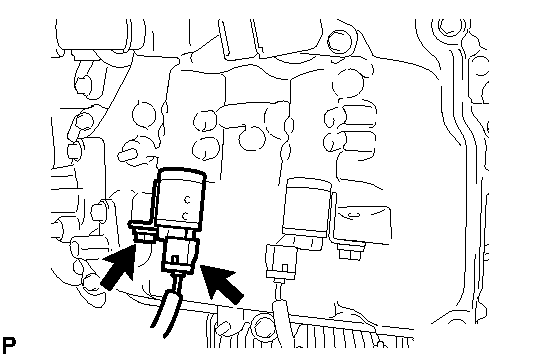

    Fig 2: Locating Bolt & Oil Control Valve (Intake Side Of Bank 1)
    GTY147857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
  5. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)

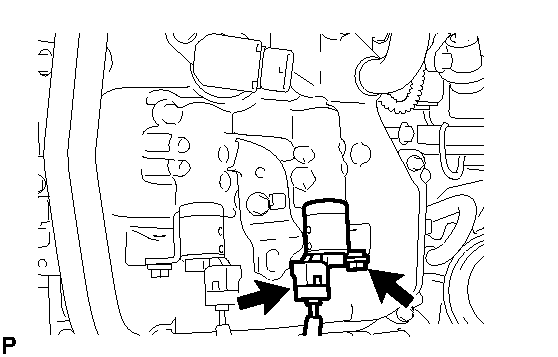

    Fig 3: Locating Bolt & Oil Control Valve (Intake Side Of Bank 2)
    GTY147858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
  6. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)

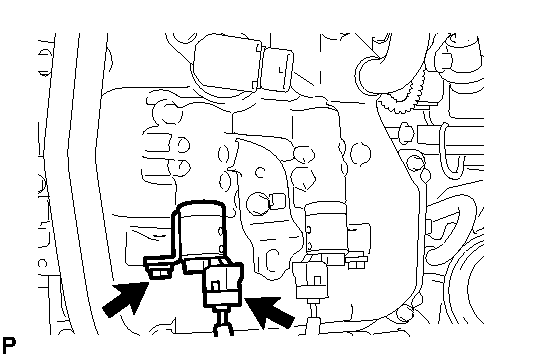

    Fig 4: Locating Bolt & Oil Control Valve (Exhaust Side Of Bank 2)
    GTY126076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
