Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00440830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash (Floor Shift)

G00476776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Dash (Column Shift)

G00476777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Vehicle Overview (Double Cab)

G00440833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Vehicle Overview (Regular Cab)

G00440834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Seats (Separate Seat)

G00440835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Room R/B & Engine Room J/B

G00467423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Compartment (5.7L)

G00476778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

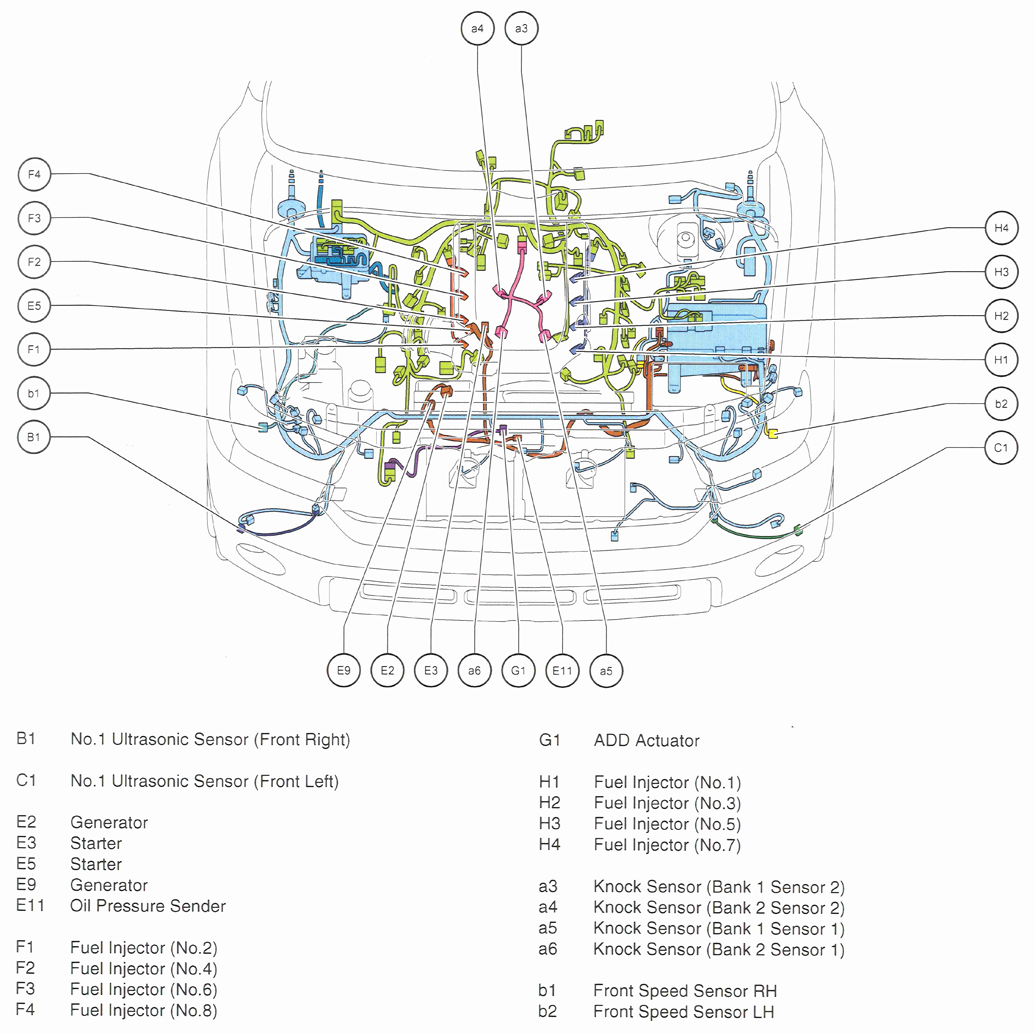

Fig 9: Engine Compartment (5.7L)

G00476779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment (5.7L)

G00467424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment (5.7L)

G00467425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

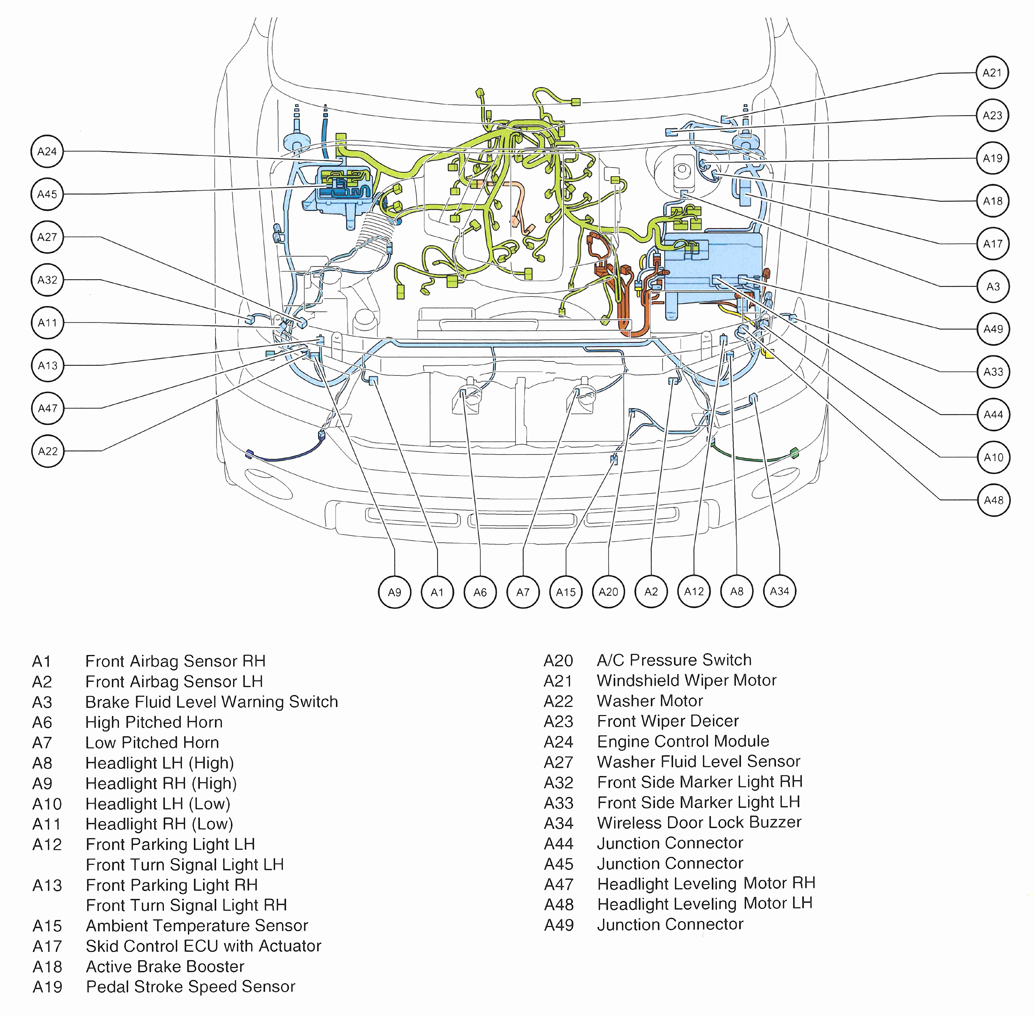

Fig 12: Engine Compartment (4.0L)

G00476784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment (4.0L)

G00440847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Compartment (4.0L)

G00440848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Compartment (4.0L)

G00467428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash (Floor Shift)

G00440850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

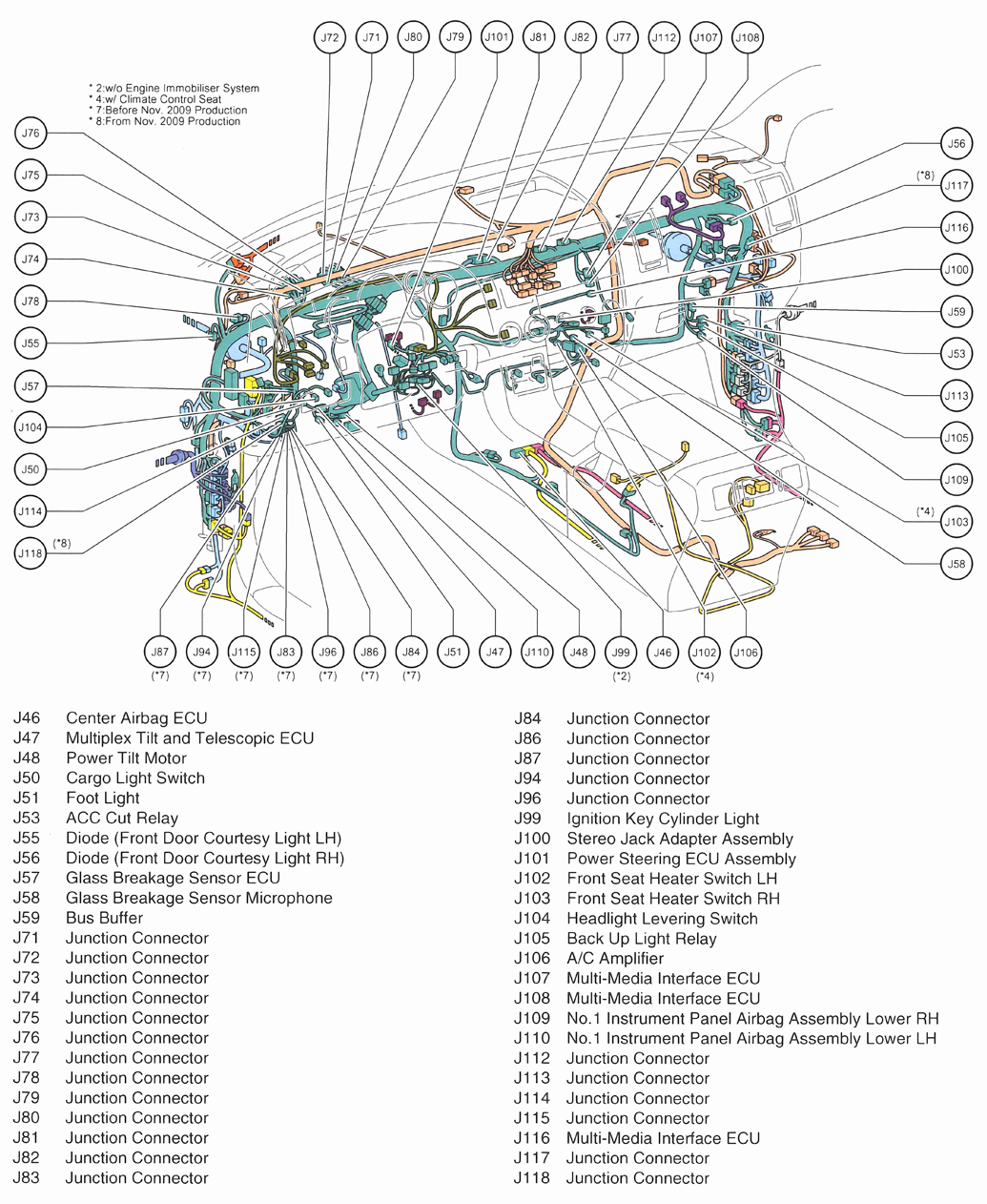

Fig 17: Dash (Floor Shift)

G00476785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Dash (Floor Shift)

G00440852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Dash (Floor Shift)

G00440853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Dash (Column Shift)

G00440854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

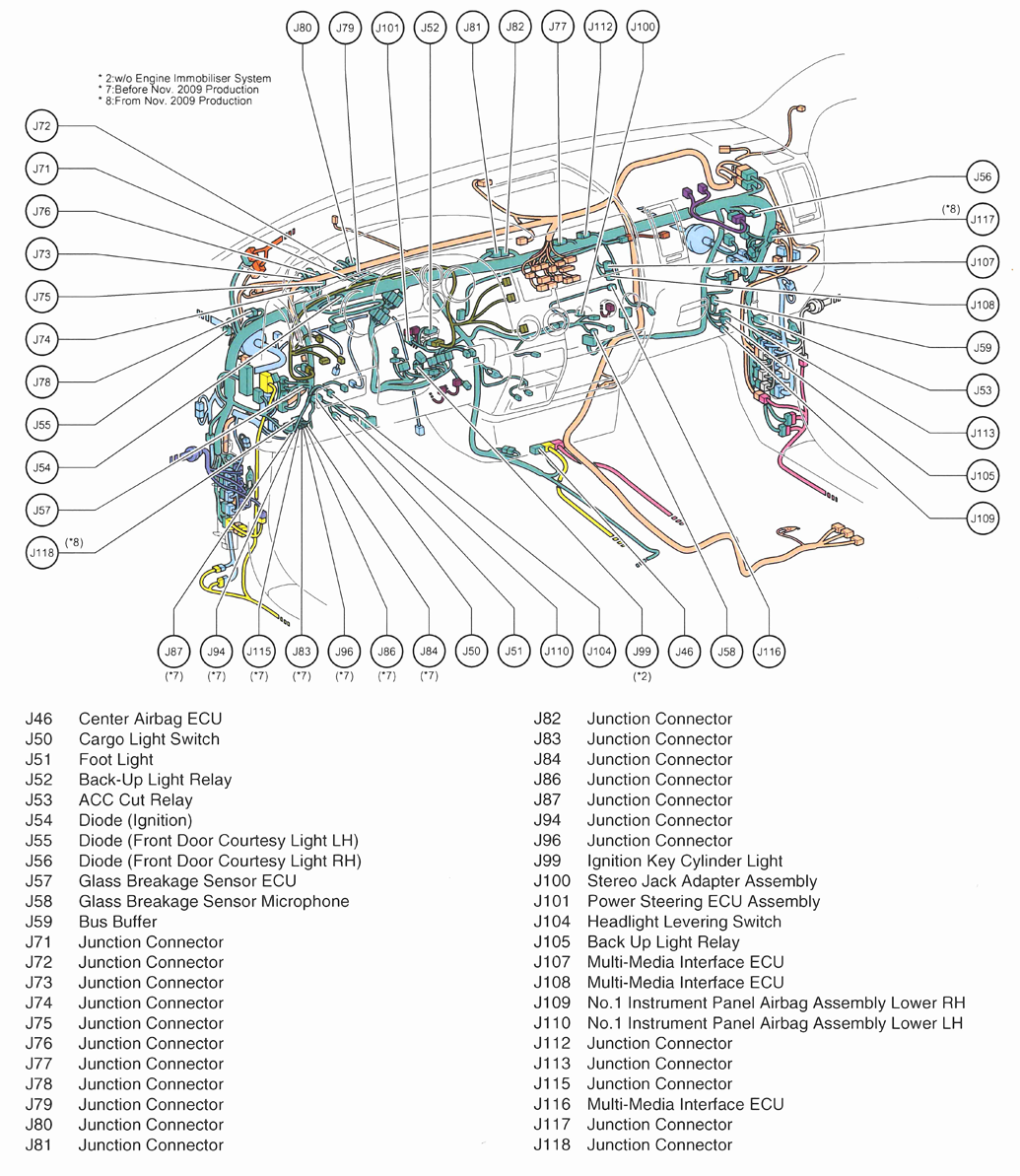

Fig 21: Dash (Column Shift)

G00476786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Dash (Column Shift)

G00440856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Vehicle Overview (Double Cab)

G00440858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Vehicle Overview (Double Cab)

G00476788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Vehicle Overview (Regular Cab)

G00440860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

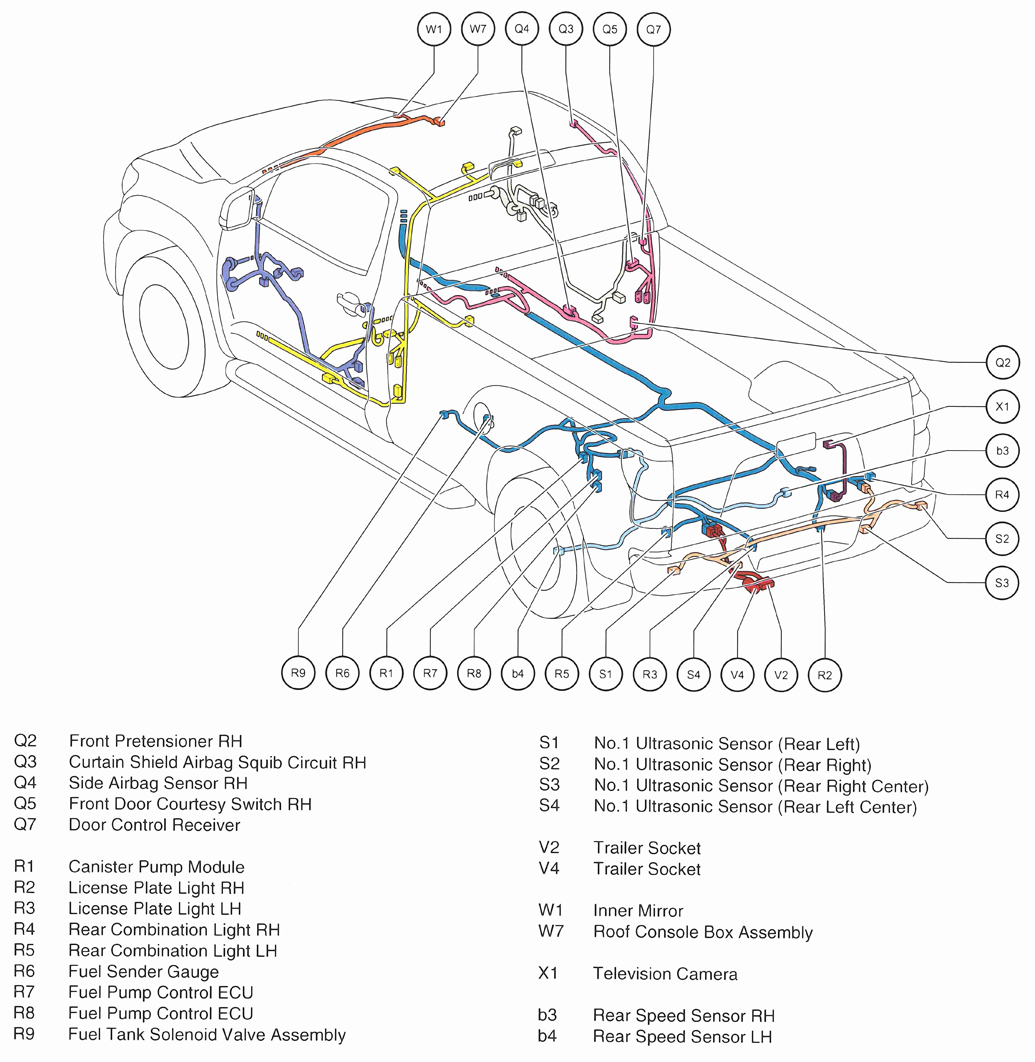

Fig 26: Regular Cab (Regular Cab)

G00476789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

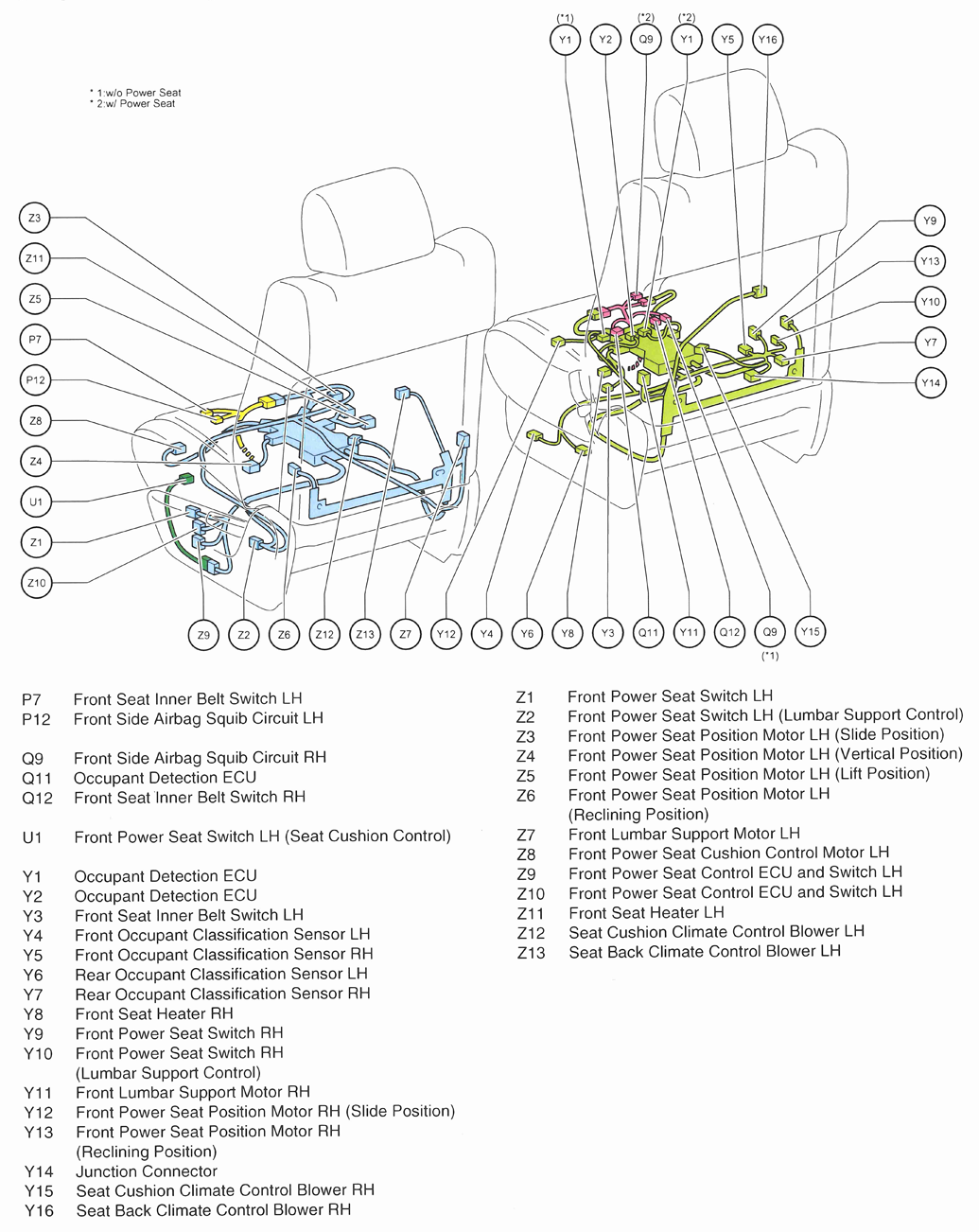

Fig 27: Front Seats (Separate Seat)

G00476790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Front Seat (Bench Seat)

G00440863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Engine Compartment (5.7L)

G00467430

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Engine Compartment (5.7L)

G00440865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 31: Engine Compartment (4.0L)

G00440868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 32: Engine Compartment (4.0L)

G00440869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

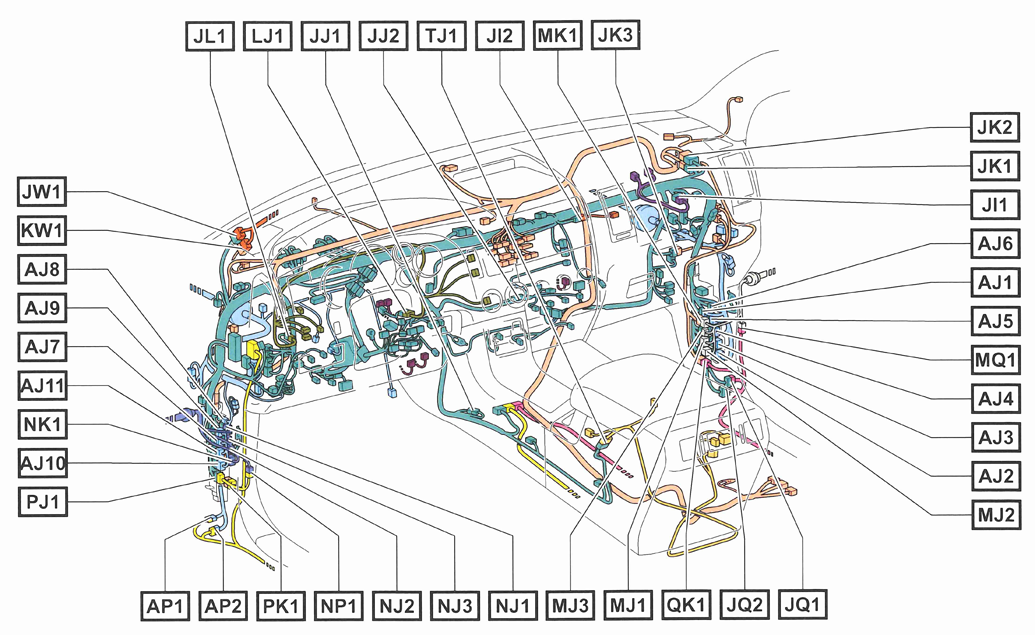

Fig 33: Dash (Floor Shift)

G00476793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 34: Dash (Floor Shift)

G00440871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

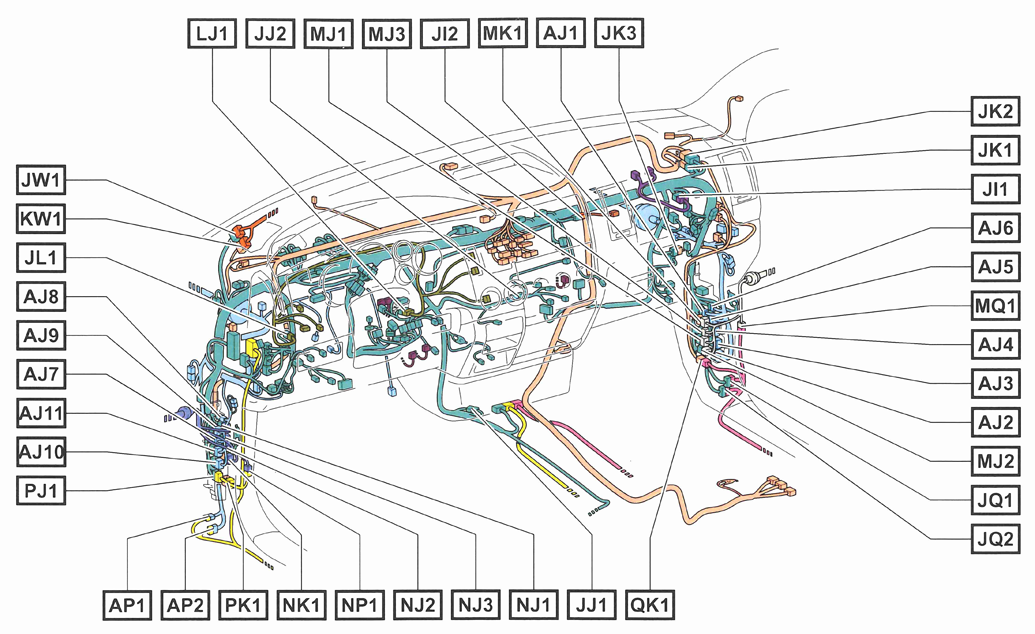

Fig 35: Dash (Column Shift)

G00476794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 36: Dash (Column Shift)

G00440873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 37: Vehicle Overview (Except Regular Cab)

G00440874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

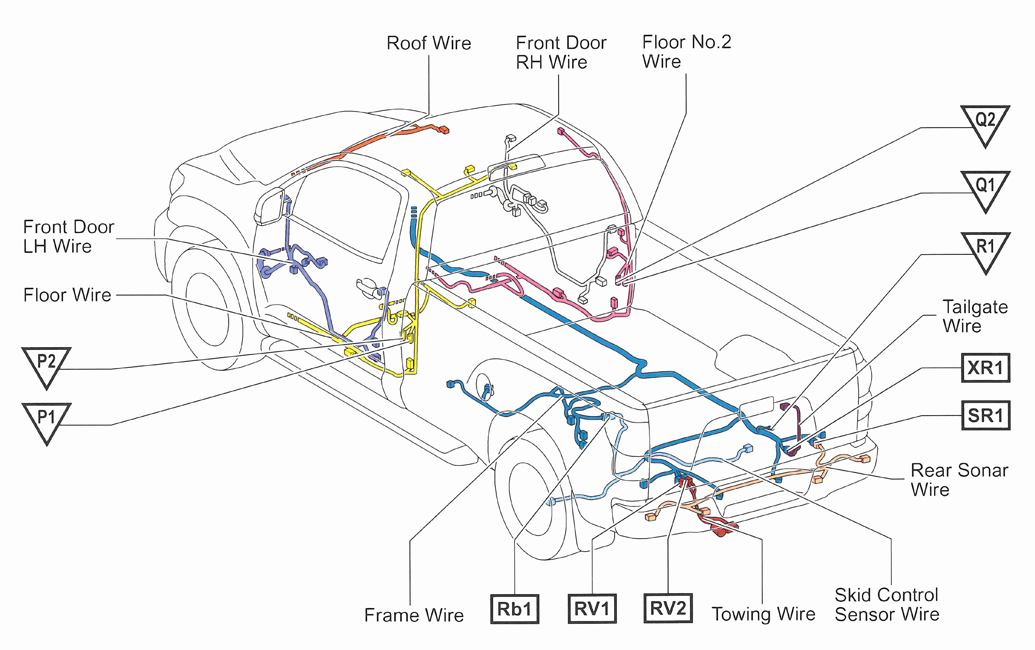

Fig 38: Vehicle Overview (Regular Cab)

G00476795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 39: Separate Seat

G00467434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 40: Bench Seat

G00440877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 41: Vehicle Overview (CrewMax)

G00476787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 42: Vehicle Overview (CrewMax)

G00463985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

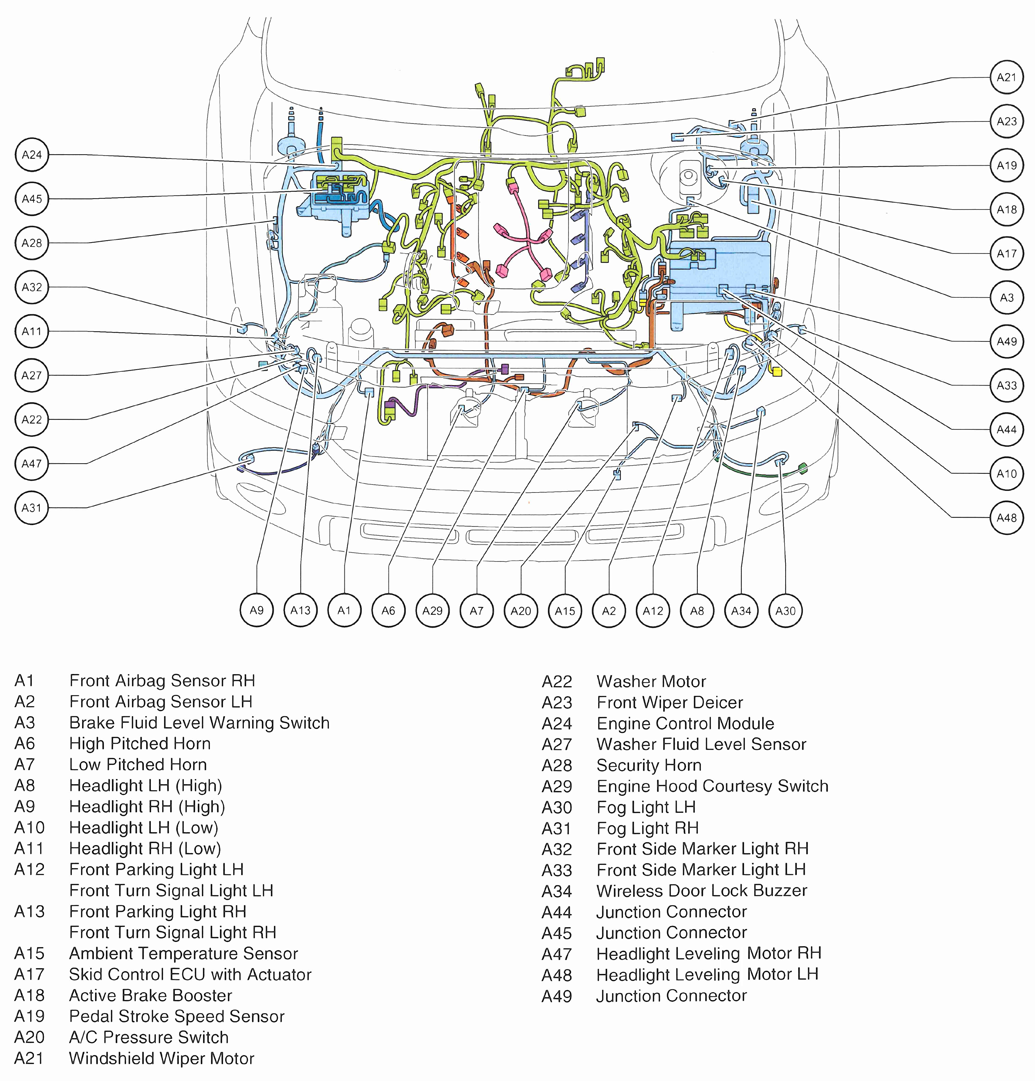

Fig 43: Engine Compartment (4.6L)

G00476780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

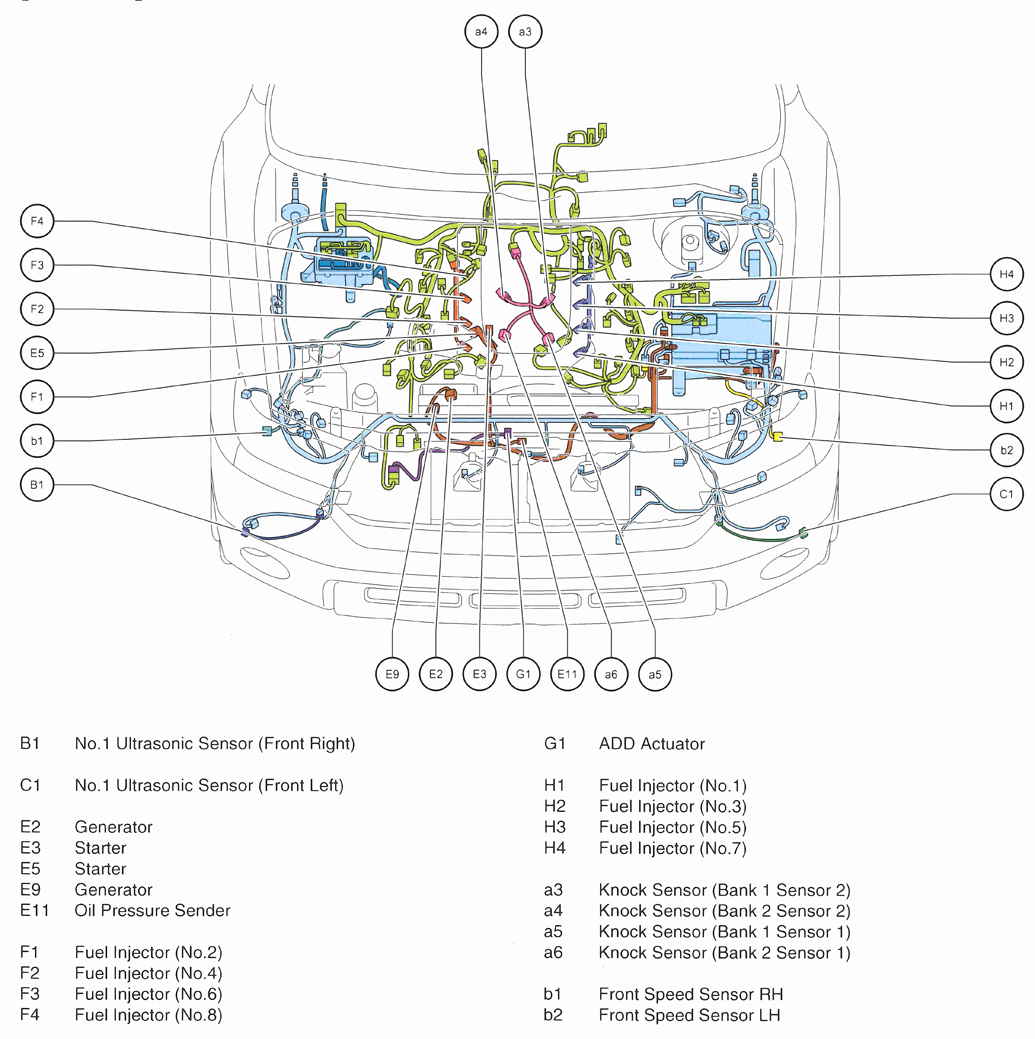

Fig 44: Engine Compartment (4.6L)

G00476781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

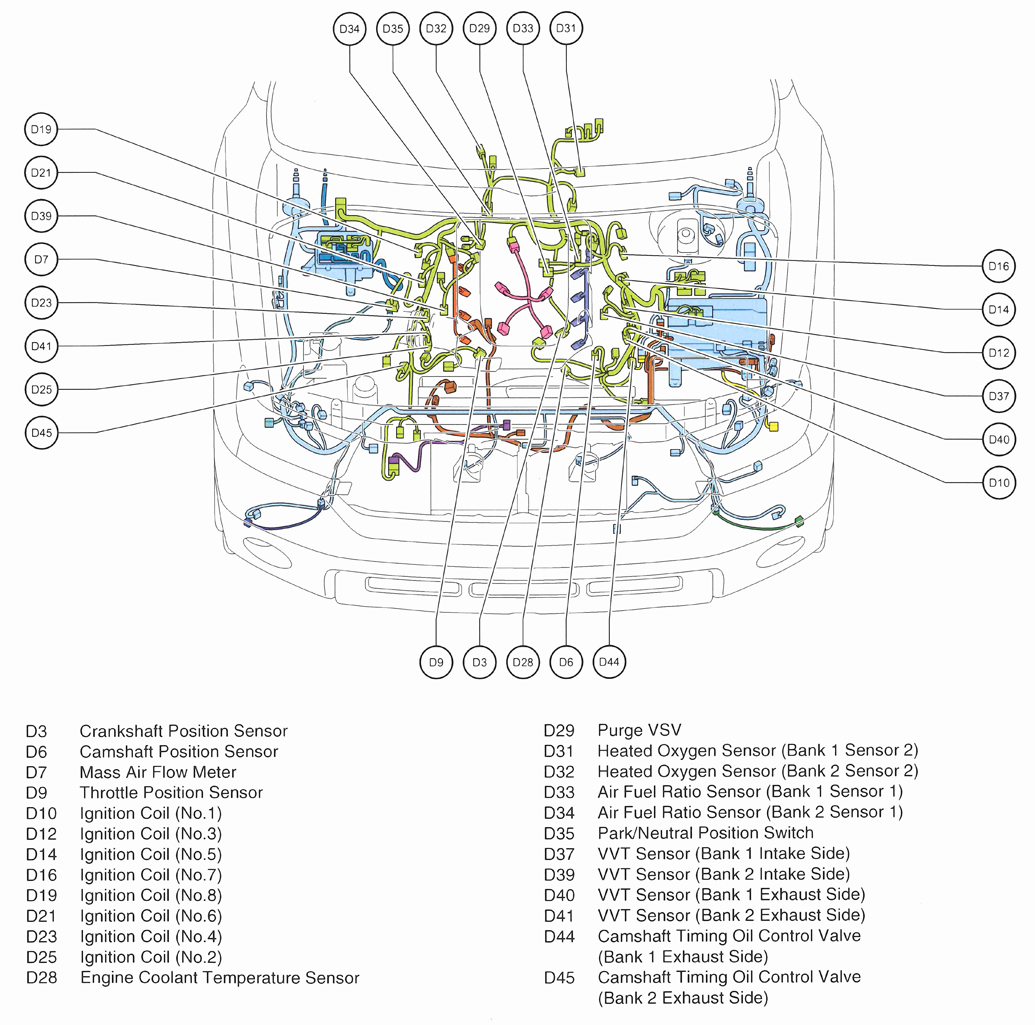

Fig 45: Engine Compartment (4.6L)

G00476782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

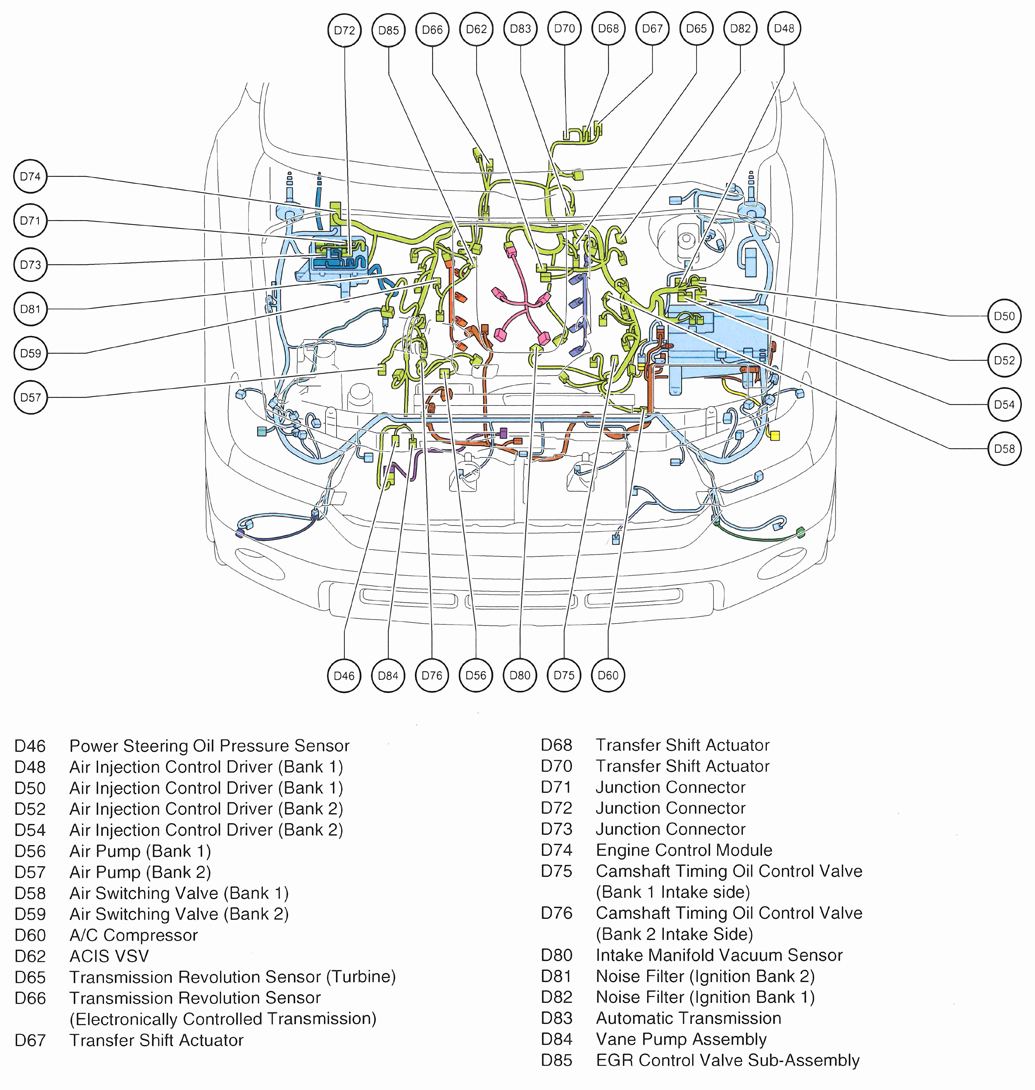

Fig 46: Engine Compartment (4.6L)

G00476783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

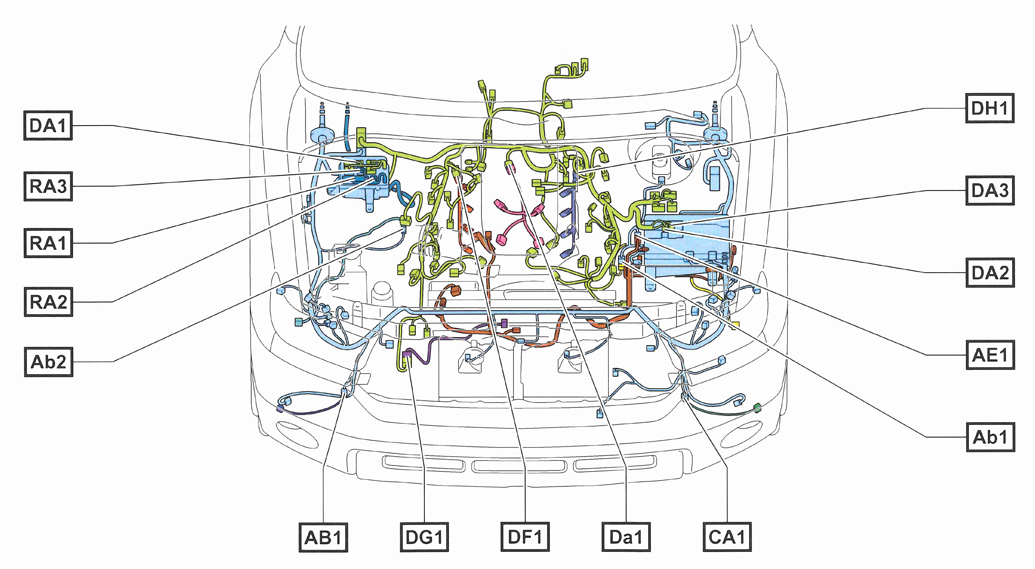

Fig 47: Engine Compartment (4.6L)

G00476791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

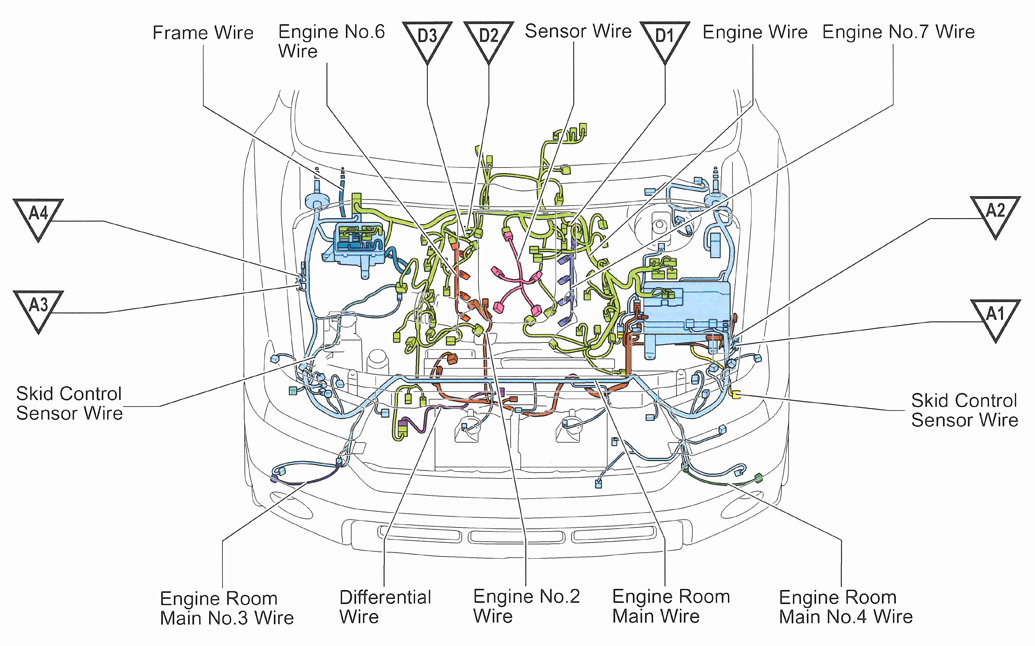

Fig 48: Engine Compartment (4.6L)

G00476792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 49: In Front of Radiator (5.7L)

G00573083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
