Parking Assist (Rear View Monitor w/o Navigation System): Notes

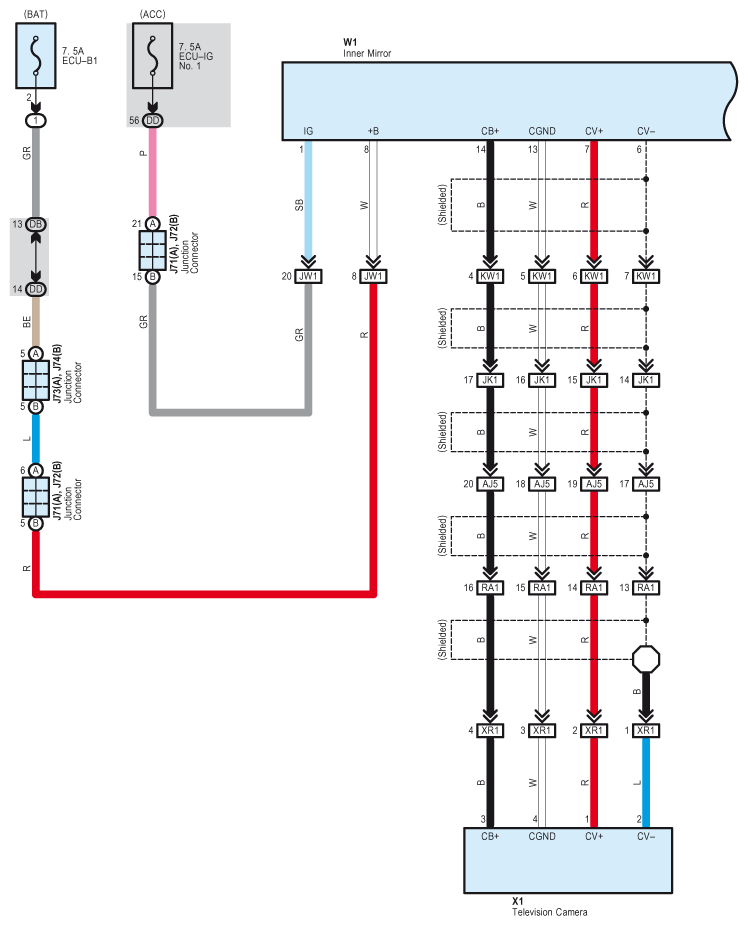

Fig 1: Parking Assist (Rear View Monitor W/O Navigation System) - Circuit Diagram (1 Of 2)
G07597824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

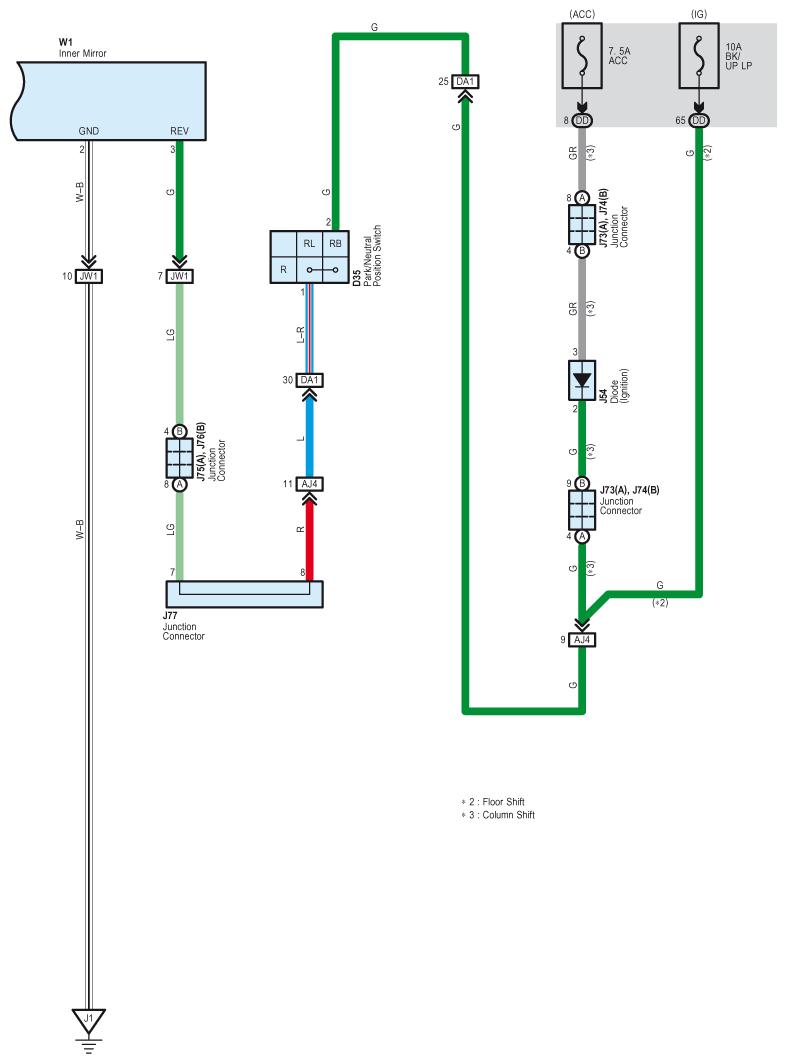

Fig 2: Parking Assist (Rear View Monitor W/O Navigation System) - Circuit Diagram (2 Of 2)
G07597825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
