ABS, TRAC, VSC and Auto LSD: Notes

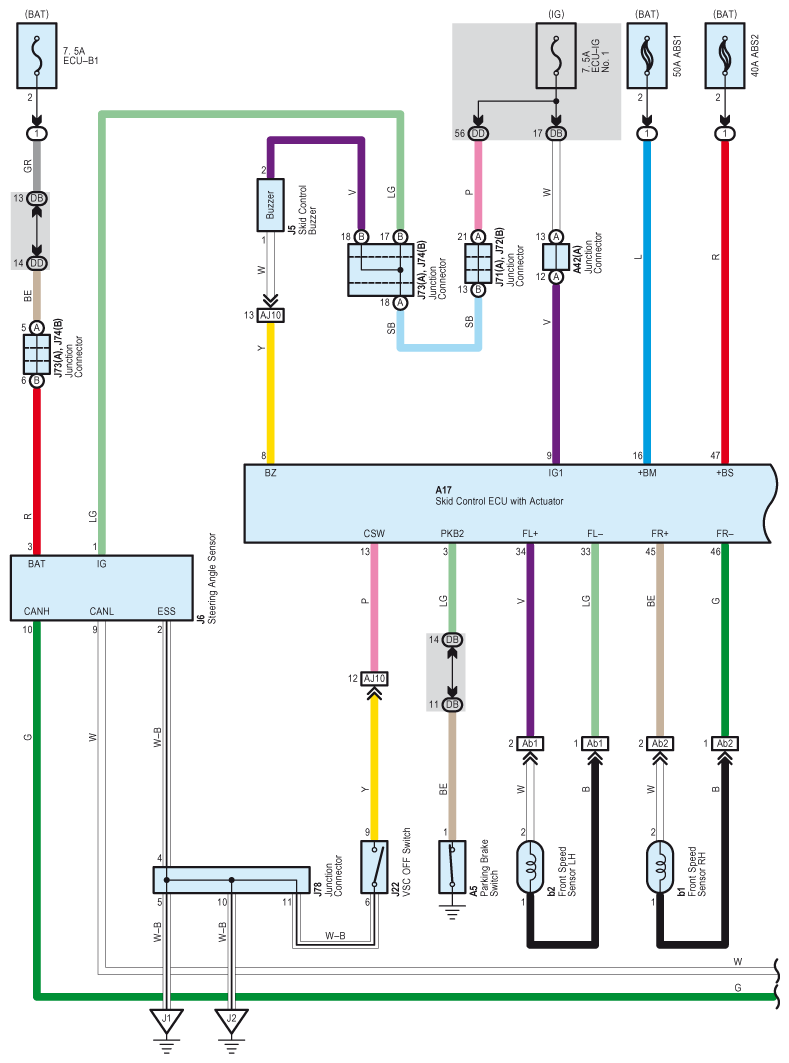

Fig 1: ABS, TRAC, VSC And AUTO LSD - Circuit Diagram (1 Of 4)
G07597697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

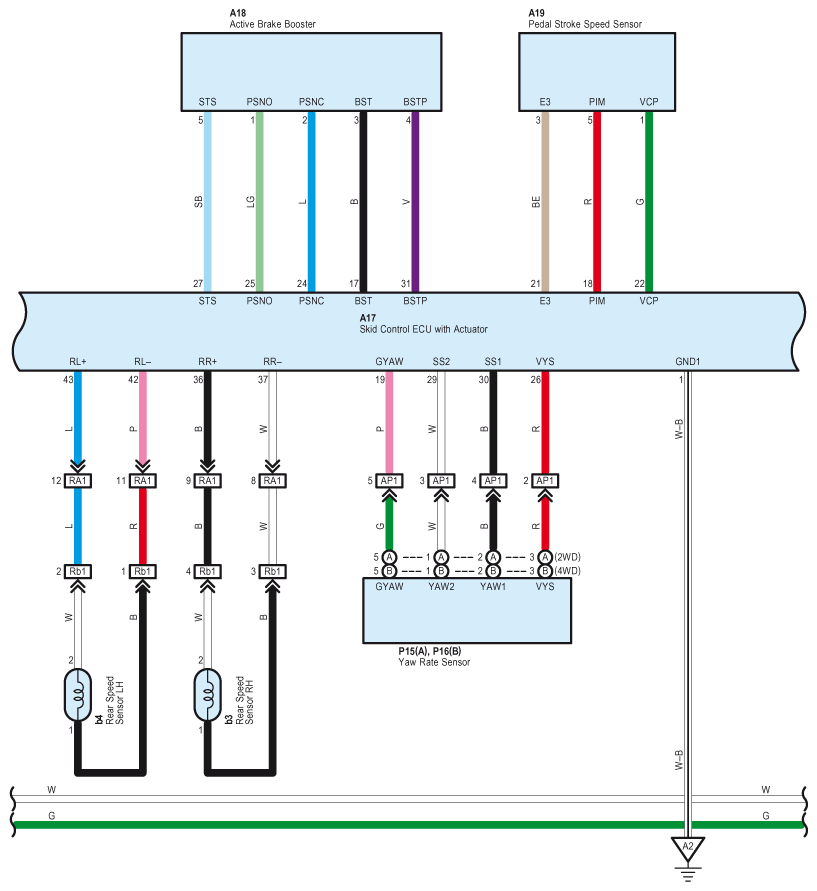

Fig 2: ABS, TRAC, VSC And AUTO LSD - Circuit Diagram (2 Of 4)
G07597698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

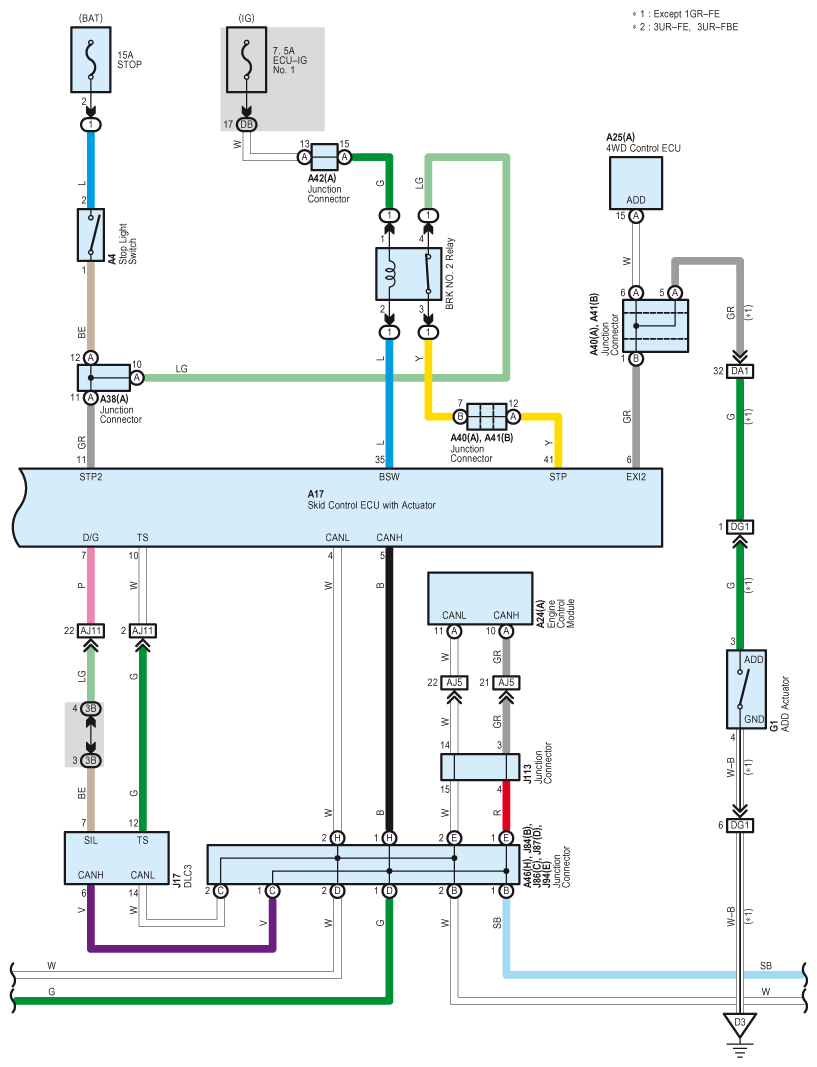

Fig 3: ABS, TRAC, VSC And AUTO LSD - Circuit Diagram (3 Of 4)
G07597699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

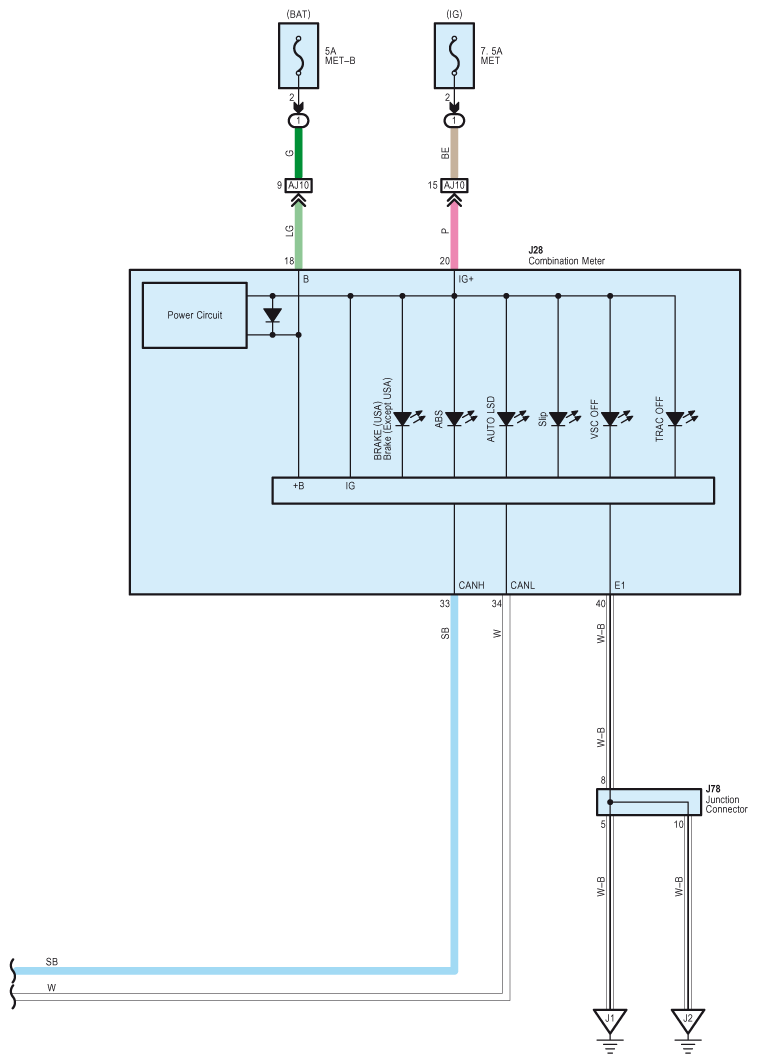

Fig 4: ABS, TRAC, VSC And AUTO LSD - Circuit Diagram (4 Of 4)
G07597700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
