System Diagram

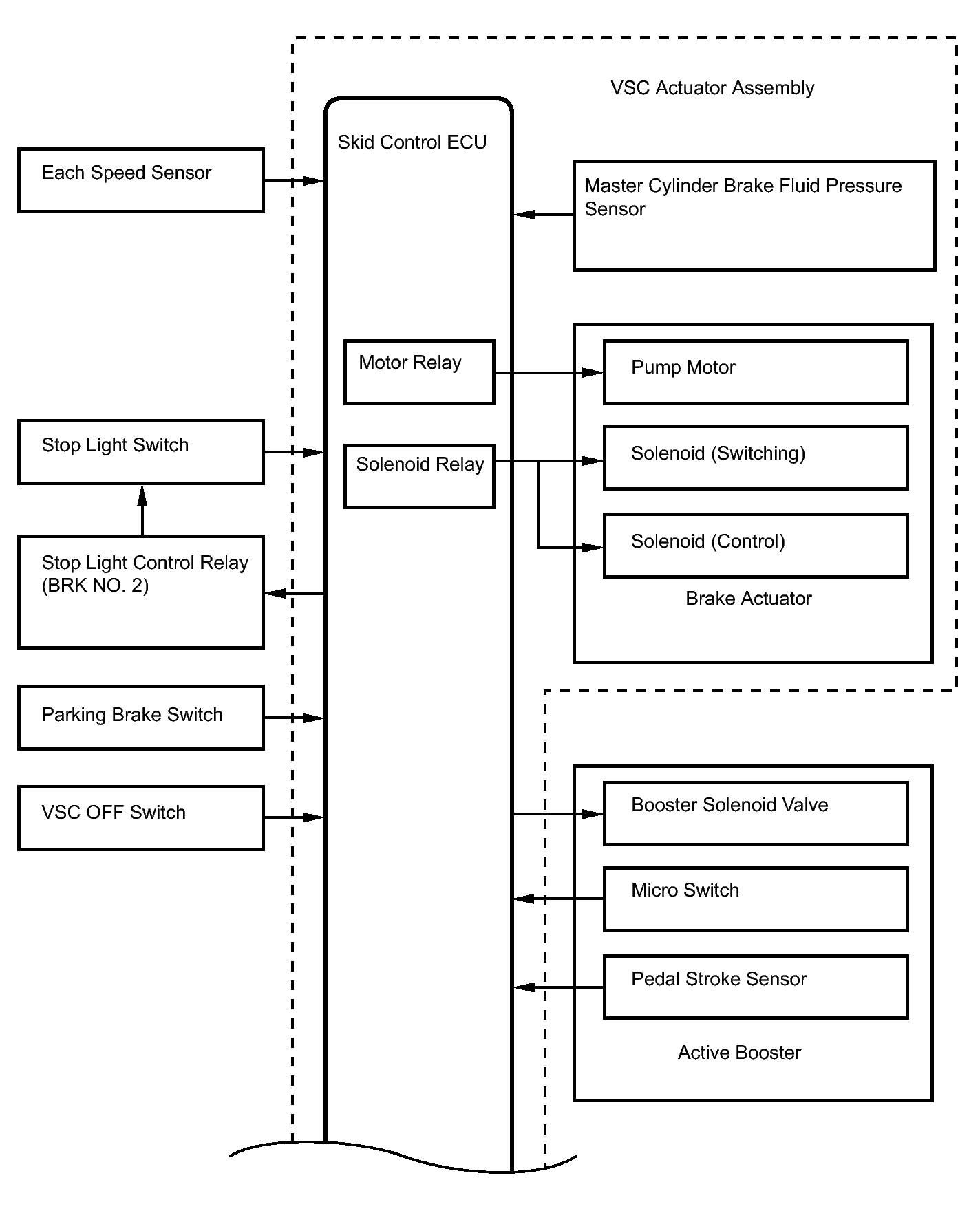

Fig 1: Identifying Vehicle Stability Control System Diagram (1 Of 2)
GTY187883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

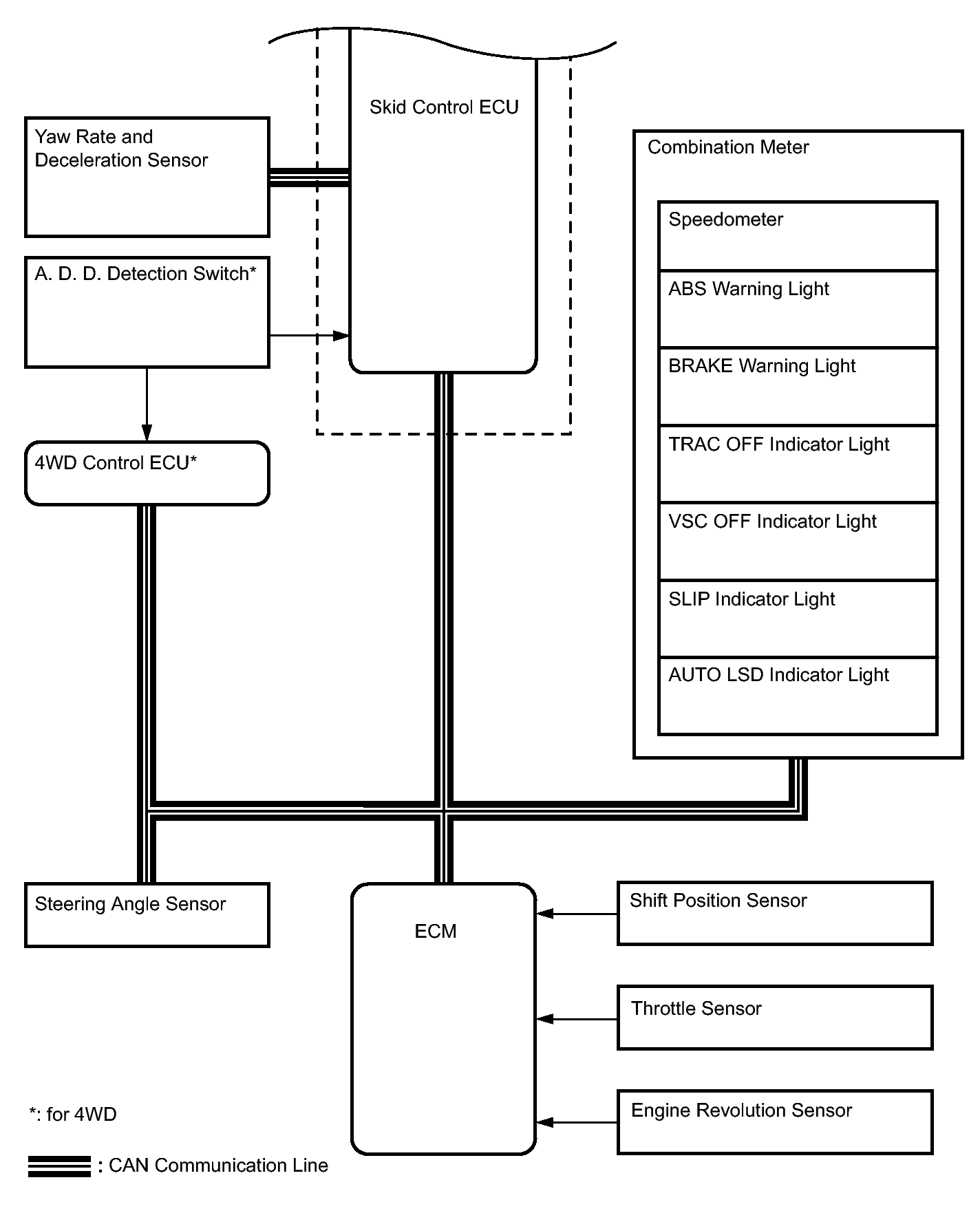

Fig 2: Identifying Vehicle Stability Control System Diagram (2 Of 2)
GTY188144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE:

Sender Receiver Signal Line
ECM Skid control ECU Throttle position signal CAN
ECM Skid control ECU Engine revolution signal CAN
ECM Skid control ECU Accelerator pedal position signal CAN
ECM Skid control ECU Intake temperature sensor signal CAN
Skid control ECU ECM Yaw rate and deceleration signal CAN
Steering angle sensor ECM Steering angle signal CAN
Skid control ECU ECM Throttle opening angle request signal CAN
