Cruise Control System (Diagnostics - Introduction)
>>
Cruise Control System
>>
System Diagram
>>
System Diagram
System Diagram

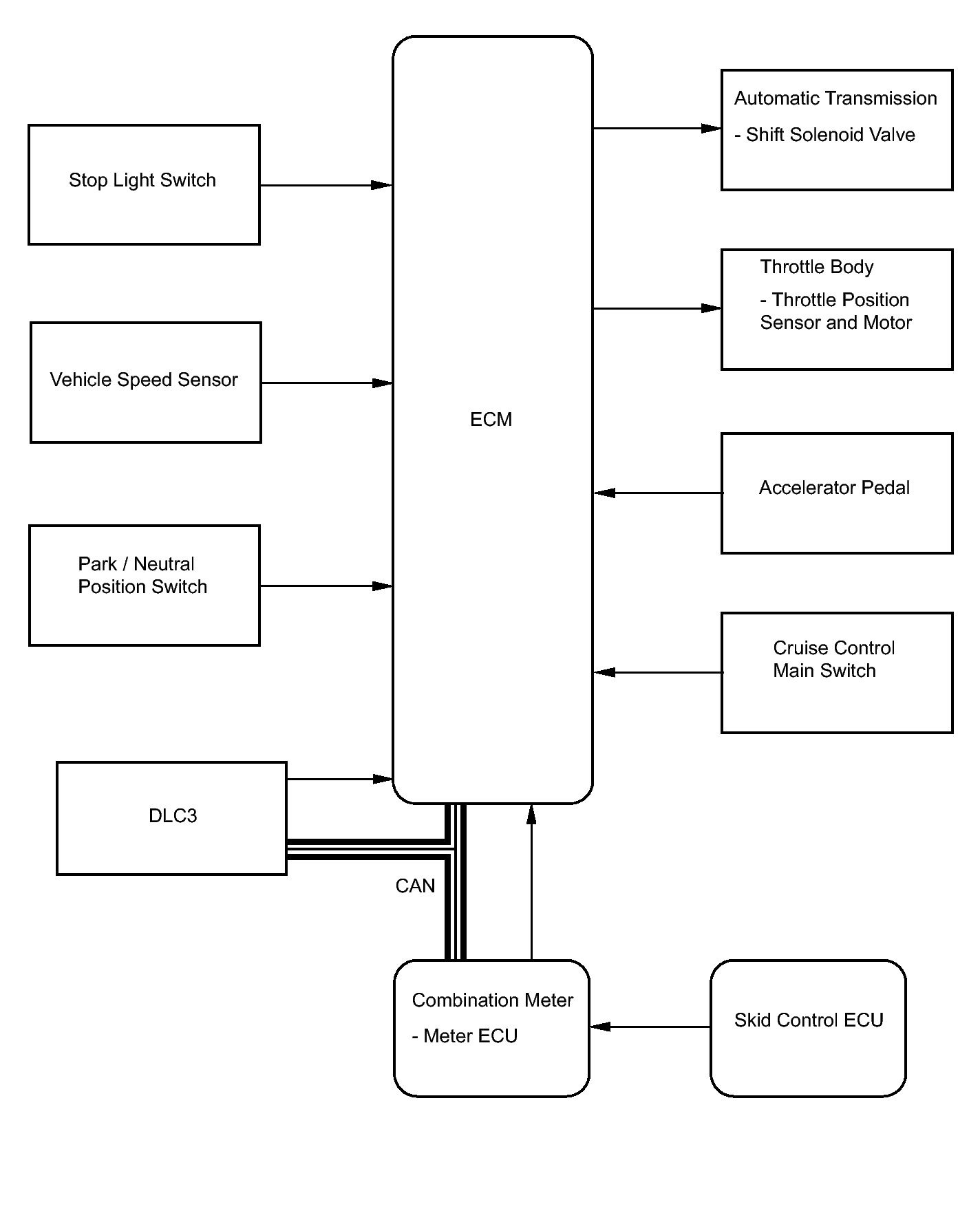

Fig 1: Cruise Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE:
Sender
Receiver
Signal
Line
ECM
Meter ECU
CRUISE main indicator operation signal
CAN
