Power Window (W/o Jam Protection): Notes

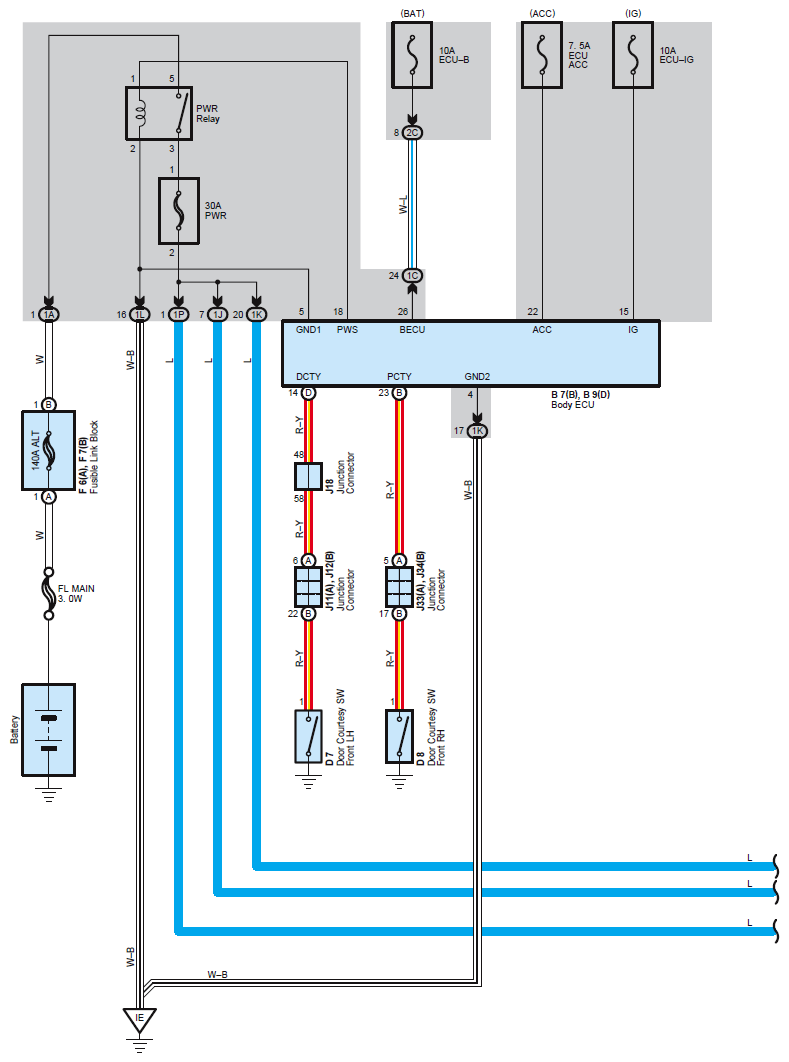

Fig 1: Power Window (W/O Jam Protection) - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

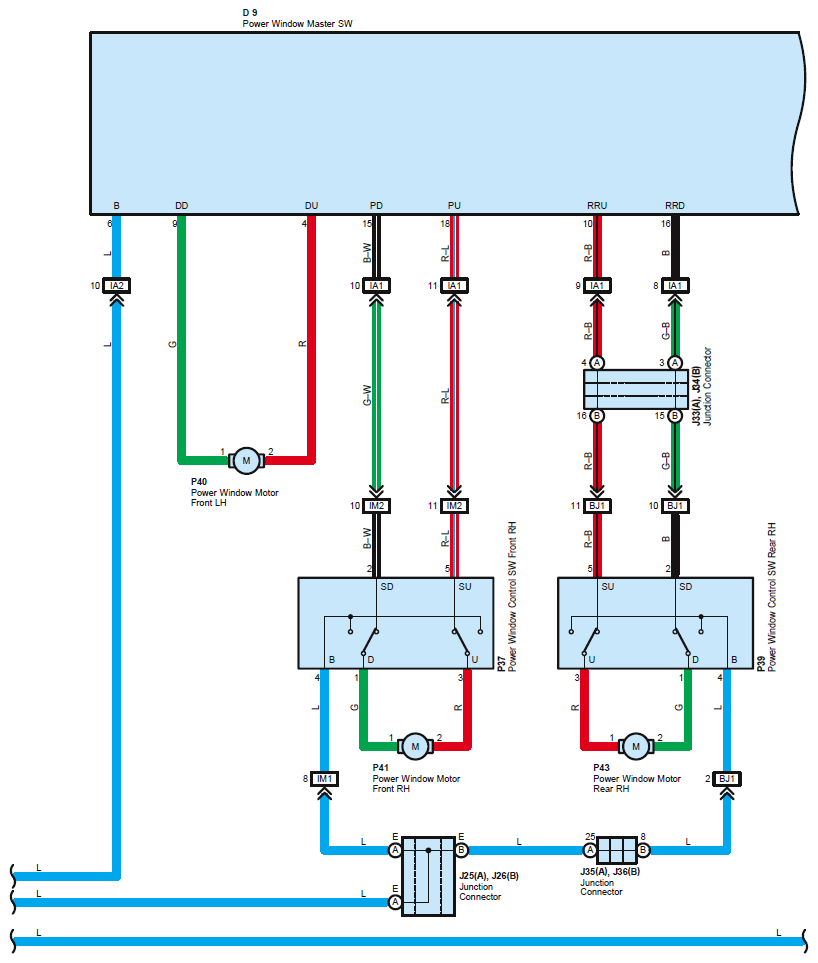

Fig 2: Power Window (W/O Jam Protection) - Circuit Diagram (2 Of 3)

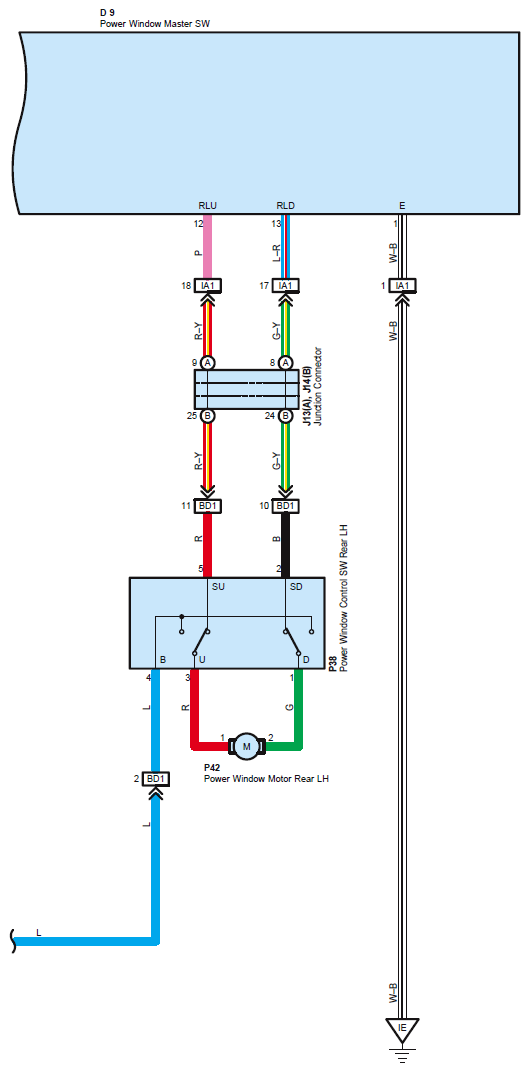

Fig 3: Power Window (W/O Jam Protection) - Circuit Diagram (3 Of 3)
