Multiple Communication System (CAN): Notes

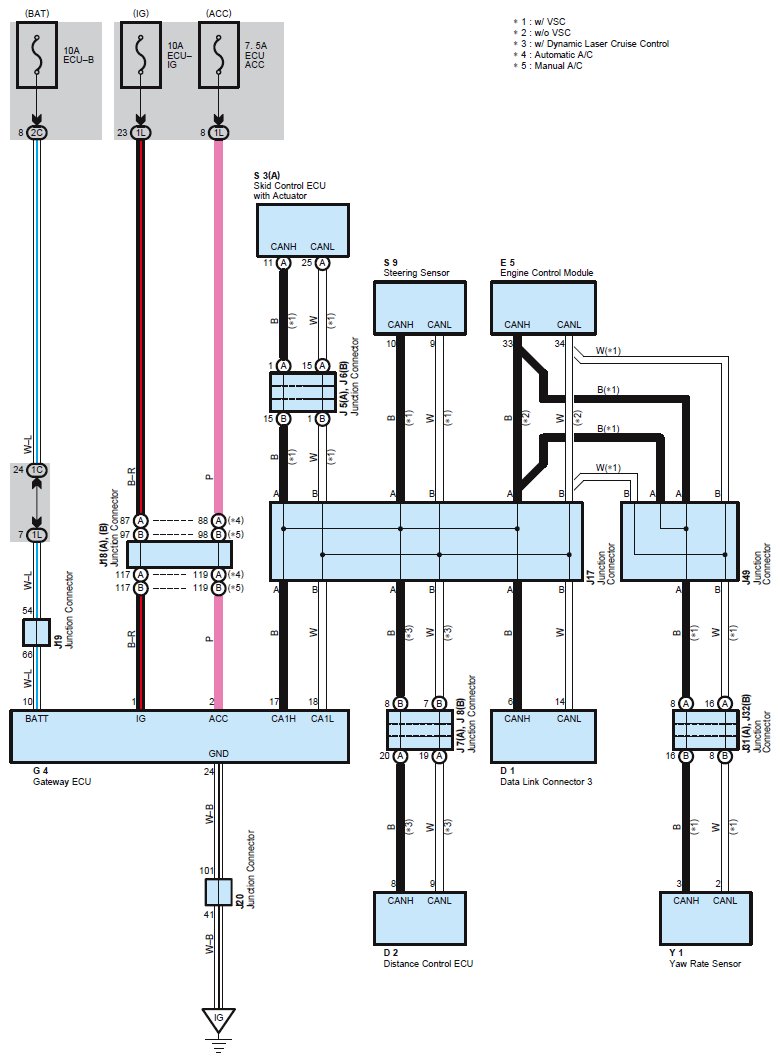

Fig 1: Multiple Communication System (CAN) - Circuit Diagram

G07596347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
