Fuel Injector: Components: Illustration

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (1 Of 4)
GTY222221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

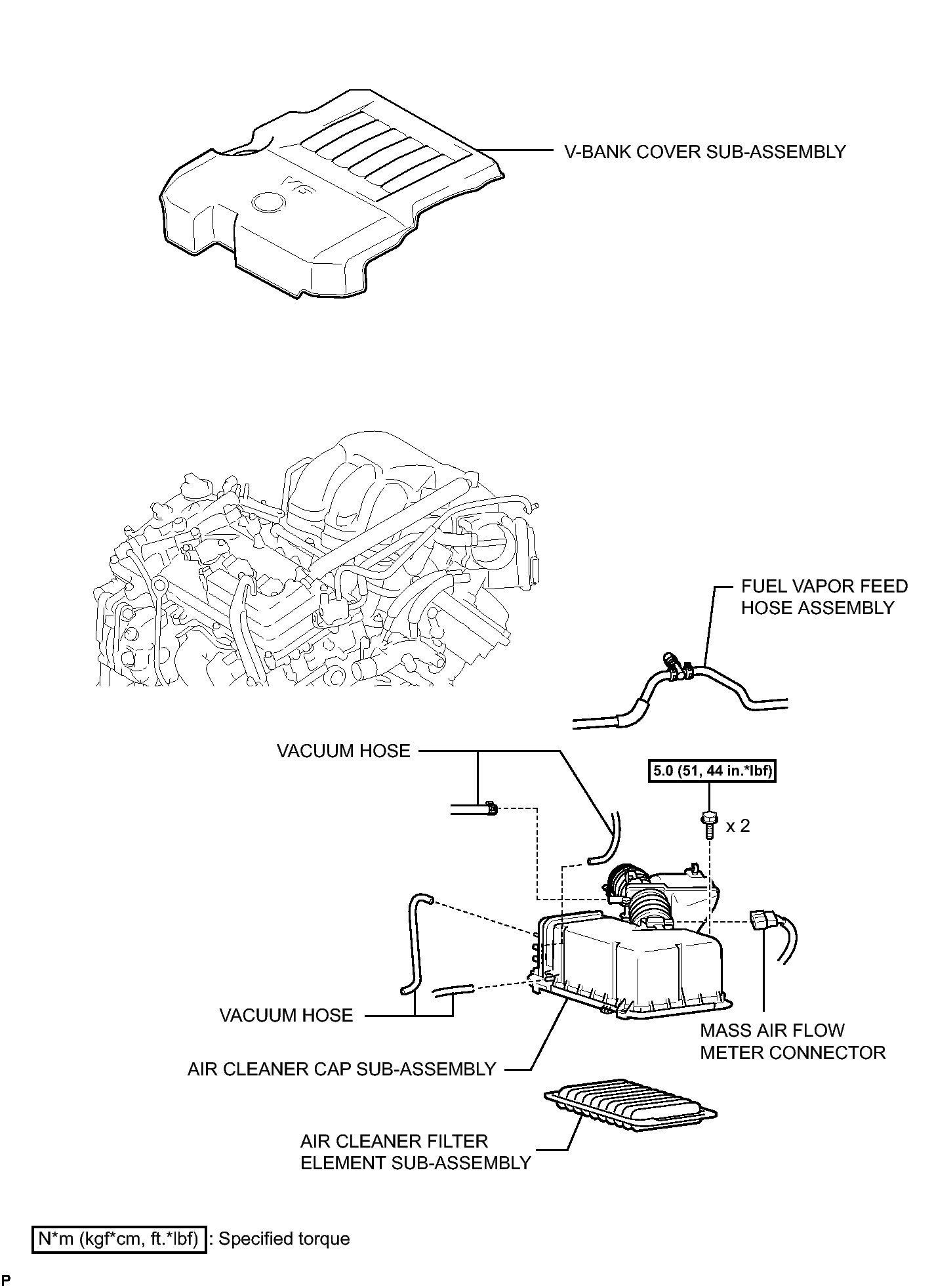

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 4)
GTY237896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

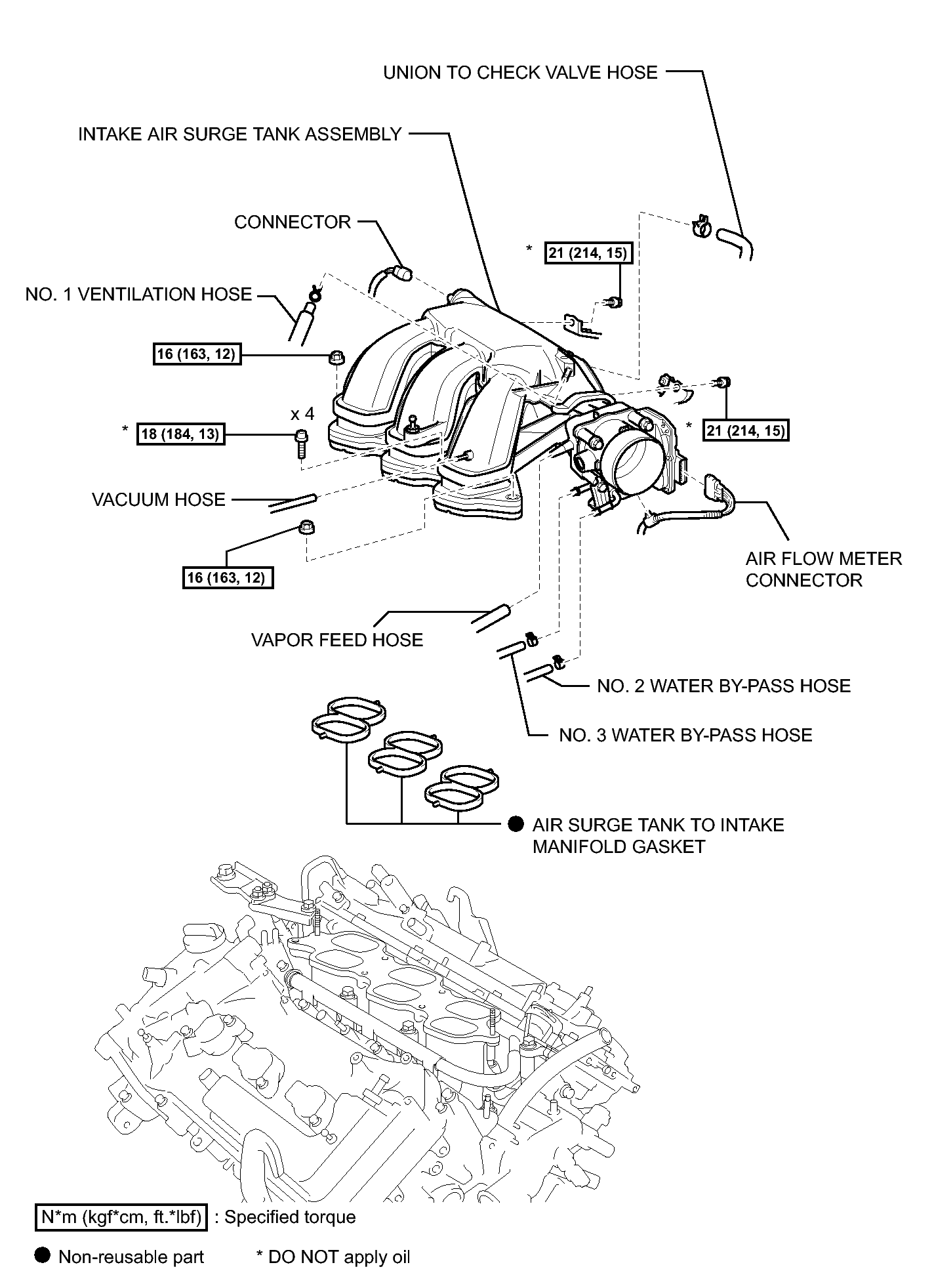

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (3 Of 4)
GTY237800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

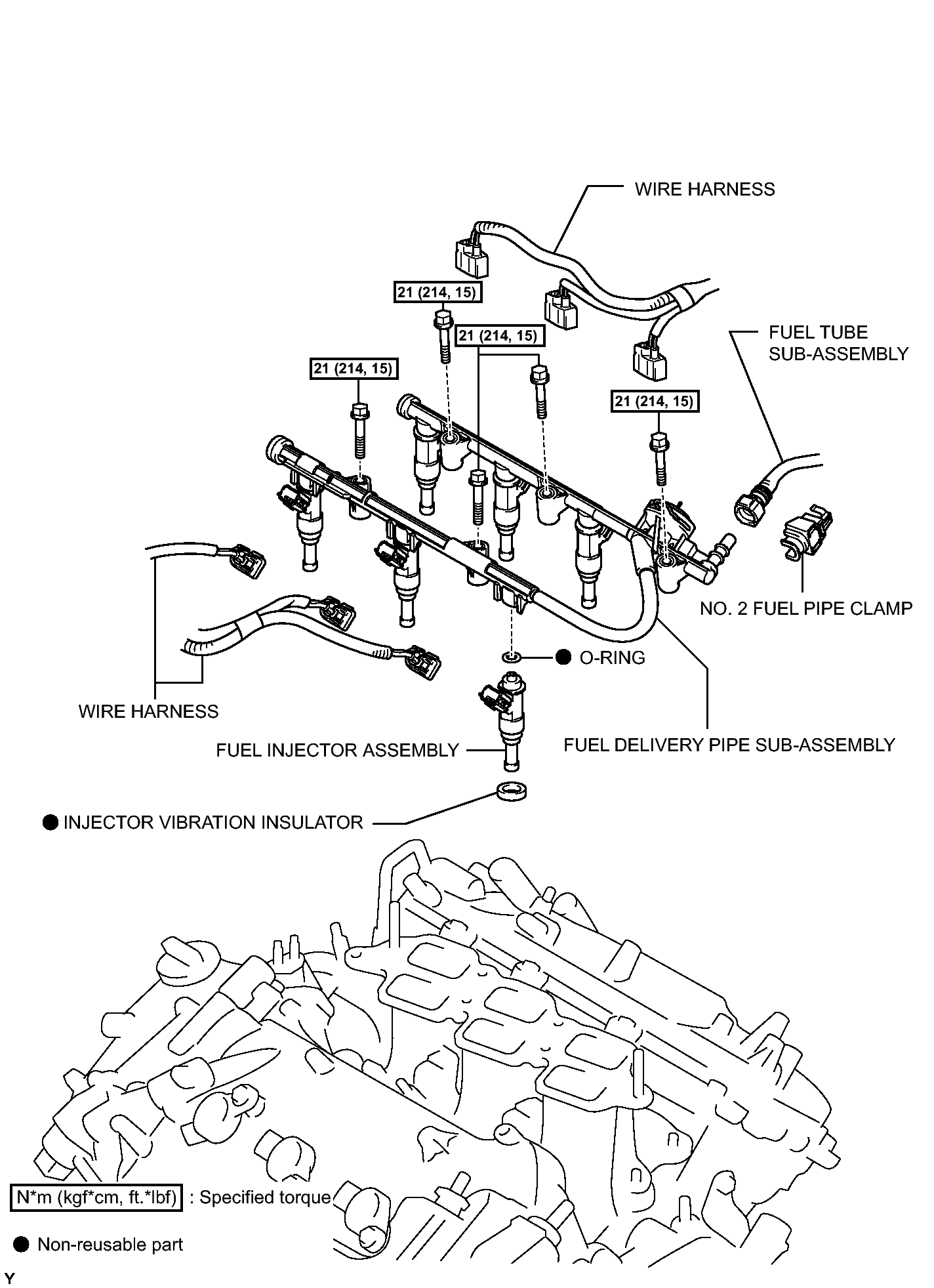

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (4 Of 4)
GTY237172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
