Front Speed Sensor: Removal: Removal

HINT:

Remove the RH side by same procedures with LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT SPEED SENSOR LH
   1. Disconnect the speed sensor connector.
      Fig 1: Identifying Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the sensor harness and clamp from the body.
   3. Remove the 2 clamp bolts holding the sensor harness and clamp from the body and shock absorber.

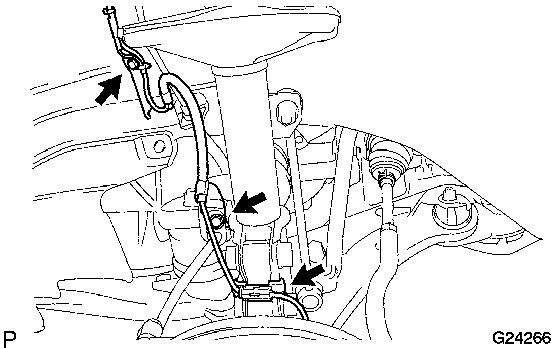

      Fig 2: Identifying Sensor Harness, Shock Absorber & Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt and speed sensor front LH.
      Fig 3: Identifying Front Speed Sensor & Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the tip of the speed sensor front LH.
