Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

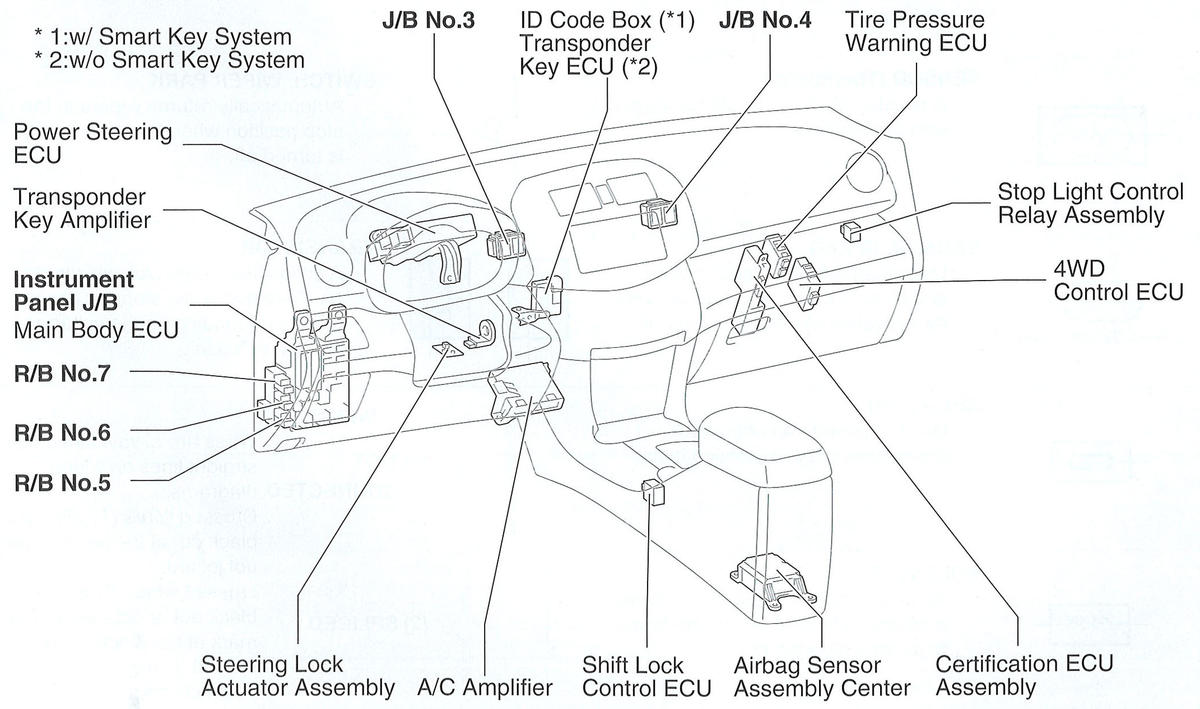

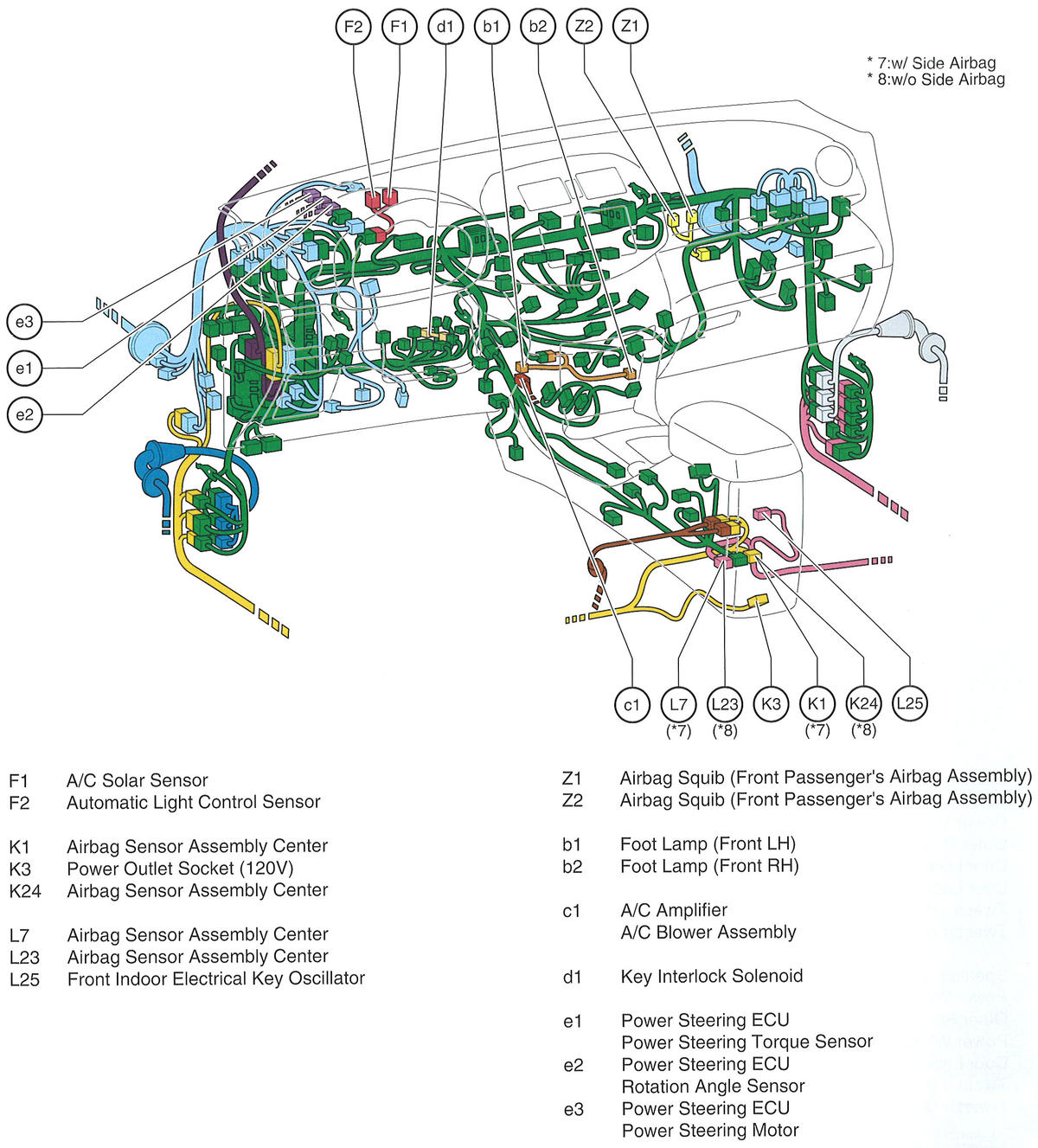

| A/C Amplifier | Center of dash. See Figure. |

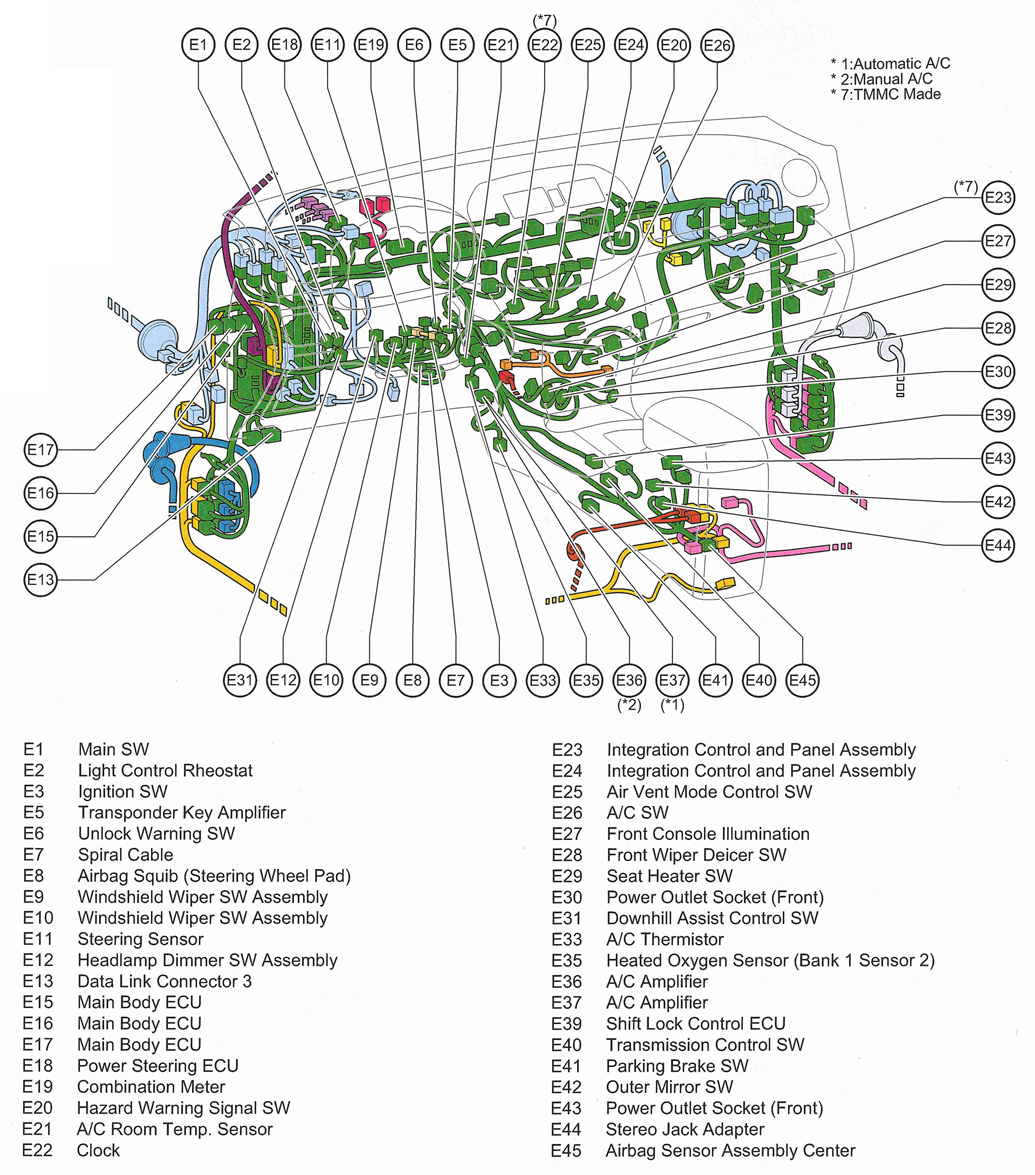

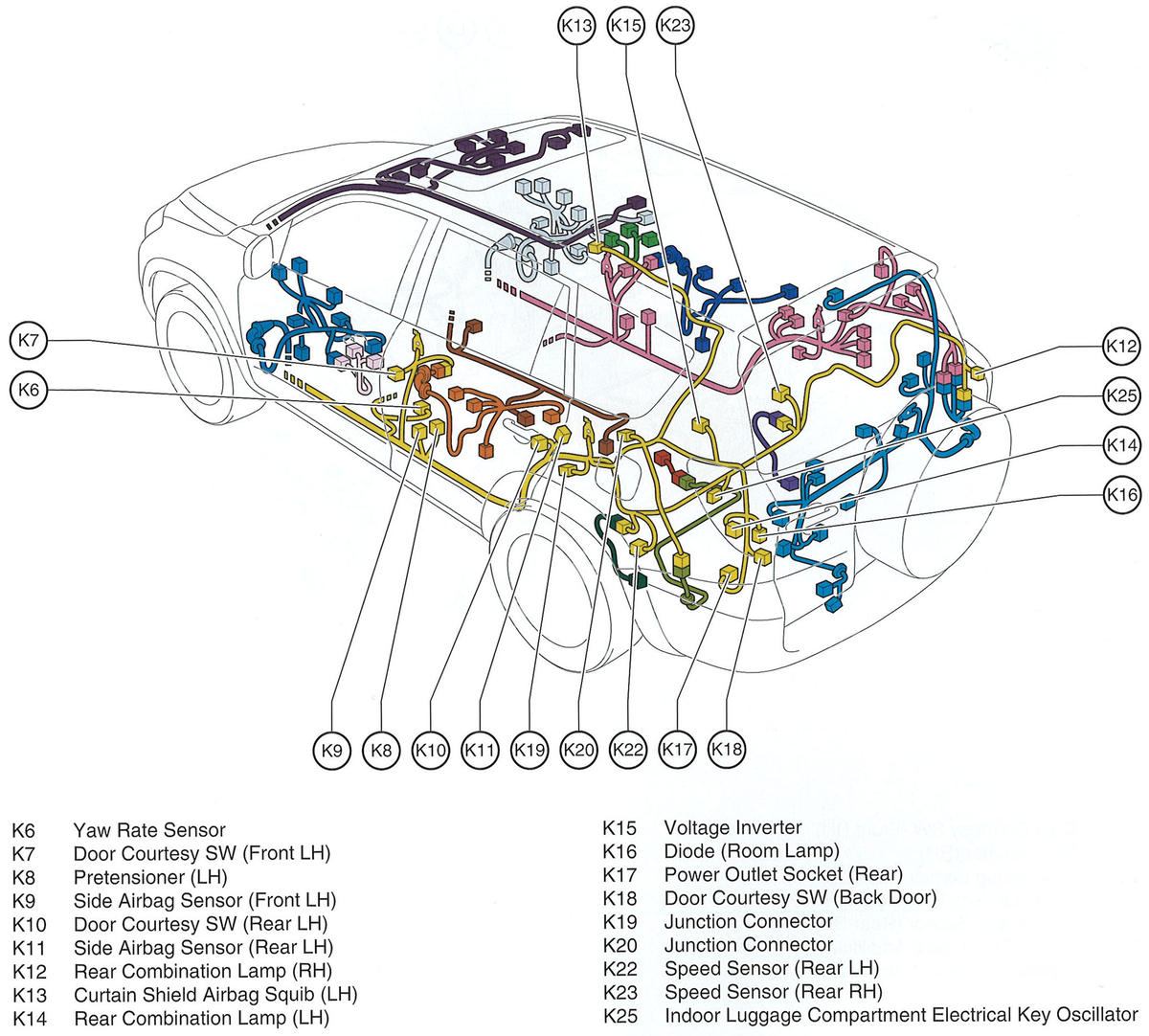

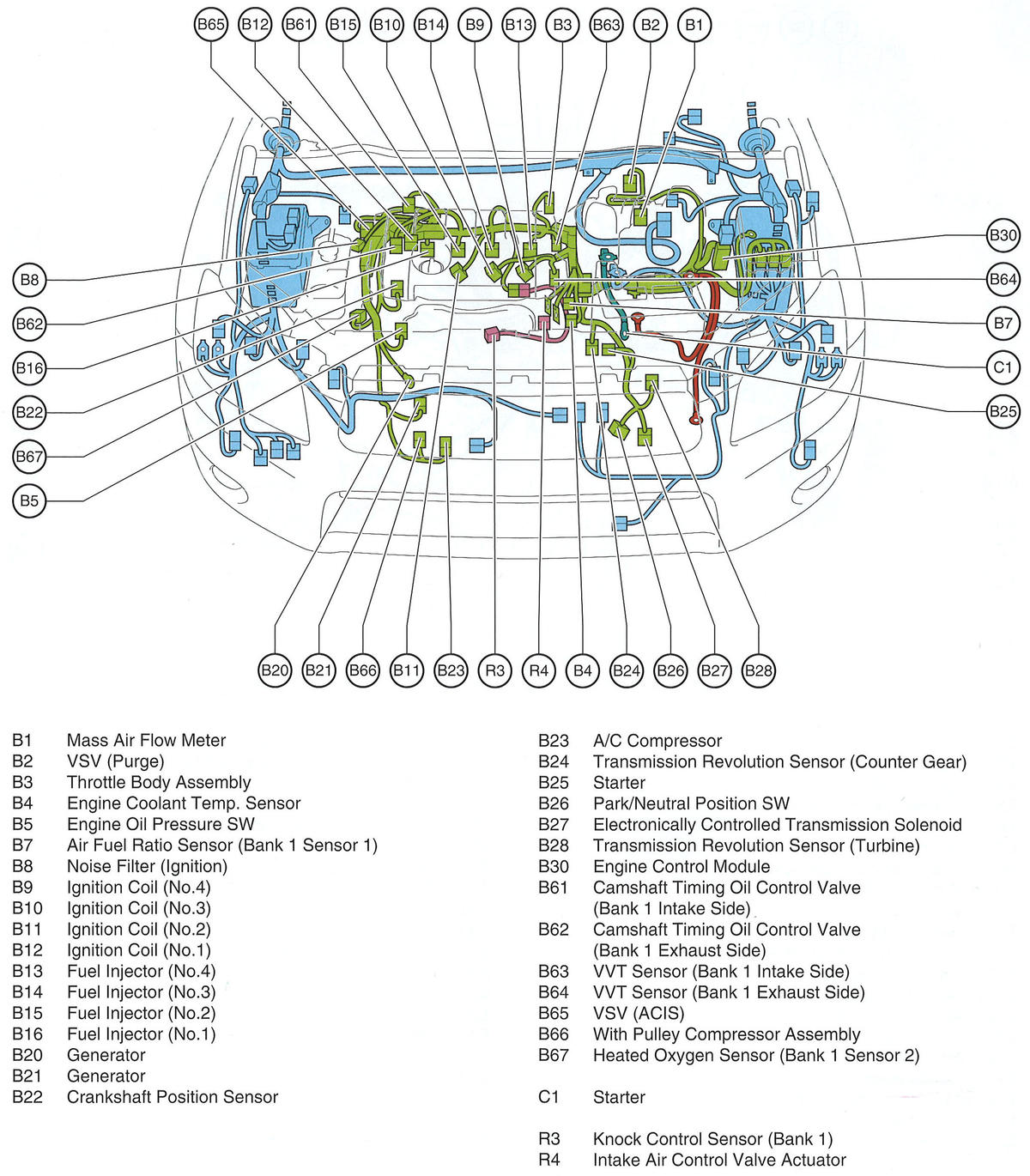

| A/C Thermistor | Left side of dash. See Figure. |
| Airbag Sensor Assembly Center | Under center console. See Figure. |
| Airbag Squib (Front Passenger's Airbag Assembly) | Right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | Under steering wheel pad. See Figure. |
| Amplifier Antenna Assembly | Right side of dash. See Figure. |
| Blower Resistor | Near blower motor. See Figure. |
| Curtain Shield Airbag Squib (LH) | Top of left "B" pillar. See Figure. |
| Curtain Shield Airbag Squib (RH) | Top of right "B" pillar. See Figure. |
| Data Link Connector 3 | Left side of dash. See Figure. |
| Door Lock Assembly (Driver's Side) | Driver's door. See Figure. |
| Door Lock Assembly (Front Passenger's Side) | Front passenger's door. See Figure. |
| Door Lock Assembly (Rear LH) | Left rear door. See Figure. |
| Door Lock Assembly (Rear RH) | Right rear door assembly. See Figure. |
| Electrical Key Oscillator (Back Door Outside) | Left side of back door. See Figure. |
| Electrical Key Oscillator (Front Door LH) | Driver's door. See Figure. |
| Electrical Key Oscillator (Front Door RH) | Front passenger's door. See Figure. |
| Electrical Key Oscillator (Front Indoor) | Under center console. See Figure. |
| Electrical Key Oscillator (Indoor Luggage Compartment) | Center front of luggage compartment. See Figure. |
| Front Seat Inner Belt (Driver's Side) | Driver's seat. See Figure. |
| Front Seat Inner Belt (Front Passenger's Side) | Front passenger's seat. See Figure. |
| Front Wiper Deicer (2.5L) | Left rear of engine compartment. See Figure. |
| Front Wiper Deicer (3.5L) | Left rear of engine compartment. See Figure. |
| Generator (2.5L) | Front of engine. See Figure. |
| Generator (3.5L) | Left front of engine. See Figure. |

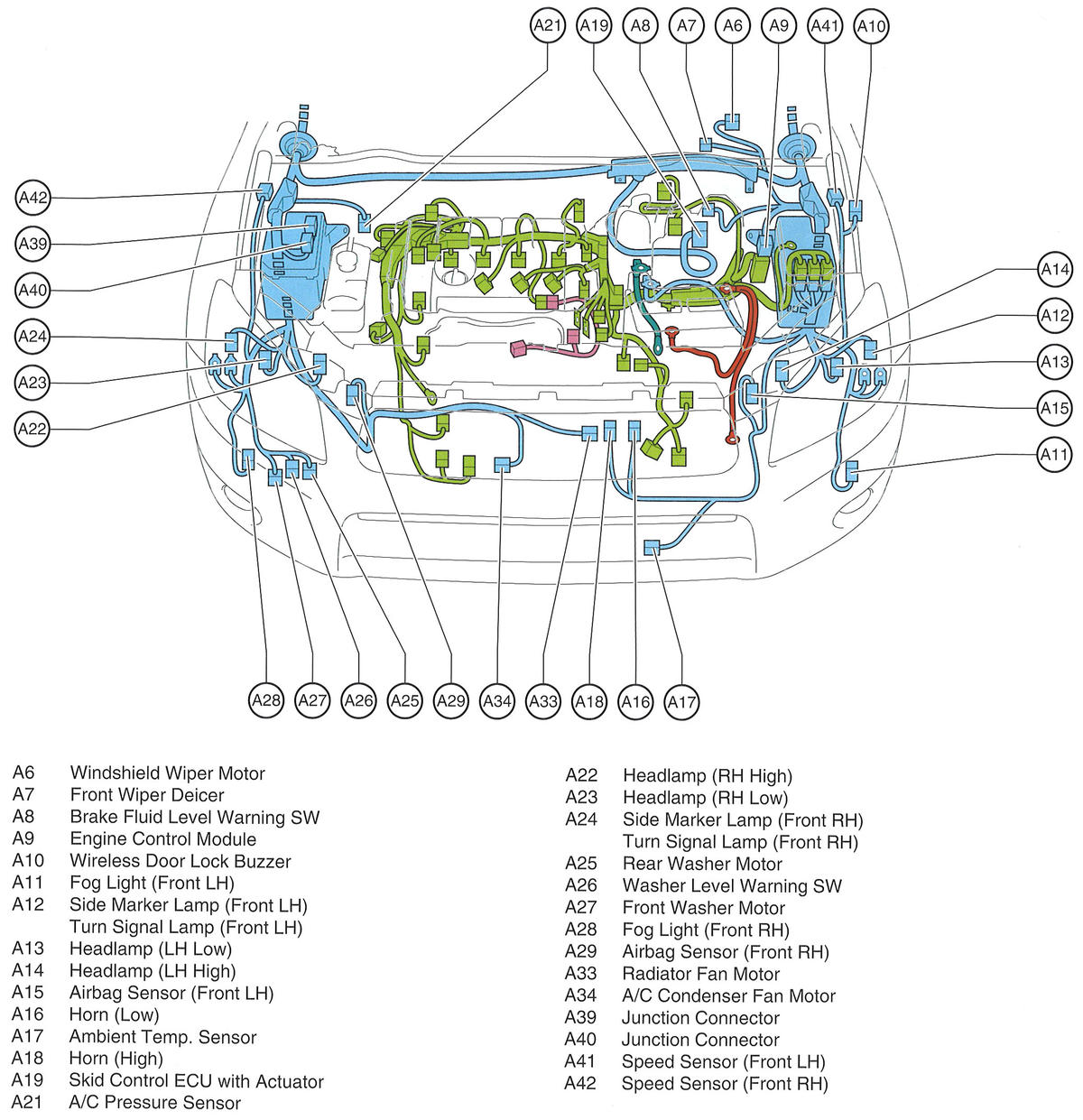

| Horn (High) (2.5L) | Right front radiator support. See Figure. |
| Horn (High) (3.5L) | Right front radiator support. See Figure. |
| Horn (Low) (2.5L) | Left front radiator support. See Figure. |
| Horn (Low) (3.5L) | Left front radiator support. See Figure. |
| ID Code Box | Behind center of dash. See Figure. |
| Ignition Coil No. 1 (2.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 1 (3.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 2 (2.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 2 (3.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 3 (2.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 3 (3.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 4 (2.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 4 (3.5L) | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 5 | Top of cylinder head cover. See Figure. |
| Ignition Coil No. 6 | Top of cylinder head cover. See Figure. |

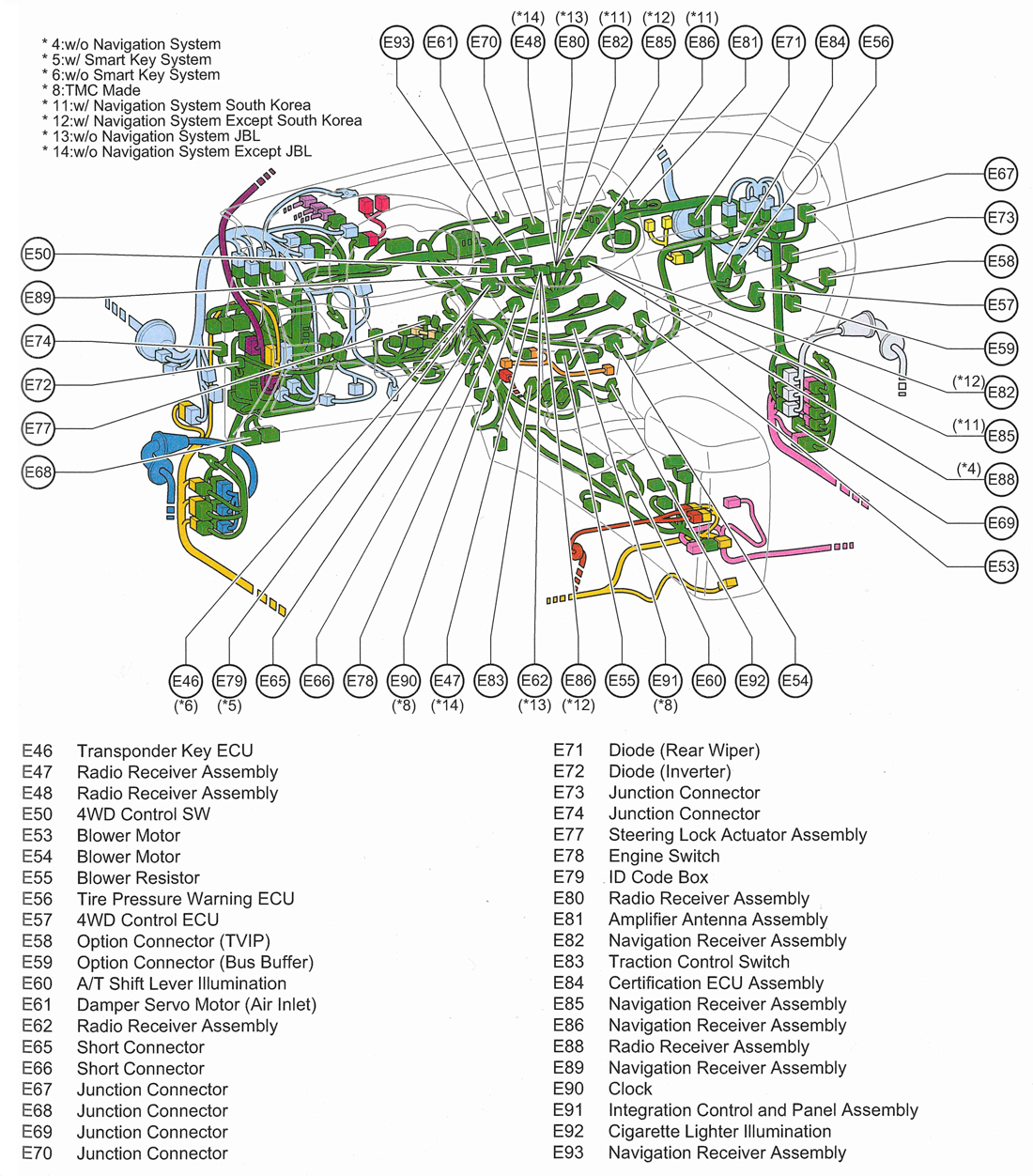

| Junction Connector E69 | Right kick panel. See Figure. |
| Junction Connector E70 | Center of dash. See Figure. |
| Junction Connector K21 | Under driver's seat. See Figure. |
| Junction Connector N8 | Under driver's seat. See Figure. |
| Junction Connectors A35, A36, A37 & A38 | Left side of dash. See Figure. |
| Junction Connectors A39 & A40 (2.5L) | Right rear of engine compartment. See Figure. |
| Junction Connectors A39 & A40 (3.5L) | Right rear of engine compartment. See Figure. |
| Junction Connectors E67 & E73 | Right side of dash. See Figure. |
| Junction Connectors E68 & E74 | Left side of dash. See Figure. |
| Junction Connectors K19 & K20 | Left "C" pillar. See Figure. |
| Junction Connectors L21 & L22 | Right "D" pillar. See Figure. |
| Noise Filter (Ignition) | Rear of engine. See Figure. |
| Noise Filter (Ignition LH) | Near center of engine. See Figure. |
| Noise Filter (Ignition RH) | Center rear of engine compartment. See Figure. |
| Noise Filter (Rear Window Defogger & Stop) | Right side of back door. See Figure. |
| Option Connector (Bus Buffer) | Right end of dash. See Figure. |
| Option Connector (TVIP) | Right end of dash. See Figure. |
| Pretensioner LH | Base of left "B" pillar. See Figure. |
| Pretensioner RH | Base of right "B" pillar. See Figure. |
| Seat Heater (LH) | Driver's seat. See Figure. |
| Seat Heater (RH) | Front passenger's seat. See Figure. |
| Short Connectors E65 & E66 | Center of dash. See Figure. |
| Side Airbag Squib (LH) | Driver's seat. See Figure. |
| Side Airbag Squib (RH) | Front passenger's seat. See Figure. |
| Spiral Cable | Steering column. See Figure. |
| Stereo Component Amplifier | Right "D" pillar. See Figure. |

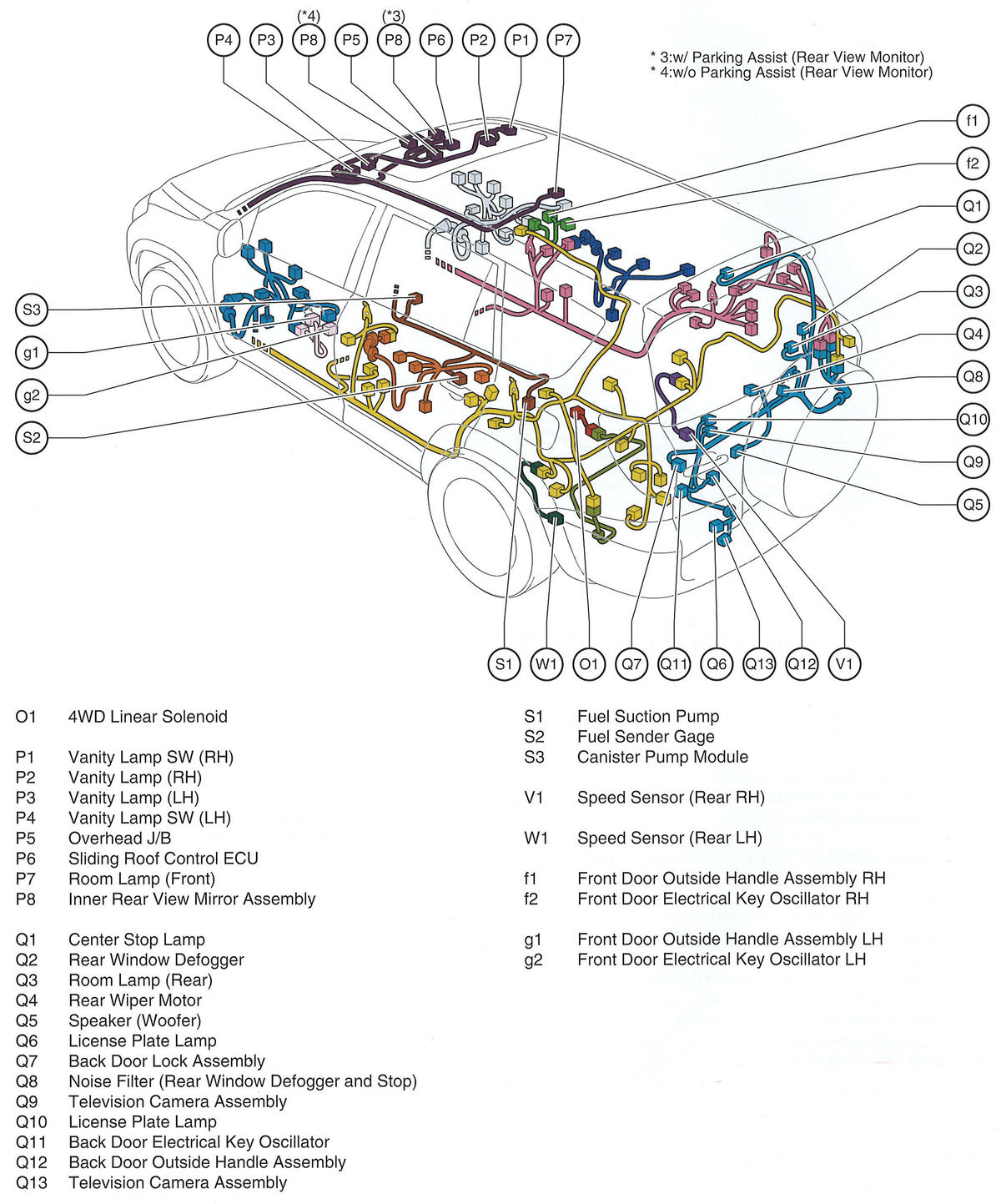

| Television Camera Assembly | Center of back door. See Figure. |
| Throttle Body Assembly (2.5L) | Rear of engine. See Figure. |
| Throttle Body Assembly (3.5L) | Left rear of engine compartment. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Right "D" pillar. See Figure. |
| Transponder Key Amplifier | Top of steering column. See Figure. |
| Voltage Inverter | Rear cargo area. See Figure. |
| Wireless Door Lock Buzzer (2.5L) | Left side of dash. See Figure. |
| Wireless Door Lock Buzzer (3.5L) | Left side of dash. See Figure. |
