Ignition (2AR-FE): Notes

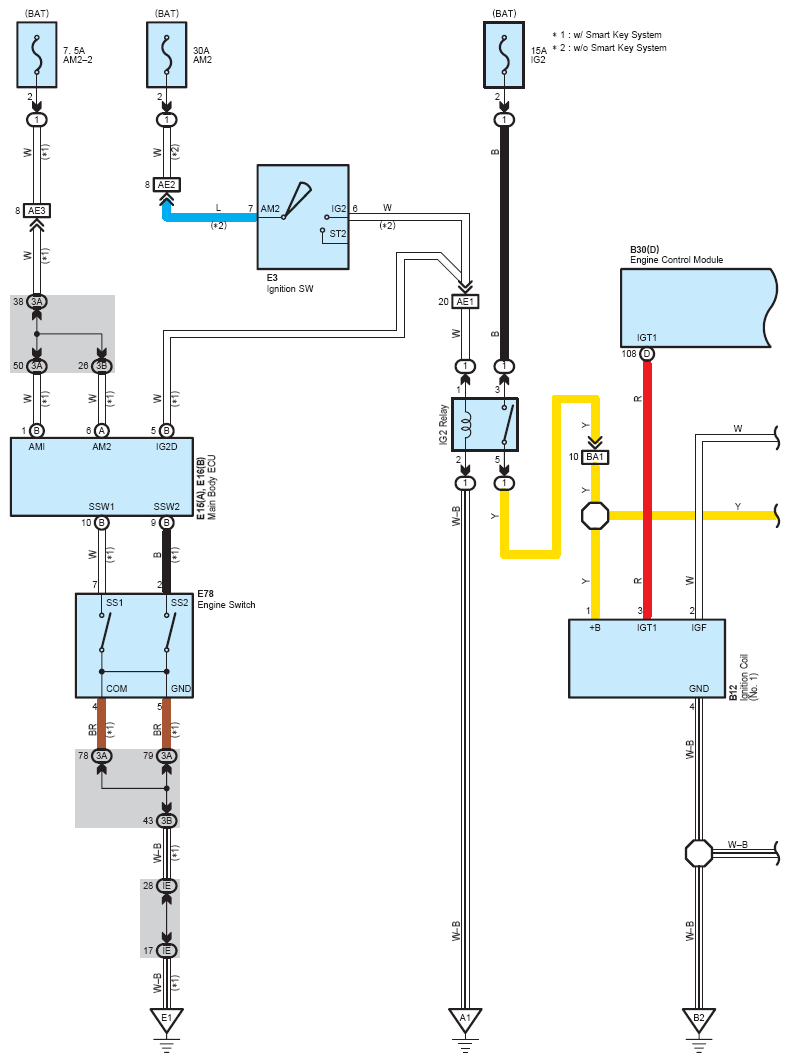

Fig 1: Ignition (2AR-FE) - Circuit Diagram (1 Of 2)
G07557044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

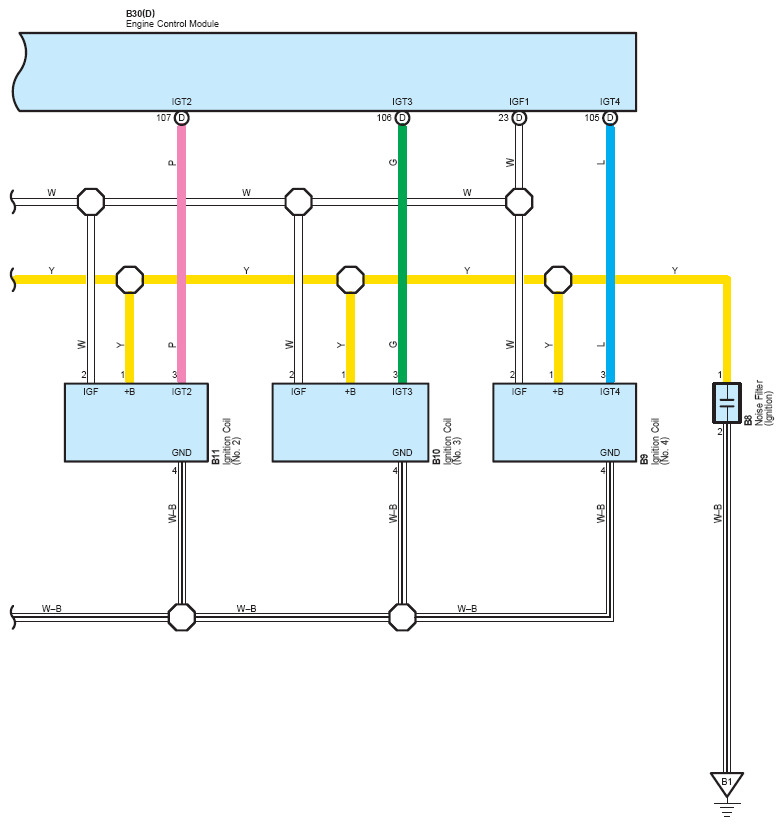

Fig 2: Ignition (2AR-FE) - Circuit Diagram (2 Of 2)
G07557045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
