Cruise Control (2GR-FE): Notes

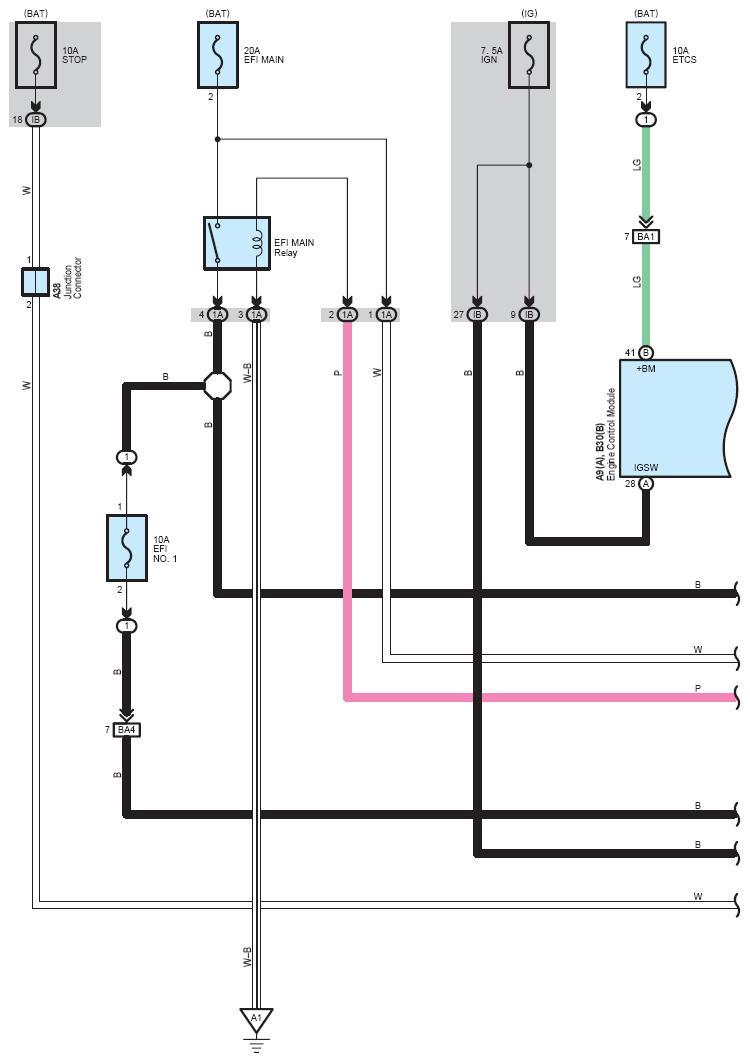

Fig 1: Cruise Control (2GR-FE) - Circuit Diagram (1 Of 6)
G07557148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

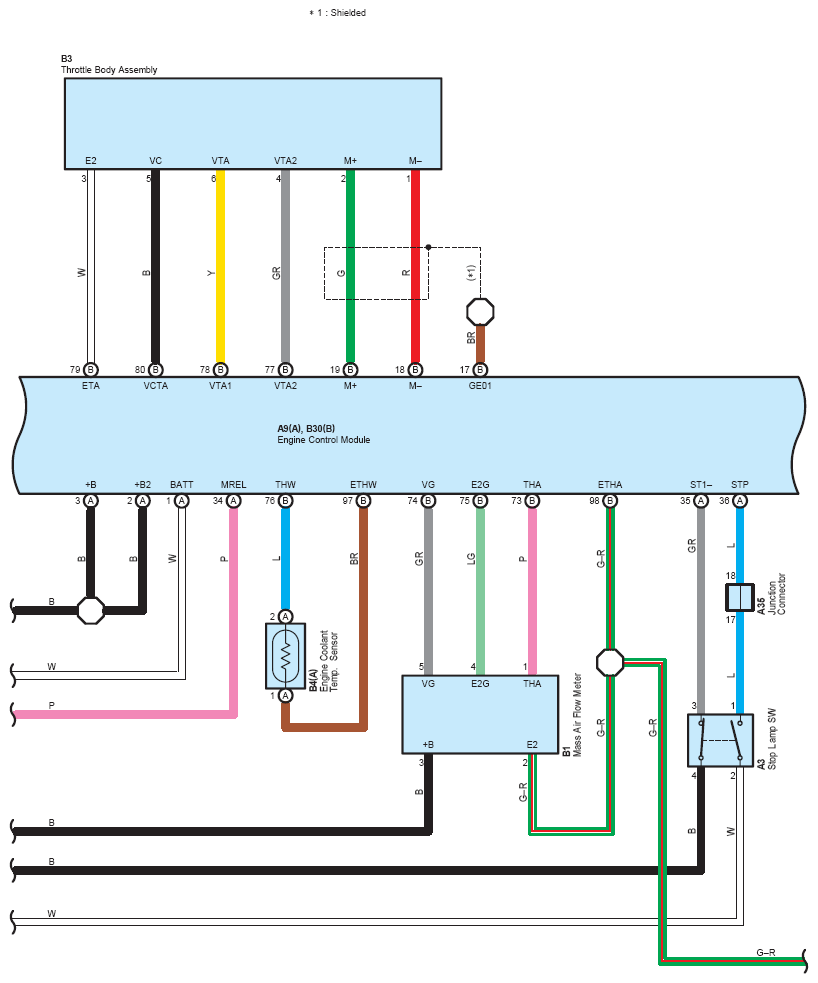

Fig 2: Cruise Control (2GR-FE) - Circuit Diagram (2 Of 6)
G07557149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

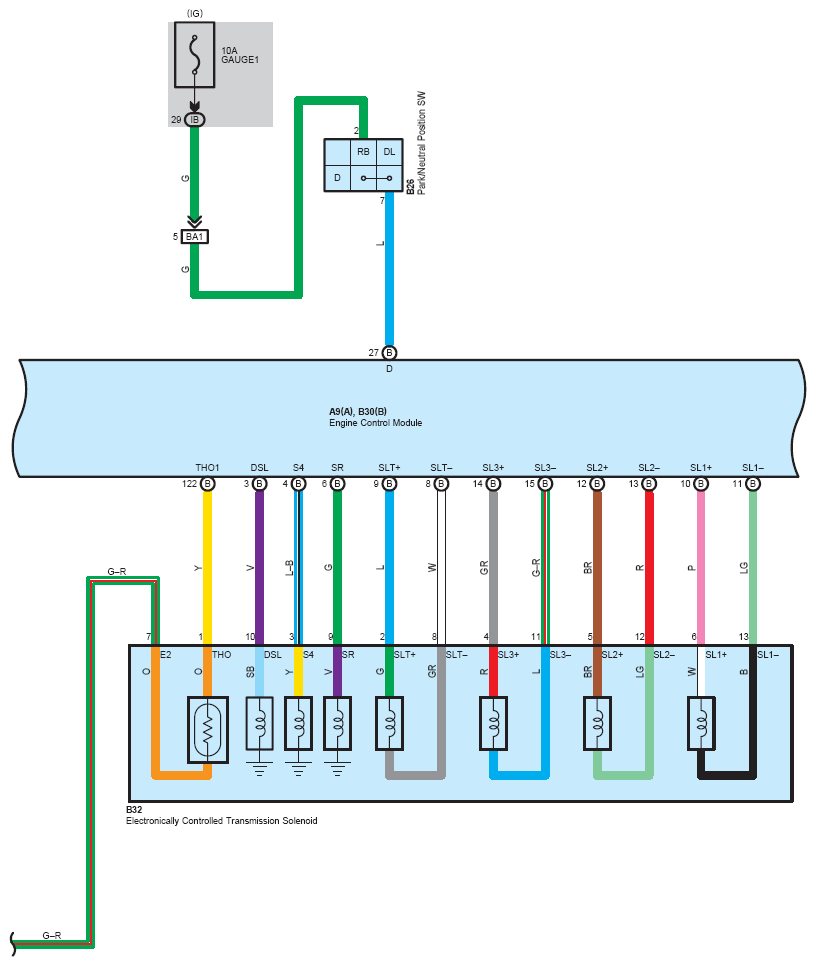

Fig 3: Cruise Control (2GR-FE) - Circuit Diagram (3 Of 6)
G07557150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

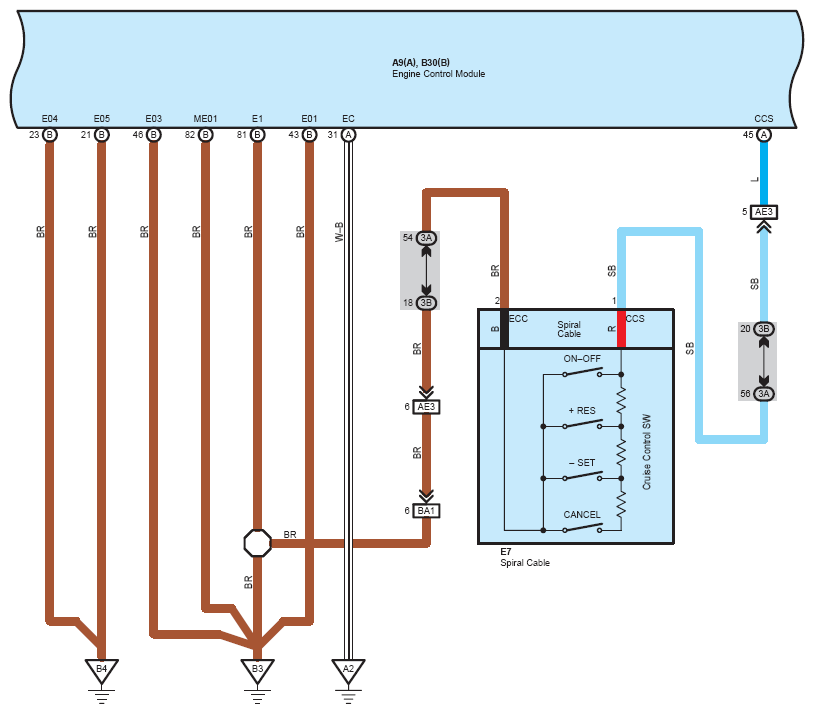

Fig 4: Cruise Control (2GR-FE) - Circuit Diagram (4 Of 6)
G07557151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

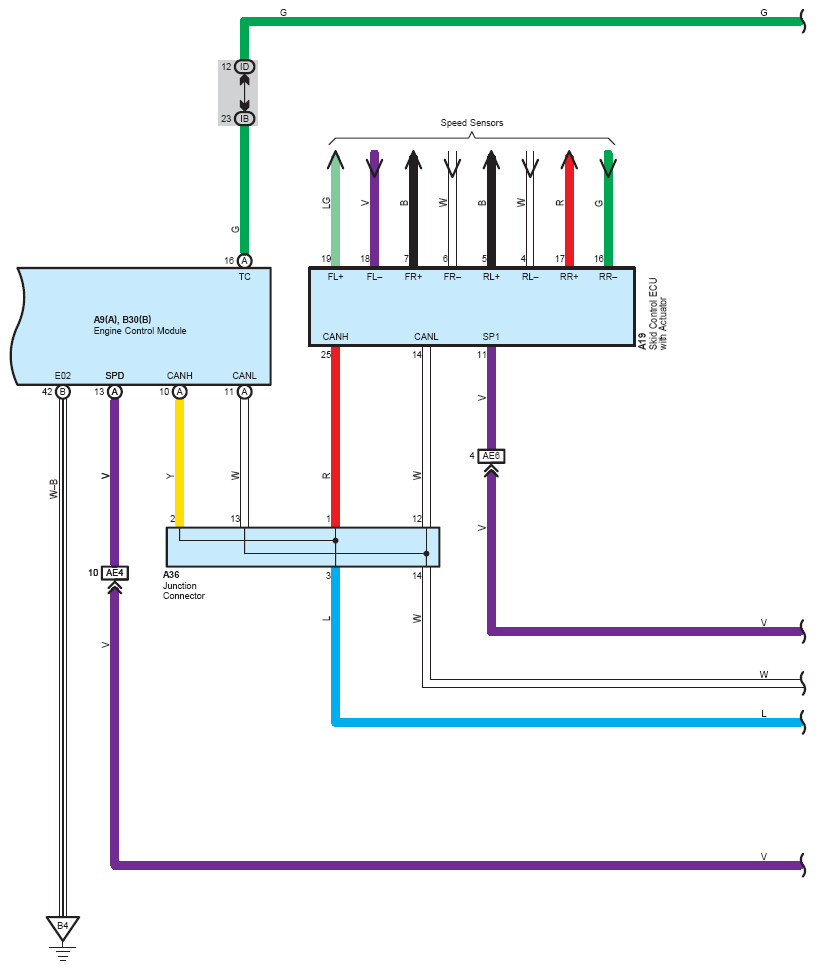

Fig 5: Cruise Control (2GR-FE) - Circuit Diagram (5 Of 6)
G07557152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

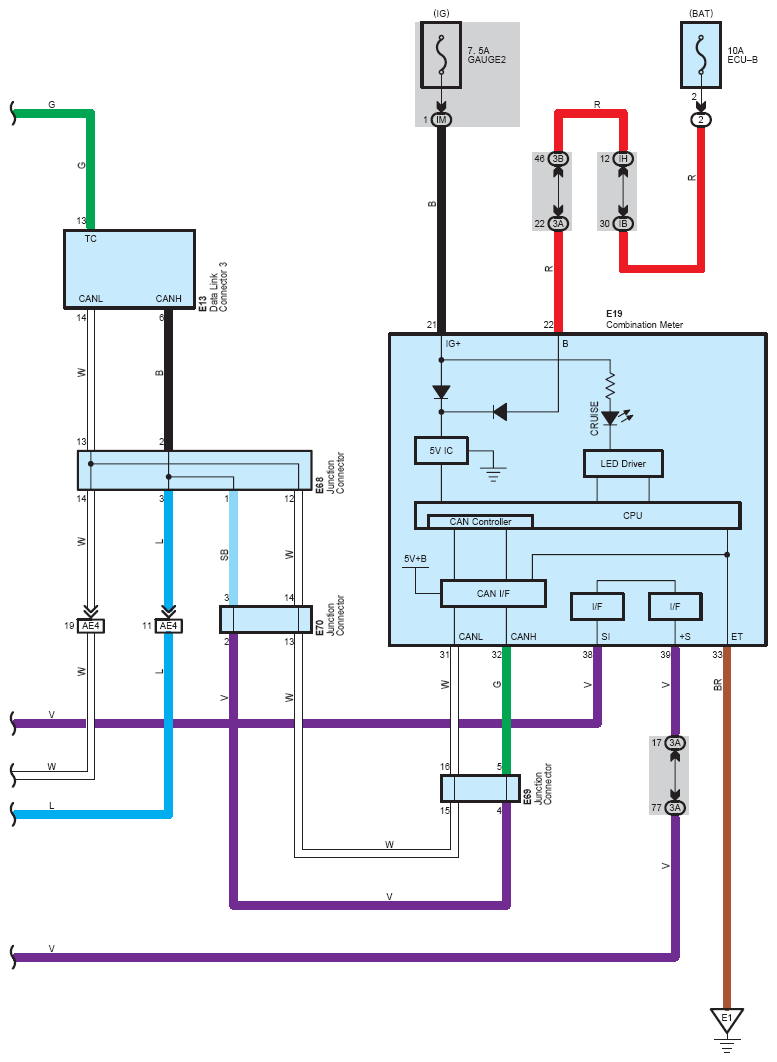

Fig 6: Cruise Control (2GR-FE) - Circuit Diagram (6 Of 6)
G07557153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
