Front Speed Sensor: Removal: Removal

HINT:

• Use the same procedure for the RH and LH sides.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE FRONT WHEEL
3. REMOVE FRONT FENDER LINER LH

   HINT:

   It is not necessary to fully remove the fender liner. Partially remove it so that the speed sensor connector can be disconnected in a later step.

4. REMOVE FRONT SPEED SENSOR LH

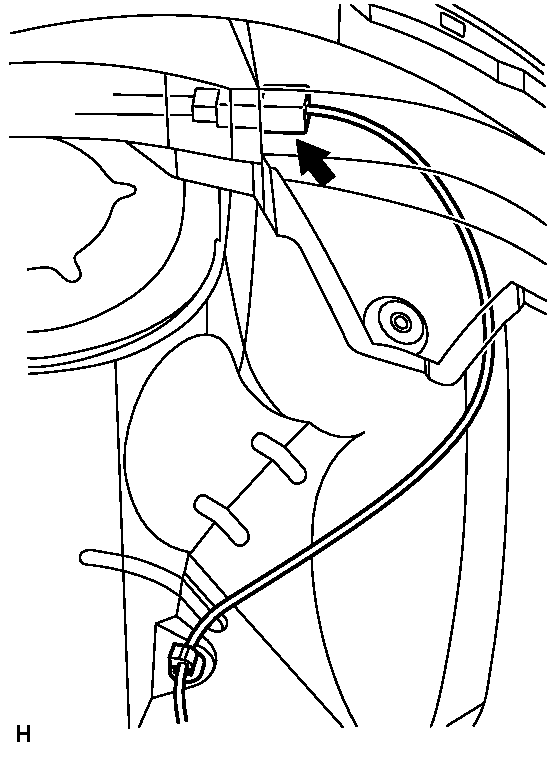

   1. Disconnect the sensor connector.
      Fig 1: Locating Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

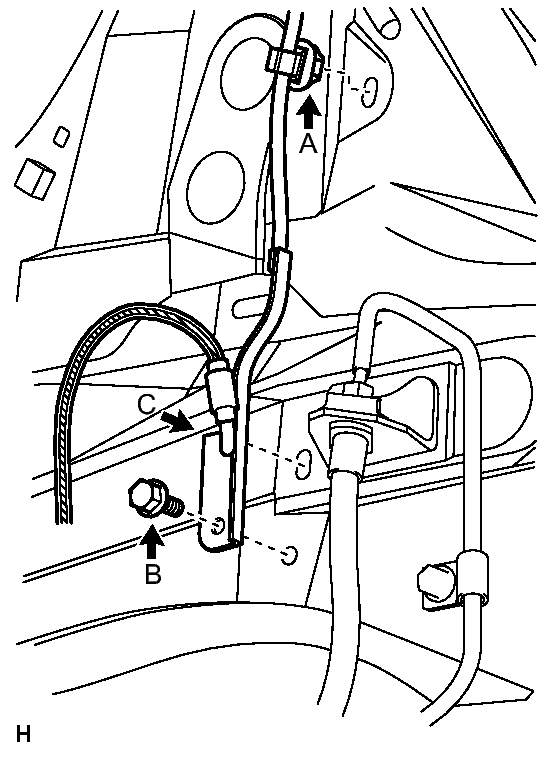

   2. Remove the sensor clip (labeled A), bolt (labeled B) and sensor clamp (labeled C).
      Fig 2: Identifying Sensor Clip, Bolt And Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the sensor clip (labeled D), bolt (labeled E) and sensor clamp (labeled F).
      Fig 3: Identifying Sensor Clip, Bolt And Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt and sensor body from the knuckle.
      Fig 4: Installing Speed Sensor Front

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the sensor tip and sensor installation hole free from foreign matter.
