Mass Air Flow Meter: Components: Illustration

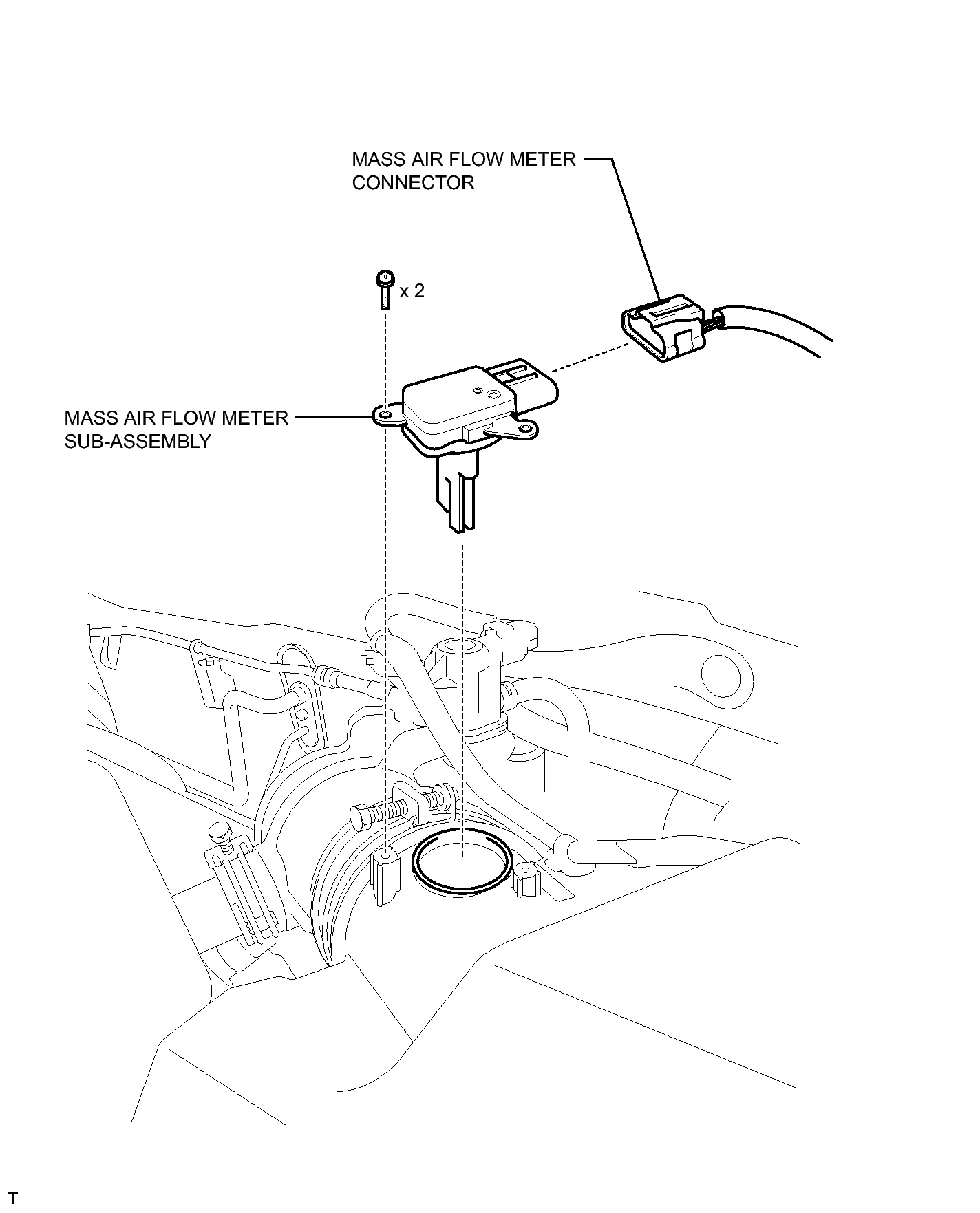

Fig 1: Identifying Mass Air Flow Meter Replacement Components

GTY234729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
