Engine Coolant Temperature Sensor: Components: Illustration

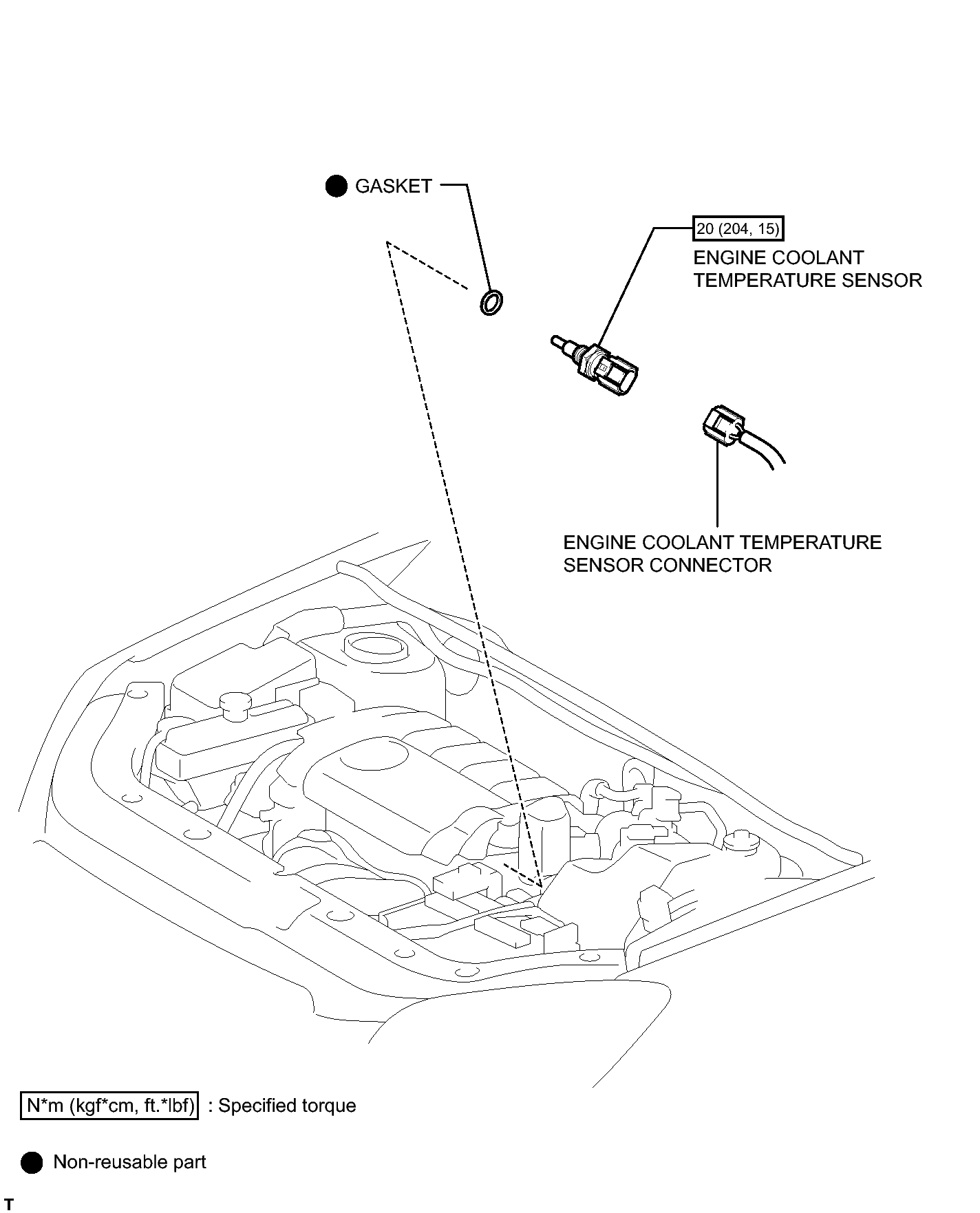

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components And Torque Specifications
GTY232250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
