Headlight Assembly: Disassembly: Disassembly

WARNING: This page is about a different car, the 2010 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HEADLIGHT ASSEMBLY

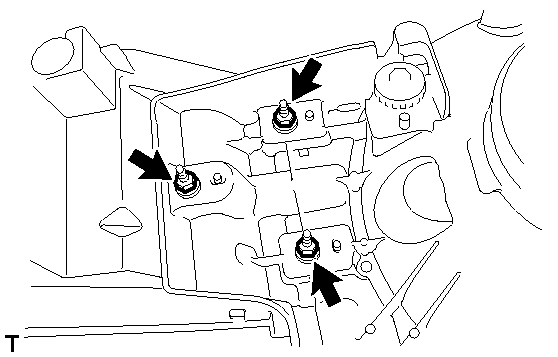

Fig 1: Identifying Headlight Assembly & Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 nuts and the headlight.
REMOVE HEADLIGHT, NO. 1 BULB

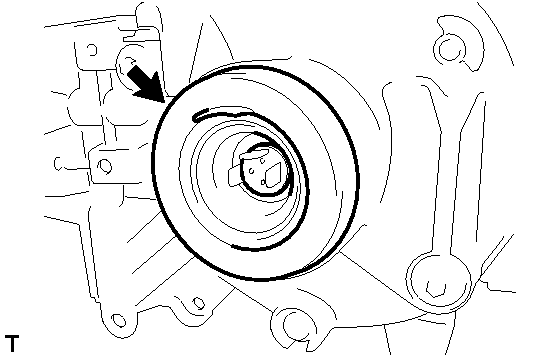

Fig 2: Identifying Headlight, No. 1 Bulb & Socket Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the socket cover.
2. Push the set spring, and pull it in the direction indicated by the arrows in the illustration, to disengage it.

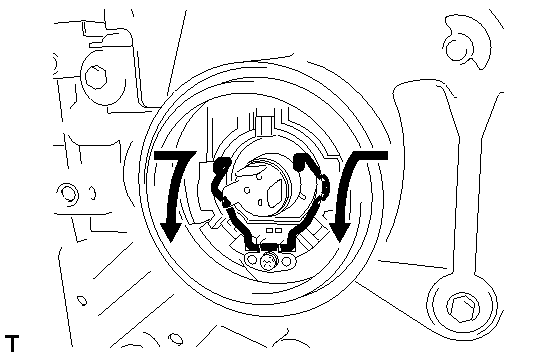

  Fig 3: Identifying Headlight, No. 1 Bulb & Direction To Pull Set Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the headlight, No. 1 bulb.

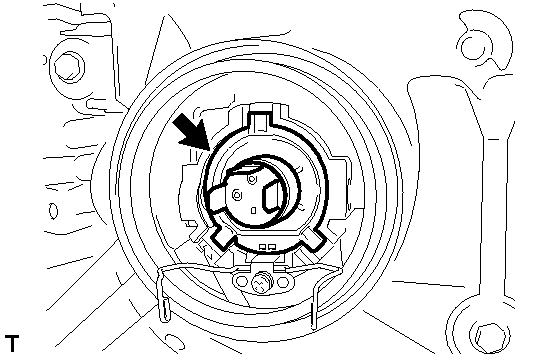

  Fig 4: Identifying Headlight, No. 1 Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass with your fingers.
REMOVE FRONT TURN SIGNAL LIGHT BULB

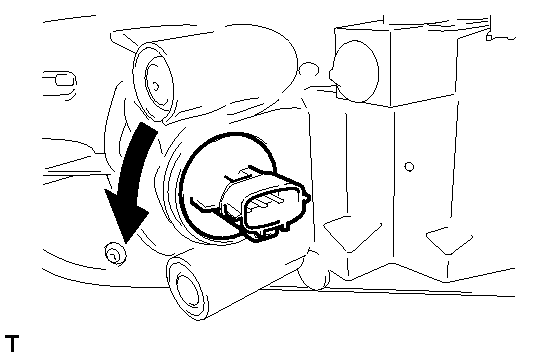

Fig 5: Identifying Turn For Removal Of Front Turn Signal Light Bulb
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the front turn signal light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
2. Remove the front turn signal light bulb from the light socket.
