Power Outlet: Notes

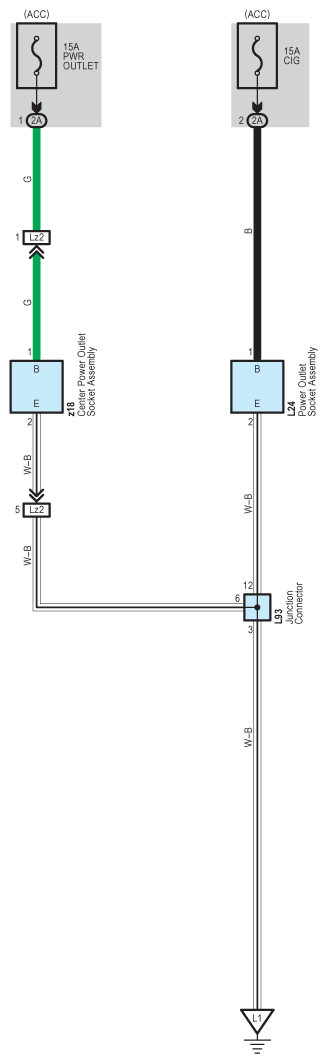

Fig 1: Power Outlet - Circuit Diagram

G07624783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
