OEM System Circuits (PHV): DLC3: Notes

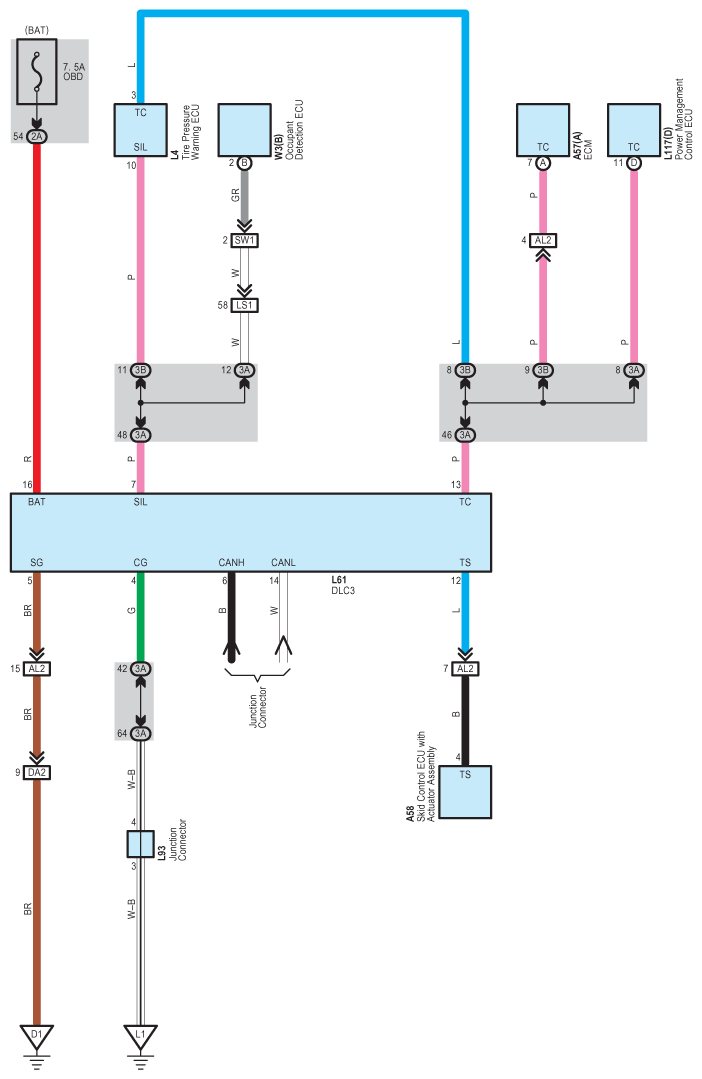

Fig 1: DLC3 - Circuit Diagram

G07624705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
