Steering Wheel: Installation: Installation

INSTALL LOWER STEERING WHEEL BOSS COVER
1. Engage the 2 pins and 4 claws to install the lower steering wheel boss cover to the steering wheel sub-assembly.

  Fig 1: Identifying Lower Steering Wheel Boss Cover Pins And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRUISE CONTROL SWITCH WIRE (w/ Cruise Control System)
INSTALL CRUISE CONTROL MAIN SWITCH (w/ Cruise Control System) . Refer to INSTALLATION - Step 1
INSTALL STEERING PAD SWITCH ASSEMBLY See step 1
INSTALL STEERING SHAKE DAMPER
1. Install the steering shake damper to the steering wheel assembly with the 2 screws.

  Fig 2: Identifying Steering Shake Damper Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks on the steering wheel assembly and steering main shaft.

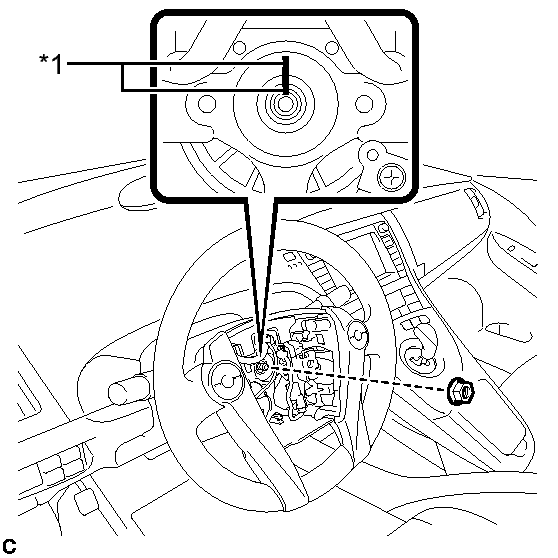

  Fig 3: Identifying Matchmarks On Steering Wheel Assembly And Steering Main Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Matchmark
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
3. Connect the connectors to the spiral cable sub-assembly.
INSTALL STEERING PAD
HINT:

Refer to the instructions for Installation of the steering pad. Refer to INSTALLATION .
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT STEERING PAD . Refer to INSTALLATION - Step 8
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
