Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

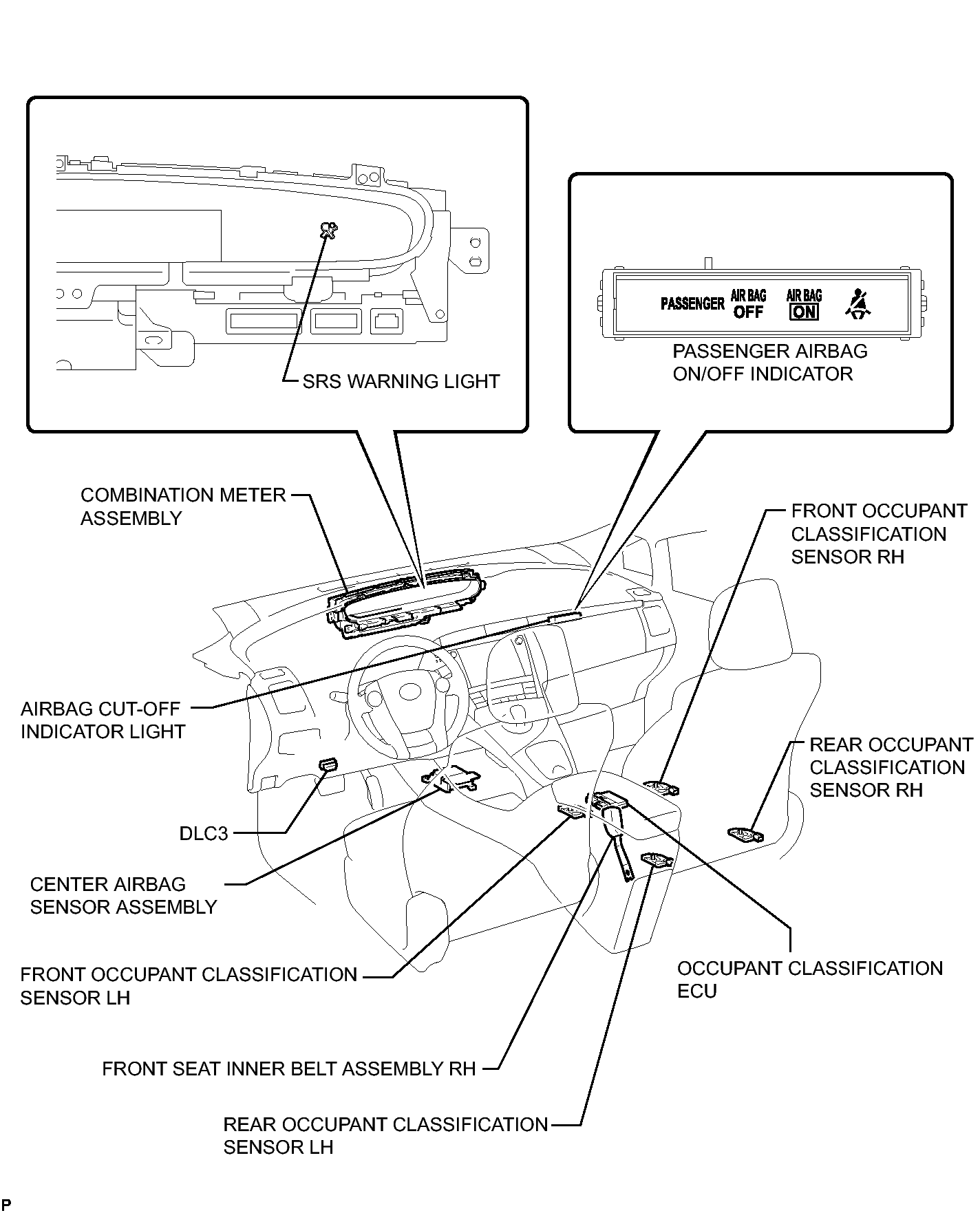

Fig 1: Identifying Occupant Classification System Components
GTY218606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
