Engine Immobiliser System: Registration: Registration

WARNING: This page is about a different variant/trim than selected.
  1. DESCRIPTION OF CODE REGISTRATION

    HINT:

    • The ID codes are the same as recognition codes for the wireless transmitter and engine immobiliser function. Registering an ID code enables the smart key system, the wireless door lock control function and the engine immobiliser function to be operated.
    • Code registration is necessary when the certification ECU (smart key ECU assembly), ID code box (immobiliser code ECU), transmission control ECU assembly or key is replaced with a new one.

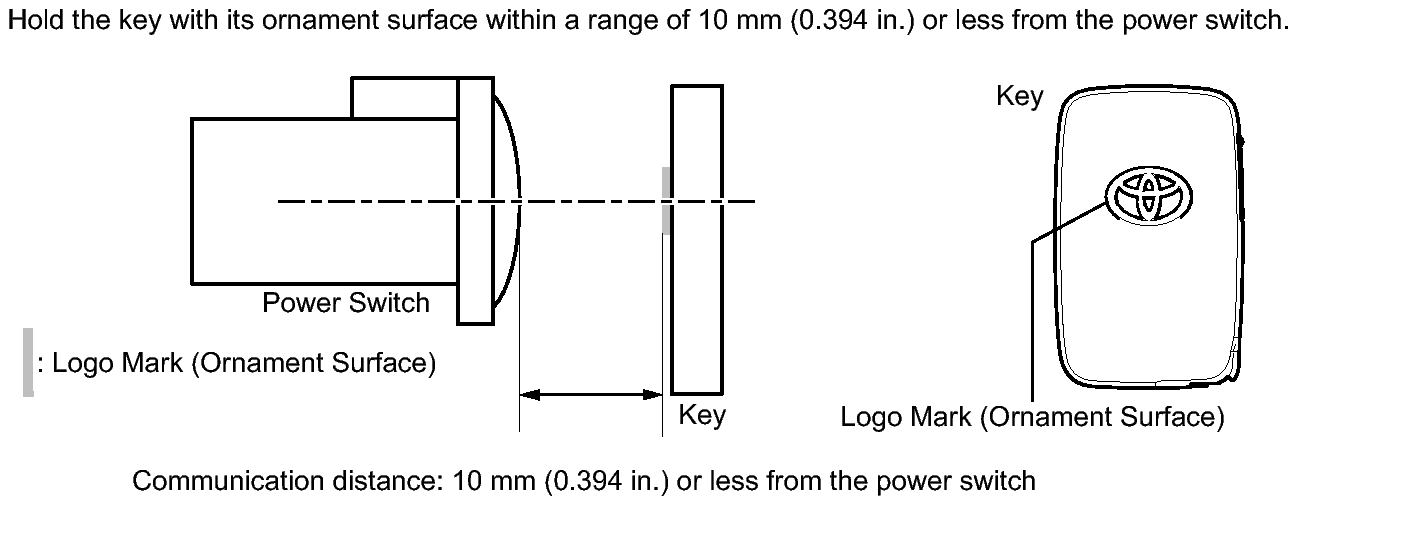

    1. When registering a key, bring the key close to the power switch as shown in the illustration.
      Fig 1: Registering Key
      GTY213952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. KEY REGISTRATION PROCEDURES WHEN ADDING OR REPLACING KEY OR WHEN KEY IS LOST

    HINT:

    • The following procedures require the use of the Techstream:
      • - New key ID registration
      • - Additional key ID registration
      • - Key ID erasure
    • A maximum of 7 keys can be registered.
    Situation Registration Procedure Condition Procedure Refer to
    Registering an additional key Customer must bring at least 1 key 1. Register additional keys as necessary (additional key ID registration) PROCEDURE "C"
    • Replacing a key
    • Making a lost key unable
    HINT: After key ID erasure, any remaining keys that are not registered at this time cannot be used. Therefore, after key ID erasure, register all remaining keys.    		 Customer must bring at least 1 key 1. Using remaining keys, clear all registered keys except one (key ID erasure) PROCEDURE "D"
    2. Register additional keys as necessary (additional key ID registration) PROCEDURE "C"
    All keys are lost - 1. Reset all keys (all key ID erasure (key code reset)) PROCEDURE "E"
    2. Register all keys (new key ID registration) PROCEDURE "A"
  3. PART REPLACEMENT AND KEY REGISTRATION PROCEDURES
    1. The following table shows ECU replacement and key registration procedures for cases in which a malfunctioning ECU has been identified through the troubleshooting of the smart key system.

      HINT:

      • The following procedures can be performed:
        • New key ID registration
        • Additional key ID registration
        • Key ID erasure
        • All key ID erasure
        • ECU code registration
      • If the customer has not brought all the registered keys, replacement of the transmission control ECU assembly or ID code box (immobiliser code ECU) is also required.
      • A maximum of 7 keys can be registered.
      Malfunctioning ECU Condition Procedure Reference
      Certification ECU (Smart key ECU assembly) Customer has brought all keys 1. Replace certification ECU (smart key ECU assembly) -
      2. Reregister all keys (new key ID registration) PROCEDURE "B"
      Some keys are lost Key ID codes can be registered and erased 1. Erase key codes (key ID erasure) PROCEDURE "D"
      2. Perform additional key registration procedure (additional key ID registration) PROCEDURE "C"
      3. Replace certification ECU (smart key ECU assembly) -
      4. Reregister all keys (new key ID registration)
      HINT:
      If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.      		 PROCEDURE "B"
      Key ID codes cannot be either registered or erased 1. Replace certification ECU (smart key ECU assembly) -
      2. Replace ID code box (immobiliser code ECU) -
      3. Reregister all keys (new key ID registration)
      HINT:
      If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.      		 PROCEDURE "A"
      4. Register ECU communication ID PROCEDURE "G"
      Certification ECU (Smart key ECU assembly) All keys are lost 1. Replace certification ECU (smart key ECU assembly) -
      2. Replace ID code box (immobiliser code ECU) -
      3. Reregister all keys (new key ID registration)
      HINT:
      If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.      		 PROCEDURE "A"
      4. Register ECU communication ID PROCEDURE "G"
      ID code box (Immobiliser code ECU) Customer has brought at least 1 key 1. Replace ID code box (immobiliser code ECU) -
      2. Register recognition codes in ECUs (ECU code registration) PROCEDURE "F"
      3. Register ECU communication ID PROCEDURE "G"
      All keys are lost 1. Replace ID code box (immobiliser code ECU) -
      2. Replace certification ECU (smart key ECU assembly) -
      3. Reregister all keys (new key ID registration)
      HINT:
      If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.      		 PROCEDURE "A"
      4. Register ECU communication ID PROCEDURE "G"
      Transmission control ECU assembly Customer has brought at least 1 key 1. Replace transmission control ECU assembly -
      2. Register recognition codes in ECUs (ECU code registration) PROCEDURE "F"
      All keys are lost 1. Replace transmission control ECU assembly -
      2. Replace certification ECU (smart key ECU assembly) -
      3. Replace ID code box (immobiliser code ECU) -
      4. Reregister all keys (new key ID registration)
      HINT:
      If some keys are not registered during the above steps, they will be disabled because they cannot be registered later.      		 PROCEDURE "A"
      5. Register ECU communication ID PROCEDURE "G"
      Power management control ECU No condition required Replace power management control ECU -
  4. KEY REGISTRATION
    1. PROCEDURE "A"

      New key ID registration (when replacing the certification ECU (smart key ECU assembly) and transmission control ECU assembly, or certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU), or when replacing the certification ECU (smart key ECU assembly), ID code box (immobiliser code ECU) and transmission control ECU assembly)

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Enter the following menus: Body Electrical / Smart Key / Utility / Smart Code Registration
      HINT: The power switch cannot be turned on (IG) more than 10 times. After connecting the Techstream, turn the Techstream on while turning the driver door courtesy light switch on and off repeatedly at 1.5-second intervals or less to continue key registration procedure.
      2. Confirmation of ECU code
      • Perform operation according to prompts on the Techstream screen
      HINT: Mode is automatically selected by the Techstream (new registration mode or add mode).
      3. Verification of unregistered key*1
      1. Hold the unregistered key close to the power switch (for details, refer to REGISTRATION  )
      2. Confirm that the wireless door lock buzzer sounds once (short beep)
      3. Place the unregistered key on the driver seat
      4. Confirm that the wireless door lock buzzer sounds once (short beep)
      4. Registration of ID code
      • Perform operation according to prompts on the Techstream screen
      5. End of registration
      • Finish new key ID code registration
      • *1: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedures again from process 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    2. PROCEDURE "B"

      New key ID registration (when replacing the certification ECU (smart key ECU assembly))

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Enter the following menus: Body Electrical / Smart Key / Utility / Smart Code Registration
      HINT: The power switch cannot be turned on (IG) more than 10 times. After connecting the Techstream, turn the Techstream on while turning the driver door courtesy light switch on and off repeatedly at 1.5-second intervals or less to continue key registration procedure.
      2. Confirmation of ECU code
      • Perform operation according to prompts on the Techstream screen
      HINT: Mode is automatically selected by the Techstream (new registration mode or add mode).
      3. Confirmation of all registered keys*1
      1. Hold the registered key close to the power switch (for details, refer to REGISTRATION  )
      2. Confirm that wireless door lock buzzer sounds once (short beep)
      4. Confirmation of ECU code
      • Perform operation according to prompts on the Techstream screen
      5. Verification of unregistered key*2
      1. Hold the unregistered key close to the power switch (for details, refer to REGISTRATION  )
      2. Confirm that the wireless door lock buzzer sounds once (short beep)
      3. Place the unregistered key on the driver seat
      4. Confirm that the wireless door lock buzzer sounds once (short beep)
      6. Registration of ID code
      • Perform operation according to prompts on the Techstream screen
      7. End of registration
      • Finish new key ID code registration
      • *1: Repeat this process for each key which is not to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedure again from process 1. If the key confirmation procedure for a key is performed, the security indicator light comes on and remains on until all the keys are confirmed.
      • *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedure again from process 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    3. PROCEDURE "C"

      Additional key ID registration

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Enter the following menus: Body Electrical / Smart Key / Utility / Smart Code Registration
      HINT: The power switch cannot be turned on (IG) more than 10 times. After connecting the Techstream, turn the Techstream on while turning the driver door courtesy light switch on and off repeatedly at 1.5-second intervals or less to continue key registration procedure.
      2. Confirmation of registered key*1
      1. Perform operation according to prompts on the Techstream screen

        HINT:

        Mode is automatically selected by the Techstream (new registration mode or add mode)

      2. Hold the registered key close to the power switch (for details, refer to REGISTRATION  )
      3. Confirm that the wireless door lock buzzer sounds once (short beep)
      3. Confirmation of ECU code
      • Perform operation according to prompts on the Techstream screen
      4. Verification of unregistered key*2
      1. Hold the unregistered key close to the power switch (for details, refer to REGISTRATION  )
      2. Confirm that the wireless door lock buzzer sounds once (short beep)
      3. Place the unregistered key on driver seat
      4. Confirm that the wireless door lock buzzer sounds once (short beep)
      5. Registration of ID code
      • Perform operation according to prompts on the Techstream screen
      6. End of registration
      • Finish additional key ID code registration
      • *1: Perform this process for one of the keys which are to be registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the registration procedure again from process 1.
      • *2: Repeat this process for each key which is to be registered for the vehicle. Finish the procedure for each key within 30 seconds. If the procedure for any of the keys has not been finished within the specified time, perform the registration procedure again from process 1. Make sure that only 1 key is in the cabin during the registration procedures. If 2 or more keys are in the cabin simultaneously, electric waves will interfere with each other, preventing normal registration.
    4. PROCEDURE "D"

      Key ID erasure

      HINT:

      Procedure "D" erases all registered key codes except one.

      Process Procedure
      1. Start of erasure
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Enter the following menus: Body Electrical / Smart Key / Utility / Smart Code Erasure
      HINT: The power switch cannot be turned on (IG) more than 10 times. After connecting the Techstream, turn the Techstream on while turning the driver door courtesy light switch on and off repeatedly at 1.5-second intervals or less to continue key registration procedure.
      2. Confirmation of registered key*1
      HINT:
      Select the key that will not be erased.
      1. Perform operation according to prompts on the Techstream screen
      2. Hold the registered key close to the power switch (for details, refer to REGISTRATION  )
      3. Confirm that the wireless door lock buzzer sounds once (short beep)
      3. Confirmation of ECU code
      • Perform operation according to prompts on the Techstream screen
      4. Erasure of ID code
      • Perform operation according to prompts on the Techstream screen
      5. End of erasure
      • Finish key ID code erasure
      • *1: Perform this process for one of the keys which are to be registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the erasure procedure again from process 1.
    5. PROCEDURE "E"

      All key ID erasure

      HINT:

      Procedure "E" erases all the key codes registered in the vehicle.

      Process Procedure
      1. Start of erasure
      1. Connect the Techstream to DLC3
      2. Turn the Techstream on while turning driver door courtesy light switch on and off repeatedly at 1.5-second intervals or less
      3. Enter the following menus: Body Electrical / Smart Key / Utility / Smart Code Rest
      4. Read the "Seed Number" of the Techstream screen and input into TIS
      5. Input the "Pass-Code Number" sent from TIS according to the Techstream screen
      2. Confirmation of ECU code
      • Perform operation according to prompts on the Techstream screen
      3. Erasure of ID code
      • Perform operation according to prompts on the Techstream screen Wait for 15 minutes
      4. End of erasure
      • Finish key ID code erasure
    6. PROCEDURE "F"

      ECU code registration

      Process Procedure
      1. Start of registration
      1. Connect the Techstream to DLC3
      2. Turn the power switch on (IG)
      3. Enter the following menus: Body Electrical / Smart Key / Utility / ECU Communication ID Registration / ID Code Box and Steering Lock
      HINT: The power switch cannot be turned on (IG) more than 10 times. After connecting the Techstream, turn the Techstream on while turning the driver door courtesy light switch on and off repeatedly at 1.5-second intervals or less to continue key registration procedure.
      2. Confirmation of registered key*1
      1. Hold the registered key close to the power switch (for details, refer to REGISTRATION  )
      2. Confirm that the wireless door lock buzzer sounds once (short beep)
      3. Registration of ECU code
      • Perform operation according to prompts on the Techstream screen
      4. End of registration
      • Finish ECU code registration
      • *1: Perform this process for one of the keys which are to be registered for the vehicle. Finish the procedure within 30 seconds. If the procedure has not been finished within the specified time, perform the erasure procedure again from process 1.
    7. PROCEDURE "G"

      ECU communication ID registration

      NOTE:
      • The ECU communication ID should be registered when the ID code box (immobiliser code ECU) is replaced in order to match these ECU communication IDs.
      • The hybrid control system cannot be started unless the ECU communication IDs match.
      • After the registration, pressing the power switch may not start the hybrid control system on the first try. If so, press the power switch again.
      • Clear DTC B2799 (code for power management control ECU (HV CPU) immobiliser communication error) by either of the following:

        - Use the Techstream.

        - Disconnect the cable from the negative (-) auxiliary battery terminal for 30 seconds.

      1. Using SST, connect terminals TC and CG of the DLC3.
        • SST: 09843-18040

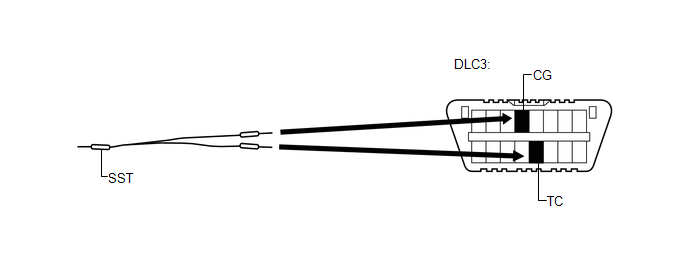

        Fig 2: Connecting Terminals TC And CG Of DLC3
        GTY176964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the power switch on (IG) and leave it as is for 30 minutes.

        HINT:

        Do not start the hybrid control system.

      3. Turn the power switch off and disconnect terminals TC and CG.
      4. Check that the hybrid control system starts and remains READY for more than 3 seconds.
