Section 13 (Engine Cooling System (Service Information)): Fan: Components: Illustration
WARNING: This page is about a different car, the 2010 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

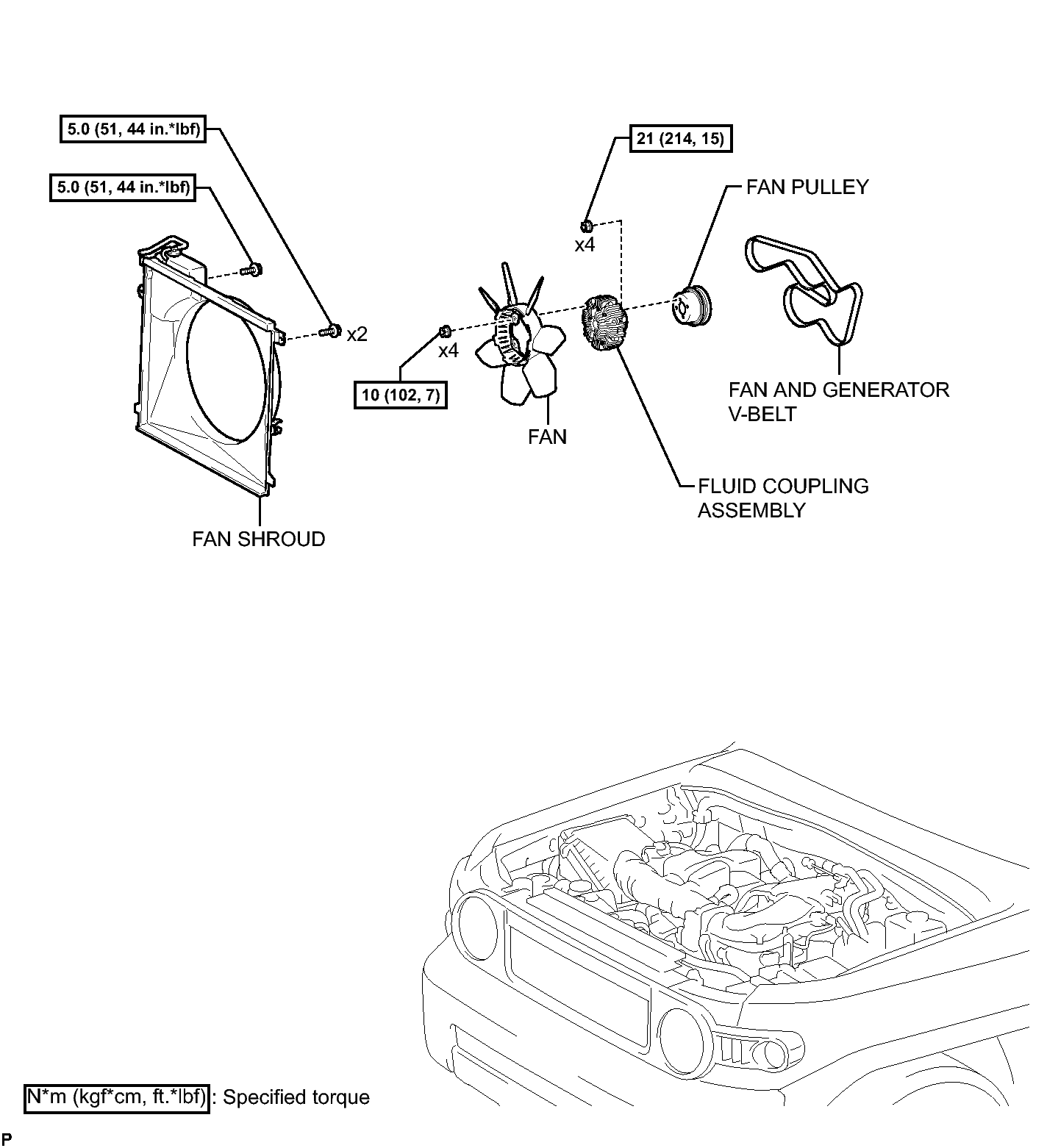

Fig 1: Identifying Fan Replacement Components With Torque Specifications (1 Of 2)
