OEM System Circuits (Except PHV): Horn: Notes

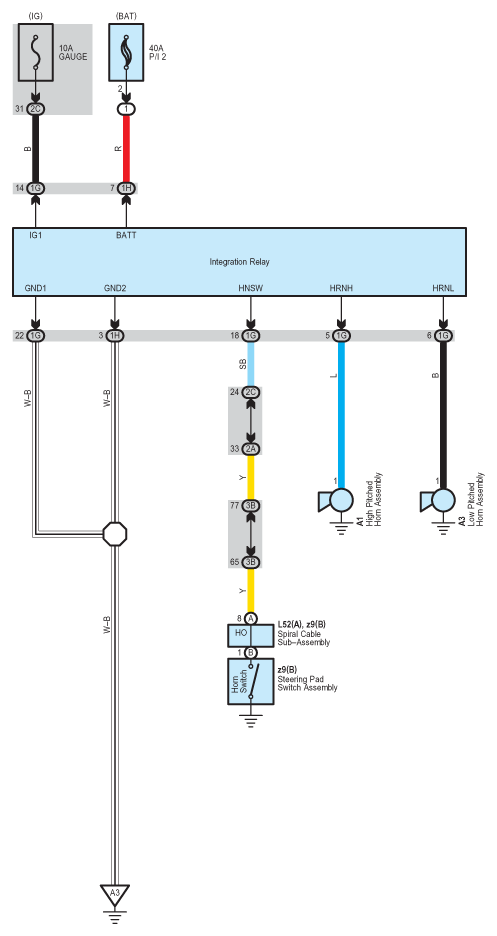

Fig 1: Horn - Circuit Diagram

G07570836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
