OEM System Circuits (Except PHV): DLC3: Notes

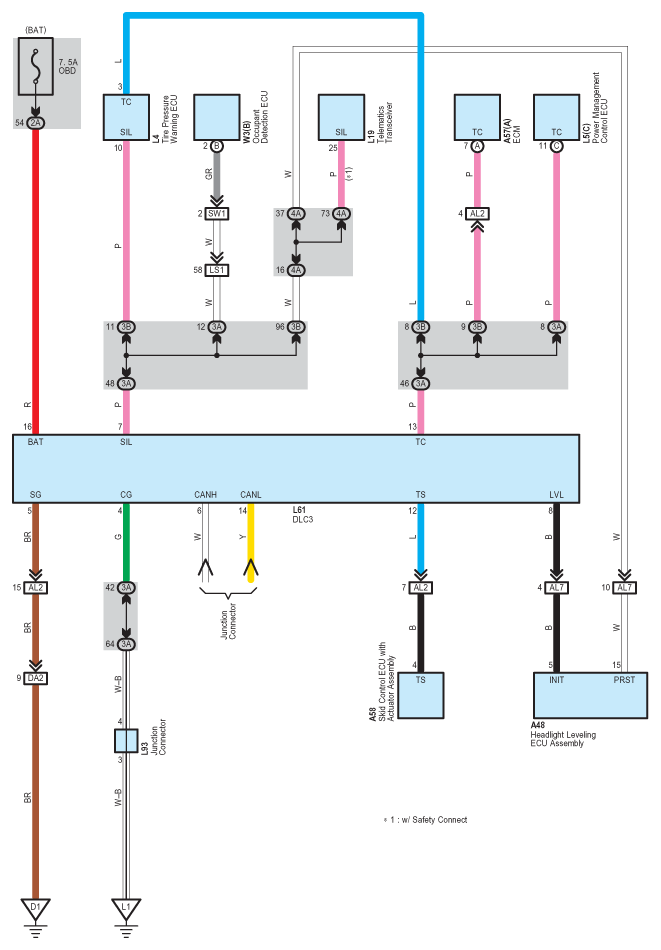

Fig 1: DLC3 - Circuit Diagram

G07570728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
