Yaw Rate Sensor Communication Stop Mode: Wiring Diagram

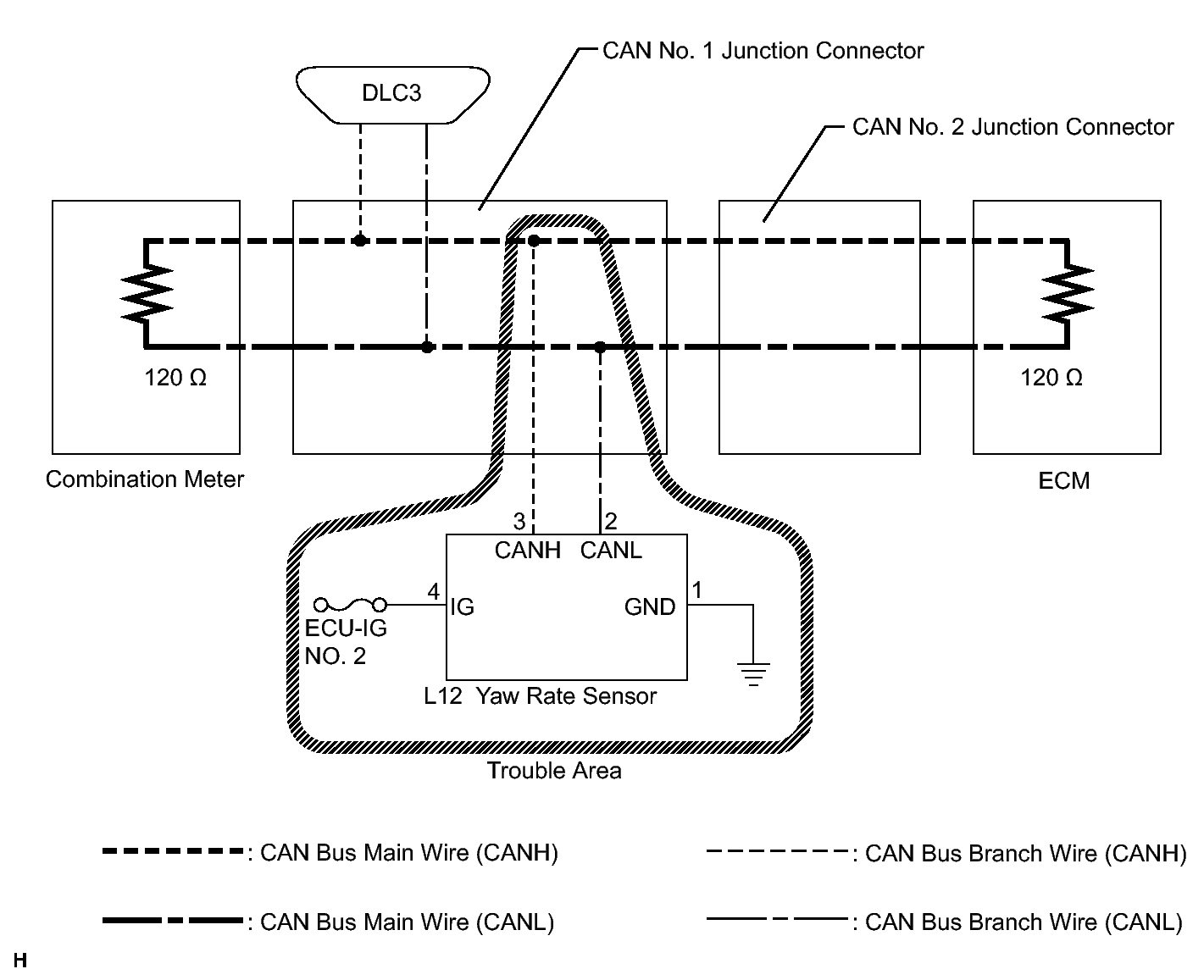

Fig 1: View Of Yaw Rate Sensor Wiring Diagram

GTY220819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
