Transmission Control ECU Communication Stop Mode: Wiring Diagram

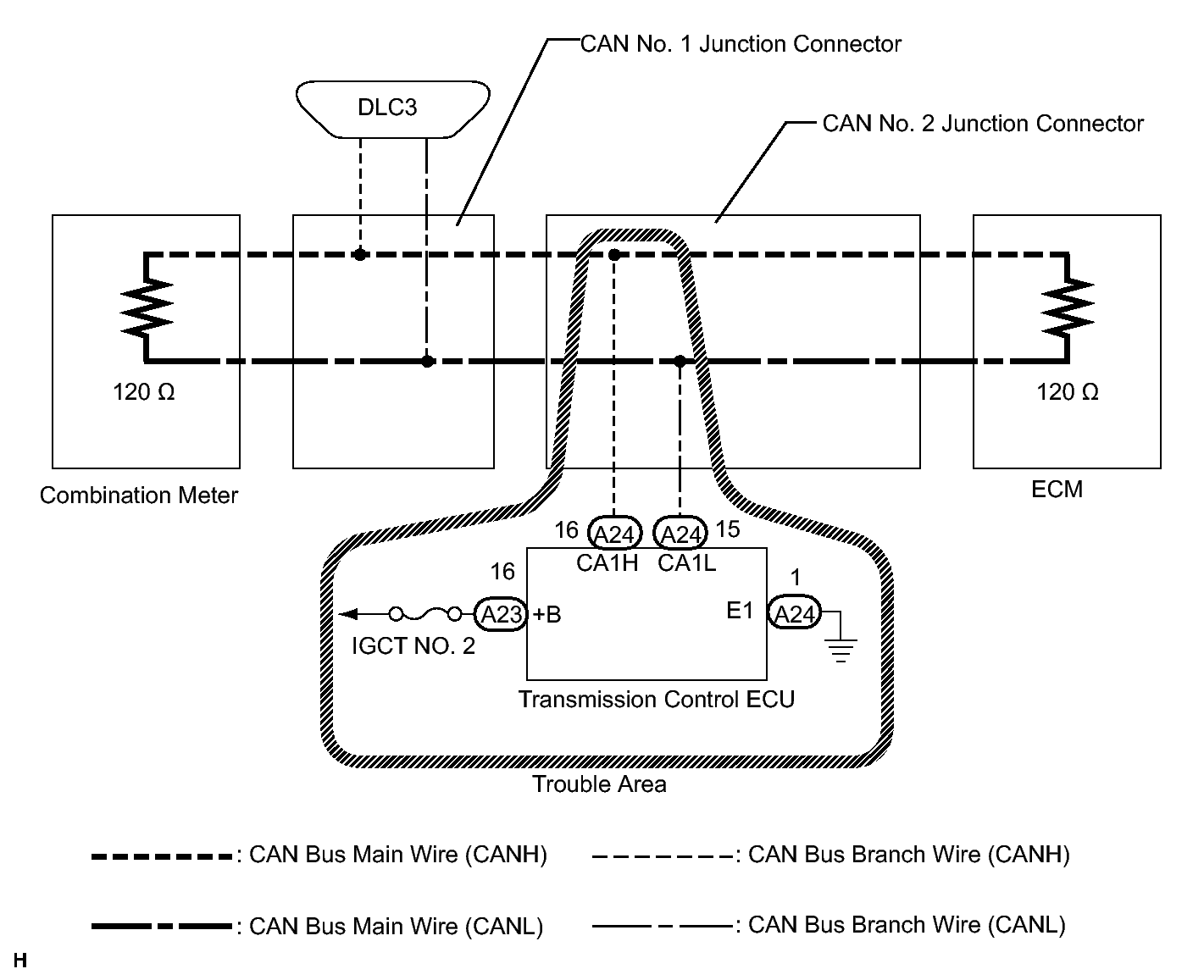

Fig 1: View Of Transmission Control ECU Connector Terminals

GTY217339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
