Brake Pedal: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BRAKE PEDAL PAD
INSTALL BRAKE PEDAL SUB-ASSEMBLY

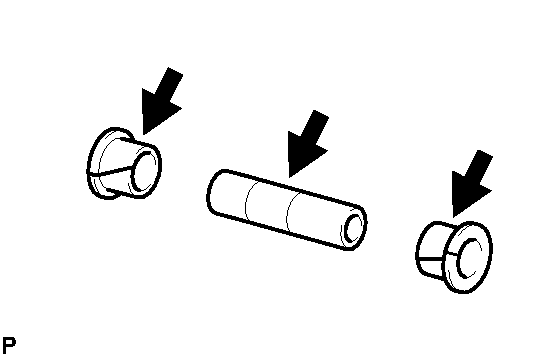

1. Install 2 new brake pedal bushes and the collar to the brake pedal sub-assembly.

  Fig 1: Identifying Brake Pedal Bushes And Collar Components
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Apply lithium soap base glycol grease to the parts indicated by arrows.

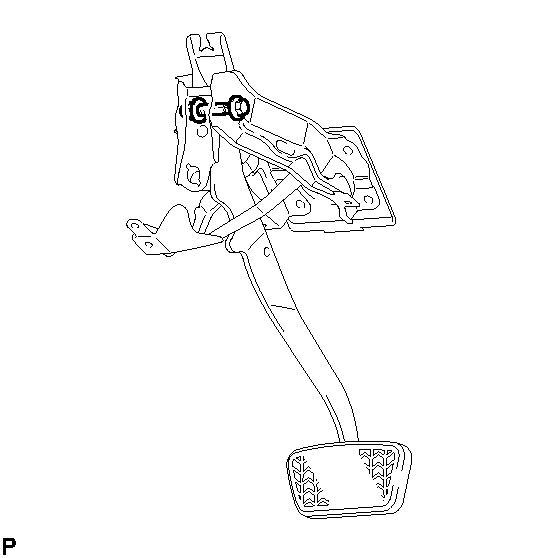

2. Install the brake pedal sub-assembly with the bolt, washer and nut.

  Fig 2: Identifying Brake Pedal Sub-Assembly Components
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)
INSTALL STOP LIGHT SWITCH ASSEMBLY
1. Install the stop light switch mounting adjuster.
2. Insert the stop light switch assembly until the body hits the cushion.
3. Make a quarter turn clockwise to install the stop light switch assembly.
4. Connect the stop light switch connector.
  NOTE:
  - When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.
  - The turning torque for installing the stop light switch assembly
  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

  or less

  HINT:

  After adjusting the brake pedal height, adjust the stop light switch assembly.
