Brake Pedal: Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Turn the stop light switch assembly counterclockwise and remove the stop light switch assembly.

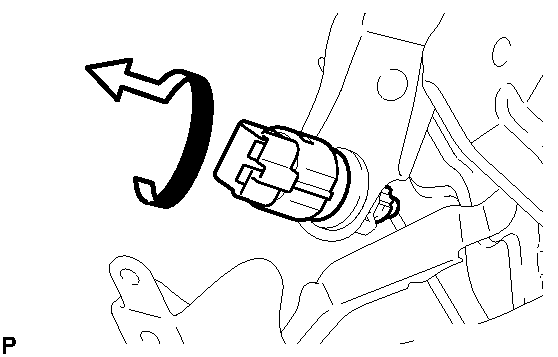

      Fig 1: Removing Stop Light Switch Assembly Component
      GTY168348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the stop light switch mounting adjuster.
  2. REMOVE BRAKE PEDAL SUB-ASSEMBLY
    1. Remove the nut, bolt, washer and brake pedal sub-assembly from the brake pedal support sub-assembly.
      Fig 2: Identifying Brake Pedal Sub-Assembly Component
      GTY201592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 brake pedal bushes and collar from the brake pedal sub-assembly.
  3. REMOVE BRAKE PEDAL PAD
