Sound Signal Circuit Between Navigation Receiver Assembly and Stereo Jack Adapter: Wiring Diagram

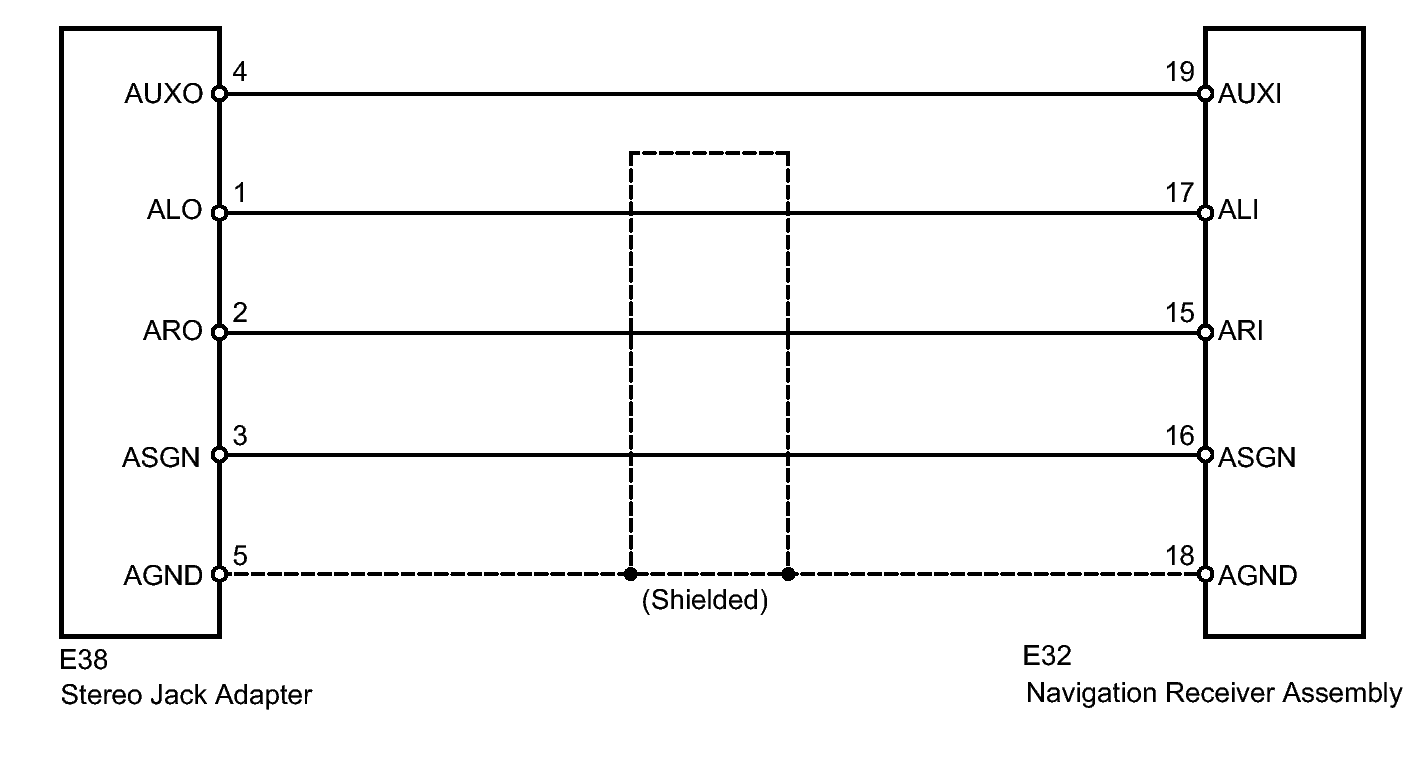

Fig 1: Sound Signal Circuit - Wiring Diagram

GTY247405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
