Steering Wheel: Components: Illustration

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (1 Of 3)
GTY222835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

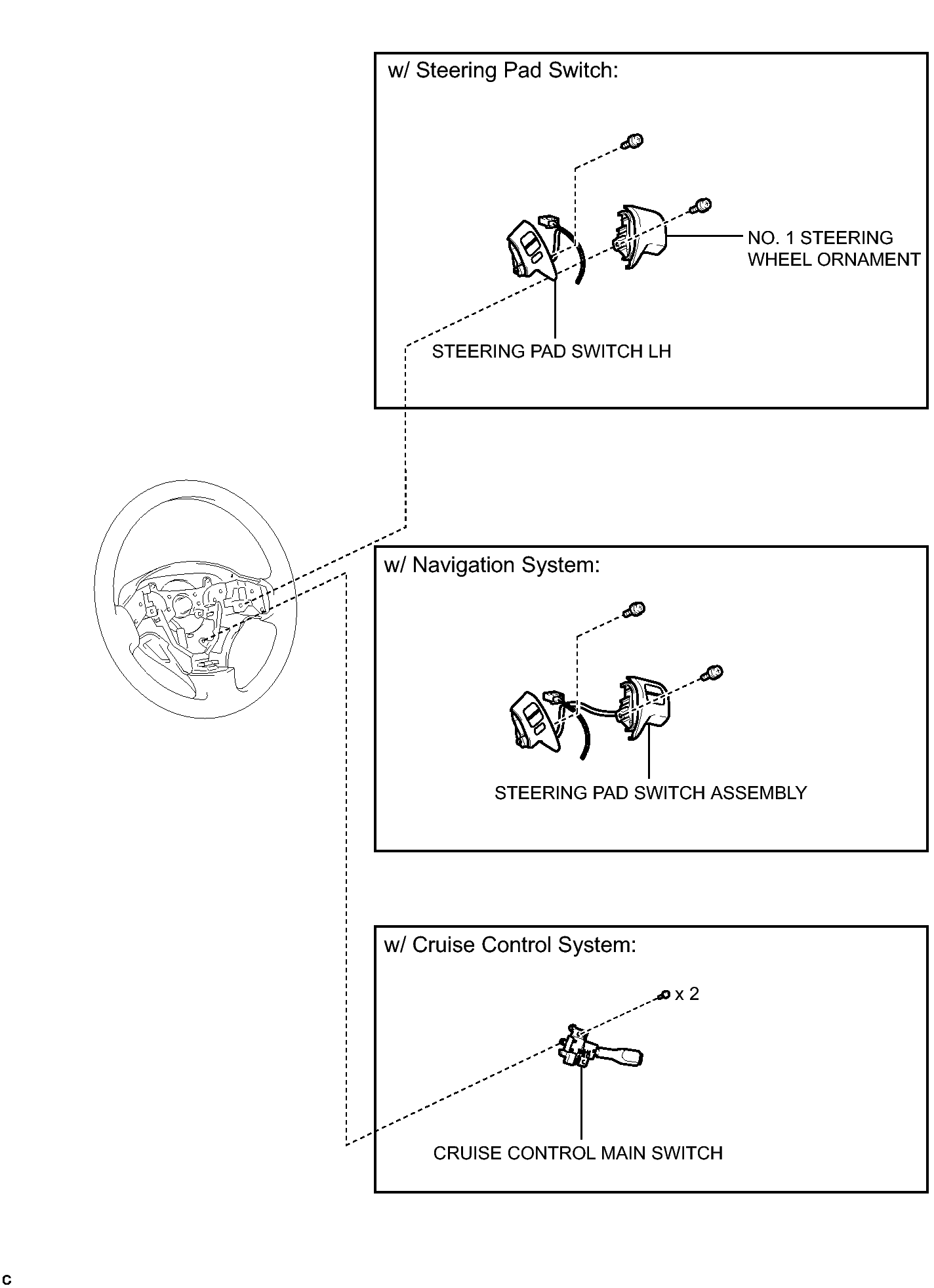

Fig 1: Identifying Steering Wheel Replacement Components (2 Of 3)
GTY232114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

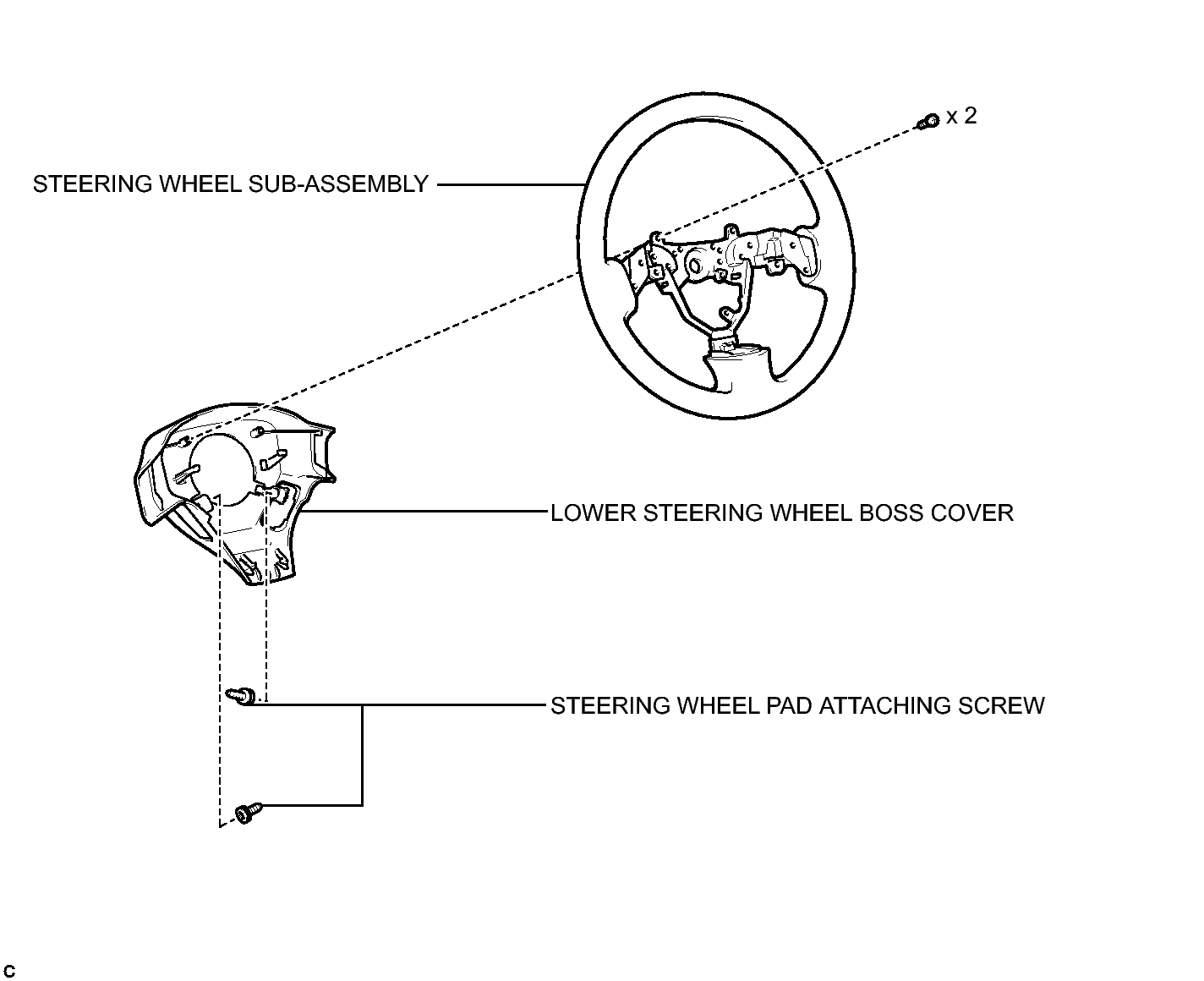

Fig 1: Identifying Steering Wheel Replacement Components (3 Of 3)
GTY244817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
