Parts Location (From 12/2010): Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

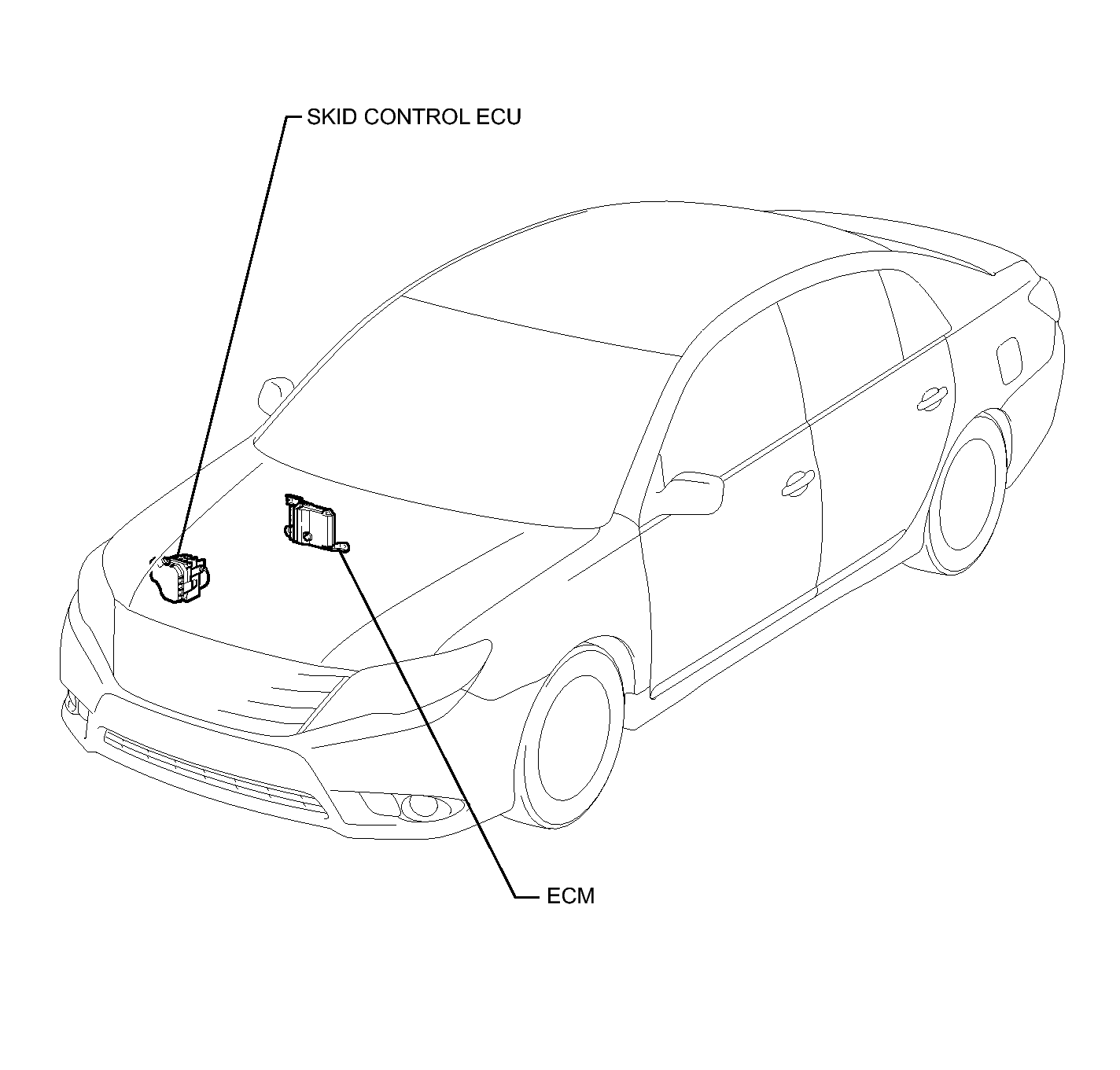

Fig 1: Identifying Can Communication System Component Location (1 Of 2)
GTY307233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Can Communication System Component Location - (With Navigation System) (2 Of 2)
GTY303805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
